UNIVIEW IPC98544EFW-X42-X25-W-VH CCTV攝影機安裝・保養

Name: UNIVIEW IPC98544EFW-X42-X25-W-VH IPC98544EFW-X42-X25-W-VH
Brand: Uniview
SKU: IPC98544EFW-X42-X25-W-VH

產品簡介

Uniview IPC98544EFW-X42-X25-W-VH 為IPC98544EFW-X42-X25-W-VH，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC98544EFW-X42-X25-W-VH 香港價格連安裝報價。

Channel：Channel 1 (Panorama) Channel 2 (Panorama) Channel 3 (Detail)
Sensor：1/1.8" CMOS Color: 0.0005lux (F1.5, AGC ON) IR: 0.0001lux (F
Max Resolution：4 MP
WDR：120 dB
焦距：6 to 150 mm 6 to 150 mm 6 to 252 mm

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

IPC98544EFW-X42-X25-W-VH Uniview IPC98544EFW-X42-X25-W-VH 產品圖片

詳細規格

Channel	Channel 1 (Panorama) Channel 2 (Panorama) Channel 3 (Detail)
Sensor	1/1.8" CMOS Color: 0.0005lux (F1.5, AGC ON) IR: 0.0001lux (F1.5, AGC ON)
Max Resolution	4 MP
WDR	120 dB
焦距	6 to 150 mm 6 to 150 mm 6 to 252 mm
Field of View (V)	36.4° to 1.85° 36.4° to 1.85° 35.62° to 1.23°
Field of View (H)	60.62° to 3.29° 60.62° to 3.29° 59.47° to 2.2°
Optical Zoom	25X 25X 42X
DORI Distance (Lens)	6 ~ 150 mm 6 ~ 150 mm 6 ~ 252 mm 93.1 m to 2327.6 m (305.5 ft. 93.1 m to 2327.6 m (305.5 ft. 88.4 m to 3724.1 m (290.2 ft.
to 7636.4 ft.)	to 7636.4 ft.) to 12218.3 ft.) 37.2 m to 931 m (122.2 ft. to 37.2 m to 931 m (122.2 ft. to 35.4 m to 1489.7 m (116.1 ft. 3054.6 ft.) 3054.6 ft.) to 4887.3 ft.) 18.6 m to 465.5 m (61.1 ft. to 18.6 m to 465.5 m (61.1 ft. to 17.7 m to 744.8 m (58 ft. to 1527.3 ft.) 1527.3 ft.) 2443.7 ft.) 9.3 m to 232.8 m (30.5 ft. to 9.3 m to 232.8 m (30.5 ft. to 8.8 m to 372.4 m (29 ft. to 763.6 ft.) 763.6 ft.) 122
Light On/Off Control	Auto/Manual WH : 80m (262.47 ft.)
Illumination Distance	IR : 150m (492.13 ft.) IR : 150m (492.13 ft.) IR : 500m (1640.42 ft.)
U-code	Support
ROI	Up to 8 areas
視頻碼率	128 Kbps to 16 Mbps
視頻壓縮	H.265, H.264, MJPEG Main Stream: 4 MP (2688 × 1520), max. 30 fps
Frame Rate	Sub Stream: 1080P (1920 × 1080), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps
OSD	Up to 10 OSDs
音訊壓縮	G.711A, G.711U G.711U, G.711A G.711U, G.711A
取樣率	8 kHz, 16 kHz
Edge Storage	MicroSD, up to 512 GB
IGMP, SMTP, IPv6, ICMP, ARP,	IGMP, SMTP, IPv6, ICMP, ARP, IGMP, SMTP, IPv6, ICMP, ARP,
TCP, UDP, DHCP, RTSP, DNS,	TCP, UDP, DHCP, RTSP, DNS, TCP, UDP, DHCP, RTSP, DNS,
DDNS, NTP, UPnP, HTTP,	DDNS, UPnP, NTP, HTTP, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, SSL/TLS, SSH, 802.1x, SNMP, QoS, SSL/TLS, 802.1x, SNMP, QoS, SSL/TLS,
IPv4, RTP, RTCP, RTMP,	SSH, RTCP, IPv4, RTP, RTMP, SSH, IPv4, RTP, RTCP, RTMP,
HTTPS, FTP, QoS	HTTPS, FTP FTP, HTTPS
ONVIF (Profile S, Profile G,	SDK, API, ONVIF (Profile S, SDK, API, ONVIF (Profile S,
Profile T, Profile M), API, SDK	Profile G, Profile T, Profile M) Profile G, Profile T, Profile M) TLS 1.2, TLS 1.3, Password
TLS 1.3, Password protection,	TLS 1.3, Password protection, protection, HTTPS encryption,
Strong Password, HTTPS	Strong Password, HTTPS Basic and Digest
encryption, Export operation	encryption, Export operation Authentication for RTSP,
logs, Basic and Digest	logs, TLS 1.2, Digest WSSE and Digest
安全	Authentication for RTSP, TLS Authentication for HTTP, Authentication for ONVIF, 1.2, Digest SHA256 WSSE and Digest Digest Authentication for
Authentication for HTTP,	Authentication for ONVIF, HTTP, Digest SHA256
WSSE and Digest	Basic and Digest Authentication for HTTP,
Authentication for ONVIF	Authentication for RTSP Strong Password
瀏覽器	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
用戶管理	Up to 32 users. 3 user levels: administrator, common user and operator
Pan Range	-10° ~ 190° -10° ~ 190° 360°
水平速度	0.1°/s ~ 80°/s 0.1°/s ~ 80°/s 0.1°/s ~ 180°/s
Tilt Range	-9° ~ 90° -9° ~ 90° -15° ~ 90°
垂直速度	0.1°/s ~ 80°/s 0.1°/s ~ 80°/s 0.1°/s ~ 180°/s
Number of Presets (IPC)	1024
Maximum Bitstream	35
Maximum Bandwidth	50 Mbps
供電	DC48V±25%
功耗	Max. 88 W
尺寸	523mm270mm630mm
重量	14.41Kg
Working Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
防雷	6 KV
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	7/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet
TR-WE45-S-IN	TR-CE45-S-IN TR-UP08M-A-IN
Tiangong Integrated Machine Wall Mount	Tiangong Integrated Machine Pendent Tiangong Integrated Machine Pole
Bracket	Mounting Bracket Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

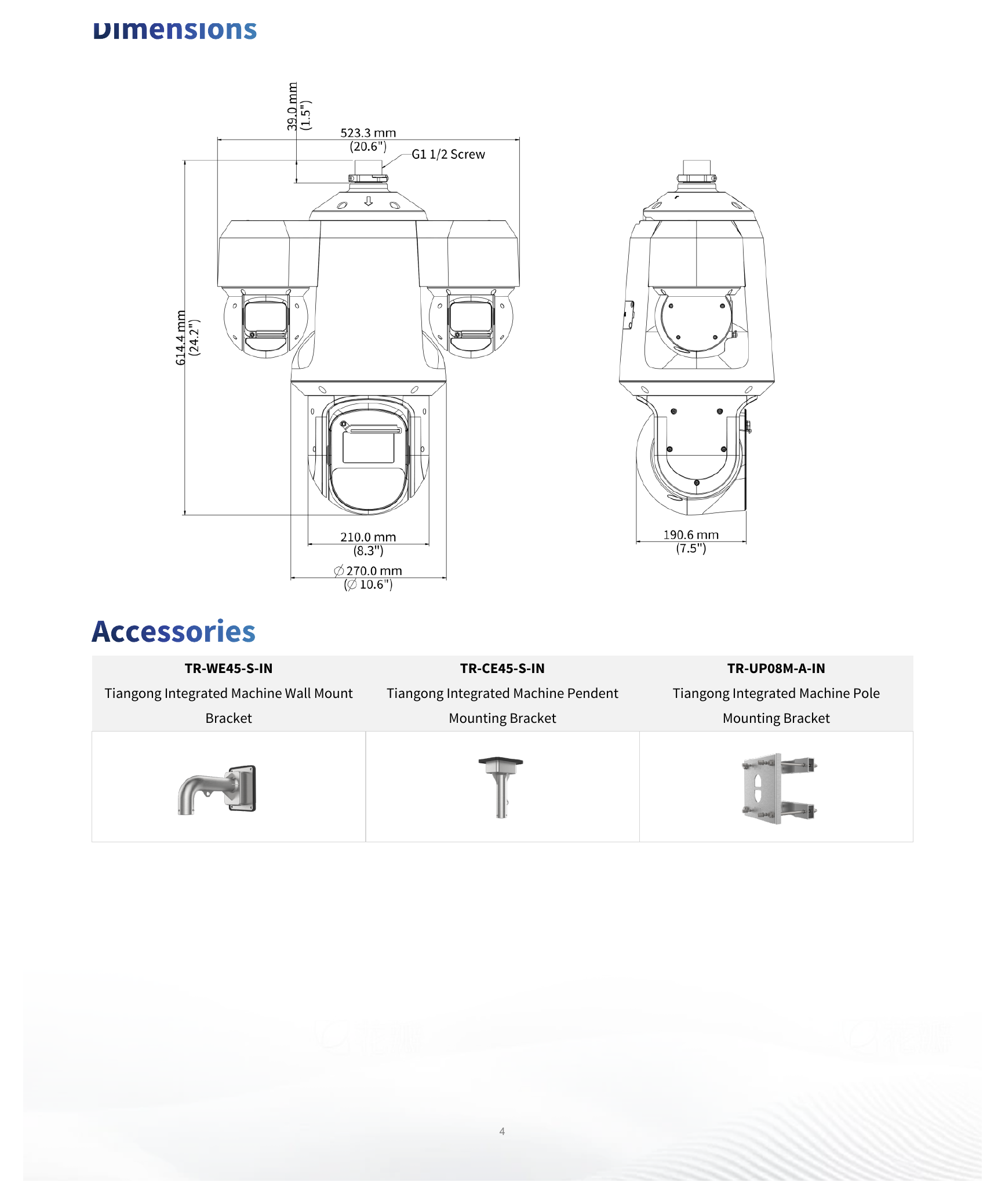

外形尺寸

523mm*270mm*630mm｜重量 14.41Kg｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC98544EFW-X42-X25-W-VH 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC98544EFW-X42-X25-W-VH Uniview IPC98544EFW-X42-X25-W-VH亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

常見問題

IPC98544EFW-X42-X25-W-VH 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC98544EFW-X42-X25-W-VH 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

IPC98544EFW-X42-X25-W-VH 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：焦距方面，IPC98544EFW-X42-X25-W-VH 係 6 to 150 mm 6 to 150 mm 6 to 252 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；ROI方面，IPC98544EFW-X42-X25-W-VH 係 Up to 8 areas，PKC1150-4-Z28-C-P 係 Support, up to 8 areas；重量方面，IPC98544EFW-X42-X25-W-VH 係 14.41Kg，PKC1150-4-Z28-C-P 係 0.9kg。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
