Uniview IPS-HC264-HDX4-IR-I1 為IPS-HC264，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPS-HC264-HDX4-IR-I1 香港價格連安裝報價。
| Max Resolution | 4 MP |
|---|---|
| Sensor | 1/1.8" CMOS Colour:0.0005 lux (F1.6, AGC ON) Colour:0.0005 lux (F1.6, AGC ON) |
| 最低照度 | B/W:0.0003 lux (F1.6, AGC ON) 0 lux with Light 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 140 dB Pan: 0° to 360° |
| Adjustment Angle | Tilt: 0° to 90° Rotate: 0° to 360° |
| S/N | >56 dB |
| Case Type | Bullet |
| 焦距 | 8 to 32 mm |
| Digital Zoom | 16X |
| Optical Zoom | 4X |
| Iris | F1.6 |
| Field of View (H) | 42.6° to 15.2° |
| Field of View (V) | 23.5° to 8.9° |
| Field of View (D) | 52.4° to 17.9° |
| 光圈類型 | P-iris |
| DORI Distance (Detect) | 124.1m(407.3ft)~496.6m(1629.1ft) |
| DORI Distance (Observe) | 49.7m(162.9ft)~198.6m(651.6ft) |
| DORI Distance (Recognize) | 24.8m(81.5ft)~99.3m(325.8ft) |
| DORI Distance (Identify) | 12.4m(40.7ft)~49.7m(162.9ft) 40 m (131.2 ft.) |
| Illumination Distance (IR) | 40 m (131.2 ft.) |
| Wavelength | 850 nm |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| 隱私遮蔽 | Up to 8 areas (8 blacks / 8 mosaics) |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4MP(2688*1520), Max 60fps |
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps; |
| Frame Rate-Third Stream | D1 (720*576), Max 60fps |
| Frame Rate Recommendation | 2688*1520@60fps+1080P@60fps+D1@60fps |
| White Balance | Auto,Outdoor,Fine Tune,Sodium Lamp,Locked,Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal,Flip Vertical,Flip Horizontal,180°,90°Clockwise,90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Smart IR | Support N/A |
| 除霧 | Digital defog Up to 4 car lanes can be set: Support pedestrian, motor vehicle and non motor vehicle image |
| ANPR | capturing; Support recognizing car license plate more accurately by choosing different country/ region; Support attribute collection: plate number, vehicle type, vehicle color, vehicle brand North America: United States, Canada;South America: Mexico, Brazil; EU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bo |
| Supports Multiple Countries | Pacific: South Korea, Indonesia, Malaysia, Singapore, Viet Nam, Bangladesh, India, Nepal, Philippines, Thailand, Cambodia;Middle East: Iraq, Saudi Arabia, United Arab Emirates, Egypt, Qatar, Tunisia, Yemen; Kuwait, Oman, Bahrain; Middle Asia: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan |
| Capture Speed Range | ≤ 120 km/h |
| Basic Detection | Motion detection,Audio detection,Tampering alarm Watermark,IP Address Filtering,Access Policy,ARP Protection,RTSP Authentication,User Authentication,HTTP authentication,Alarm input,Alarm output |
| 音訊壓縮 | G.711U,G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR,NAS(NFS) IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Home Position | Support |
| Number of Presets | 1024 |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Support, built-in mic*2 |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC |
| EMC | 61000-3-2: 2019+A1: 2021, EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01 ) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| 供電 | DC12V(±25%) , PoE+ (IEEE 802.3at) |
| 功耗 | Max 19W Max 21W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | 406 x 125 x 130mm(16.0” x 4.9” x 5.1”) |
| 重量 | 1.86Kg(4.10lb) |
| Working Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support Sun shield：Plastic |
| 材質 | Front cover：Metal Body：Metal |
| Heater | Support |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| OSD Font | Vector |
| OSD Color | Support |
| OSD Character Number | 40 |
| Corridor Mode | Support |
| TR-UP06-C-IN-V2 | TR-UC08-C-V2 TR-UV06-A-IN Pole Mounting Bracket for Bullet Junction |
| Bullet&Dome Corner Mounting Bracket | 3D Adjustable Mounting Bracket Box Only TR-UP06-IN Universal Pole Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

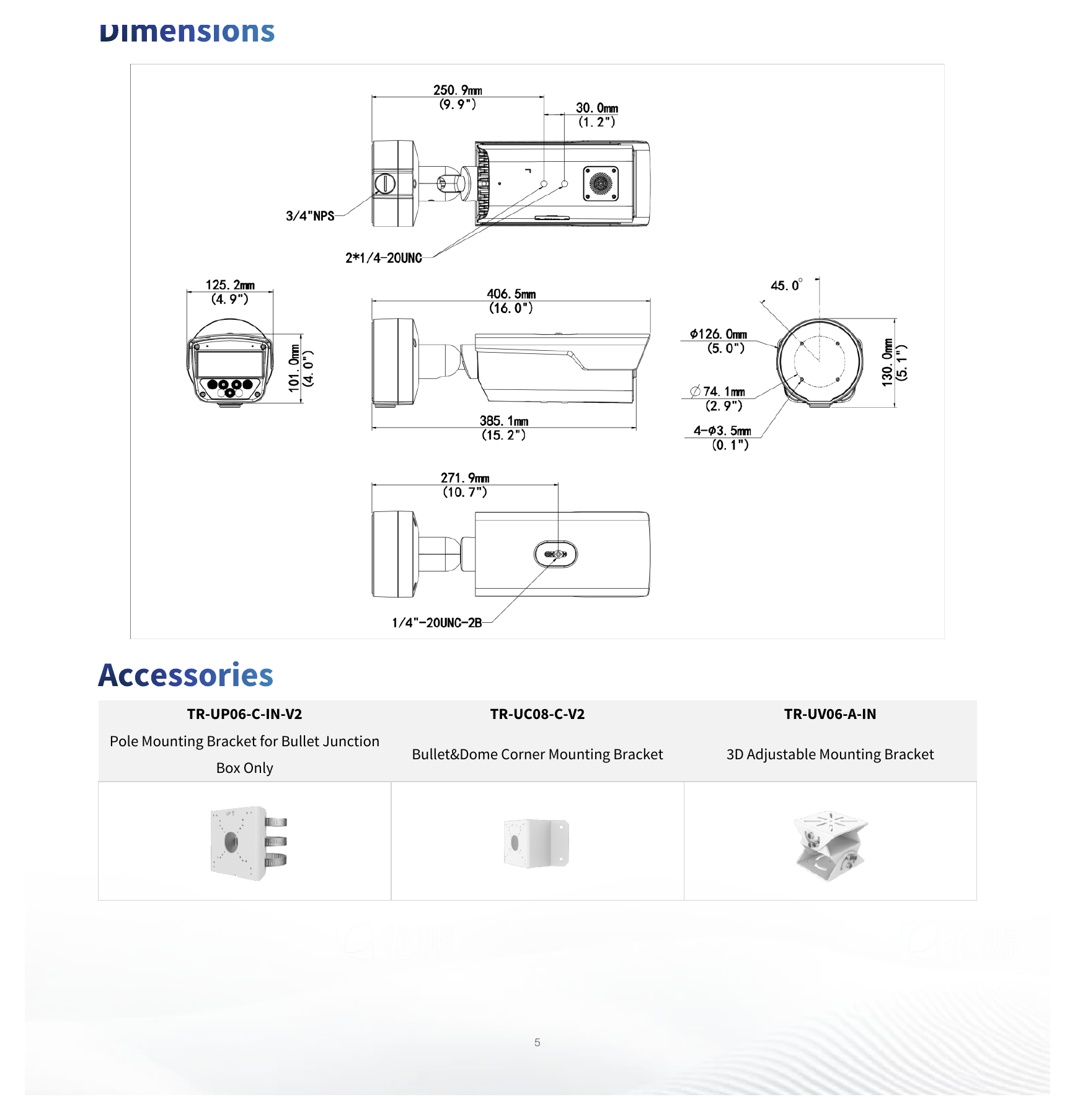

406 x 125 x 130mm(16.0” x 4.9” x 5.1”)｜重量 1.86Kg(4.10lb)｜Unit: mm
IPS-HC264-HDX4-IR-I1 Uniview IPS-HC264亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPS-HC264-HDX4-IR-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Shutter方面，IPS-HC264-HDX4-IR-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPS-HC264-HDX4-IR-I1 係 8 to 32 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，IPS-HC264-HDX4-IR-I1 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPS-HC264-HDX4-IR-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
