Uniview ISW5000-8GT4GP-POE-IN 為ISW5000-8GT4GP-POE-IN，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 ISW5000-8GT4GP-POE-IN 香港價格連安裝報價。
| Hardware | Specification |
|---|---|
| Standards | IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at 8*10/100/1000Mbps RJ45 Ports 4*1000Mbps SFP Slots |
| 交換容量 | 24Gbps |
| Jumbo Frame | 9KBytes |
| Forwarding performance | 17.86Mpps |
| MAC | 8K |
| Transfer Mode | Store-and-forward Max capacity: 120W |
| Max.PoE Power | Max capacity for single port: 30W Mode A 1/2（-），3/6（+） |
| Dimensions (W×D×H) | 145*109*62.3mm |
| 工作溫度 | -30°C to 65 °C |
| 工作濕度 | 5% ~ 95% non-condensing |
| Storage Humidity | 0% ~ 95% non-condensing |
| 指示燈 | PWR, LNK/ACT |
| Electrostatic Standard | Contact ±6KV, Air ±8KV |
| 防雷 | Differential mode ±2KV Common mode ±4KV DC:48-57V, Adapter: AC100-240V, 50/60Hz MAC Aging Time |
| MAC Address | MAC Filter MAC Notification Console/Telnet/SSH Http/Https、SSL/TLS FTP/TFTP Syslog SNMP(v1/v2c/v3)、SNMP Trap SNTP/NTP CPU protect Software/Hardware watchdog Firmware Upgrade/Backup Ping/Traceroute Bandwidth Control Flow Control |
| Port Config | EEE MTU CFM(802.1ag) EFM OAM(802.3ah) DDM Storm Control Port Isolation Port Security Virtual Cable Test ULDP LLDP(802.1ab) LLDP-MED Static LACP(802.3ad) Load Balance(src-mac/dst-mac/src-ip/dst-ip) Max groups and ports per group VLAN(802.1Q 4K) Access/Trunk/Hybrid Private VLAN VLAN Filter MAC-based VLAN Protocol-based VLAN IP Subnet-based VLAN Voice VLAN GVRP/GMRP QinQ/Selective-QinQ/Flexible QinQ |
| Spanning Tree | MSTP Support 64 instance BPDU Guard/Root Guard/BPDU Tunnel Static ARP ARP Scanning Prevention ARP Spoofing Prevention |
| ARP | ARP Guard Gratuitous ARP Dynamic ARP Inspection ARP Quantity Control Anti ICMP Attack |
| ICMP | ICMP Rate Limit ICMP Unreachable Drop Static Route Route Aggregation |
| Multicast VALN | Multicast VALN |
| IGMP | IGMP SNOOPING V1/V2/V3 Fast Leave IGMP Proxy DHCP Server DHCPv4 Client/BOOTP |
| DHCP | DHCPv4 Relay DHCPv4 Snooping DHCPv4 Option 82/43/60/61/67 |
| IPv6 Basic | IPv6 ND Snooping DHCPv6 Relay DHCPv6 Snooping |
| DHCPv6 | IPv6 SAVI Security RA DHCPv6 Server |
| IPv6 Unicast Routing | Static Route |
| IPv6 Multicast Routing | MLD v1/V2 Snooping SNMP over IPv6 Support HTTP over IPv6 Support SSH over IPv6 Support DNS over IPv6 Support IPv6 ping/traceroute Support IPv6 Telnet Support IPv6 Radius+ Support IPv6 Tacacs+ Support IPv6 SNTP/NTP Support IPv6 FTP/TFTP Support IPv6 IPSec Support IPv6 ACL Trust COS/DSCP Trust Port |
| Scheduling | WRR WDRR Based on VLAN Based on COS/DSCP Aggregate PolicyMap Ingress PolicyMap CAR Stream Shaping(leak algorithm) Ingress Policing COS/802.1p Priority IP Precedence IPv4 DSCP/IPv6 DSCP drop-precedence internal-priority Ingress/Egress Rewrite DSCP to DSCP mapping DSCP to DP mapping |
| Queuing | DSCP to Queue mapping COS to DP mapping COS to Queue mapping SIP/DIP IP Protocol IP Priority(DSCP,TOS, Precedence) TCP,UDP src,dst Port SRC/DST MAC VLAN COS Tag/Untag |
| IP-MAC ACL | MAC-ACL and IP-ACL |
| User-defined ACL | Base on user defined profile Based on time period ACL |
| ACL Features | ACL on VLAN Based on ACL Stream Port Based Authentication Support EAPoR MAC based Authentication Guest VLAN Based on Port Authentication Based on MAC Authentication Based on Port Based on VLAN Based on Port Based on VLAN |
| Access Management | Based on source mac and IP address TCP Flag TCP Flagment IP Segment ICMP |
| TACACS+ | Standard Support Standard Support Client, Support MD5 |
| SSL | Openssl 1.1.0 |
| MRPP | Compatiable ERRP Uplink Protection Protocol Smart Link/Monitor Link |
| ULSM | Uplink State Monitor Support one to one, multi to one Port based mirror, support ingress, egress, and both CPU based mirror Flow based mirror RSPAN ON/OFF Config |
| PoE Management | Alive Checking for PD 7/24 On/Off Scheduling Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

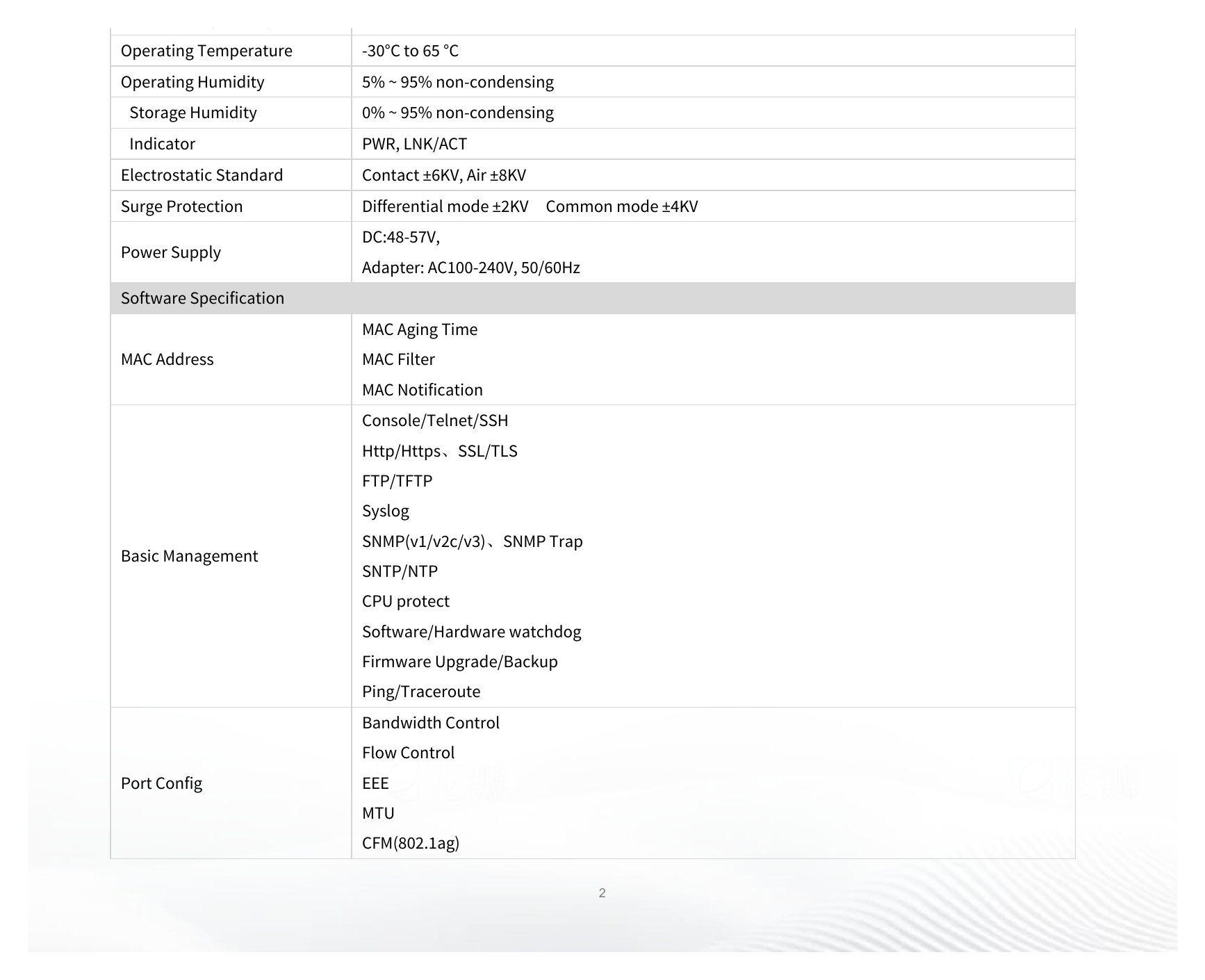

詳見圖示｜Unit: mm
ISW5000-8GT4GP-POE-IN Uniview ISW5000-8GT4GP-POE-IN亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，ISW5000-8GT4GP-POE-IN 原廠行貨連保養，提供上門安裝、佈線及網絡設定一站式服務，全港 32 區均有服務。
詳細規格請參閱上方規格表；我們會按現場點位數量、距離及功率需求設計網絡架構，並提供整體方案報價。
原廠行貨保養，工程另設保養期；網絡設備我們會預先設定好即插即用，日後有問題可遠程協助或上門檢查。
兩者主要規格分別：交換容量方面，ISW5000-8GT4GP-POE-IN 係 24Gbps，NSW6630-48XP8CQ-IN 係 2.56Tbps；Forwarding performance方面，ISW5000-8GT4GP-POE-IN 係 17.86Mpps，NSW6630-48XP8CQ-IN 係 1012Mpps；Dimensions (W×D×H)方面，ISW5000-8GT4GP-POE-IN 係 145*109*62.3mm，NSW6630-48XP8CQ-IN 係 444mm×375mm×44mm。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 NSW6630-48XP8CQ-IN 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 ISW5000-8GT4GP-POE-IN 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱網絡 WiFi安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 ISW5000-8GT4GP-POE-IN Uniview ISW5000-8GT4GP-POE-IN供貨連專業安裝服務（裝WIFI、裝ROUTER、裝FIREWALL），熱門地區包括：上水網絡佈線 WiFi 工程、中環網絡佈線 WiFi 工程、九龍城網絡佈線 WiFi 工程、九龍灣網絡佈線 WiFi 工程、佐敦網絡佈線 WiFi 工程、元朗網絡佈線 WiFi 工程、北角網絡佈線 WiFi 工程、土瓜灣網絡佈線 WiFi 工程。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 ISW5000-8GT4GP-POE-IN 香港價格連安裝報價。
ISW5000-8GT4GP-POE-IN Uniview ISW5000-8GT4GP-POE-IN適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
餐廳、食肆、酒樓裝網絡系統，POS 收銀與落單系統連網、顧客 WiFi、Router 路由與頻寬管理，繁忙時段不卡頓，網絡安裝上門報價。一站式勘測安裝，沙田、大圍各區即日約見報價。
WhatsApp 查詢 →學校、補習社、培訓中心裝網絡系統，課室校園 WiFi 覆蓋、VLAN 分區、內容過濾防火牆、核心交換機與綜合佈線，網絡安裝上門報價。免費評估方案、即時報價，元朗、上水一帶歡迎查詢。
WhatsApp 查詢 →診所、醫療中心、化驗所裝網絡系統，診症系統連網、WiFi、防火牆與內網隔離保障病歷安全、Router 路由部署，網絡安裝上門報價。免費上門勘察、明碼實價報價，葵涌、荃灣一帶即日約期。
WhatsApp 查詢 →物業、管理處、屋苑裝網絡系統，管理處連網、公共區 WiFi、監控與門禁連網、核心交換機與光纖骨幹，網絡安裝一站式上門報價。全港覆蓋上門安裝，將軍澳、東涌各區歡迎致電查詢。
WhatsApp 查詢 →銀行、財務、找換店裝網絡系統，內網隔離、企業級防火牆、VPN 加密、專線備援與合規佈線，高保安網絡安裝上門報價。免費上門度尺、按規模報價，深水埗、長沙灣項目即約勘察。
WhatsApp 查詢 →政府部門、公營機構裝網絡系統，內網外網實體隔離、企業防火牆、VLAN 分區、合規佈線與審計記錄，網絡安裝一站式上門報價。專業團隊上門評估，黃大仙、鑽石山場地歡迎洽談報價。
WhatsApp 查詢 →查看更多網絡 WiFi適用場景，請參閱 網絡 WiFi安裝工程。
如需整套網絡 WiFi方案，請參閱 網絡 WiFi安裝工程。
