| Video decoding | H.264, H.265 |
|---|
| Camera connection | Max 16 channels |
|---|
| Image composition | Supports composition of 2, 3, 4, or 6 images |
|---|
| Image operations | Image storage, search, view, export, and uploads |
|---|
| Image OSD | Text OSD including plate number, time, location, etc., on single or composite images Supplied with 1*4TB hard disk Expansion to 4 * 3.5” SATA disk, up to 8TB each Dual NICs with support for dual-network isolation dual-network interconnection. |
|---|
| 網絡接口 | NIC1: 16 * Gigabit Ethernet interfaces (RJ45). NIC2: 2 * Gigabit optical interface, 4 * Gigabit Ethernet interfaces (RJ45). |
|---|
| USB 接口 | 2 * USB 3.0, compatible with USB 2.0 |
|---|
| Serial interface | 2 x RS-232, 2 x RS-485 |
|---|
| 警報輸入 | 2 x alarm input (phoenix connector) |
|---|
| 警報輸出 | 2 x alarm output (phoenix connector) |
|---|
| 電源輸出 | DC12V, 500mA |
|---|
| Power input | DC12V, 10A < 30W (with 1 HDD, and heating module off) |
|---|
| 功耗 | < 85W (with 1 HDD, and heating module on) < 110W (with HDD fully configured, and heating module on) |
|---|
| 工作溫度 | -30ºC to 70ºC |
|---|
| 工作濕度 | 5% to 95% (noncondensing) With 1 supplied HDD: < 7kg Fully loaded with HDD: < 9kg |
|---|

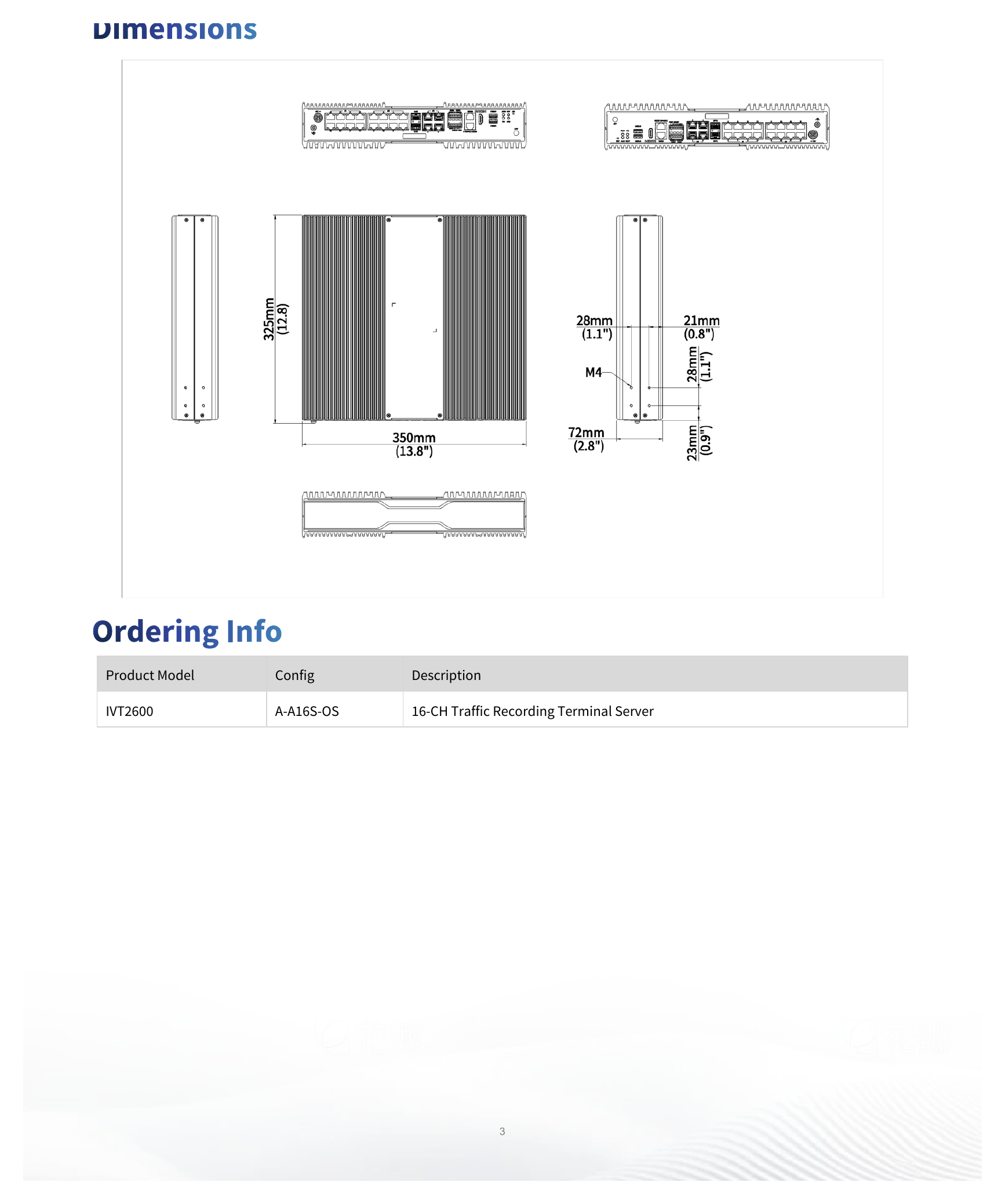

| 尺寸 | 350mm(W) × 320mm(D) × 72mm(H) CE EMC： EN 55032: 2015+A11:2020+A1:2020 |
|---|
| EMC | EN 55035: 2017+A11:2020 EN 61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021 |
|---|
| Safety | CE LVD：EN IEC 62368-1:2020+A11:2020 |
|---|
| Product Model | Config Description |
|---|
| IVT2600 | A-A16S-OS 16-CH Traffic Recording Terminal Server Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
