| IEEE802.1d STP | Support IEEE802.1d STP |
|---|
| IEEE802.1w RSTP | Support IEEE802.1w RSTP Support standard 802.1s MSTP, MSTP Support 64 MSTP instances Support port fast, |
|---|
| STP Optional Features | Support BPDU filter, Support BPDU guard, Support hello-time, Support max age, Support forward delay, Support max hops, Support TC ignore Support port fast, |
|---|
| MSTP Port Optional Features | Support BPDU filter, Support BPDU guard, Support TC guard, Support TC filter, Support Auto edge, Support TC protection, Support compatibility mode |
|---|
| Support Flow-Balance Methoddst-ip | Destination IP address; dst-mac Destination |
|---|
| MAC address; src-dst-ip | Source and destination IP address; src-dst-mac Source and |
|---|
| destination MAC address; src-ip | Source IP address; src-mac Source MAC address, Support AP member port that is included in each AP. |
|---|
| Storm Control | Support multicast storm control, Support control granularity (percentage and kbps are values for 64-byte datagram) 64 kbps, Support broadcast storm control, Support unicast storm control Support Many-to-one mirror, Support Stream-based mirroring, Support number of mirror groups 4 Support gentries MAC address numbers 8K, Support static MAC address numbers 1024, Support filtering MAC address numbers |
|---|
| LLDP | Support LLDP Support ONVIF detect, Support ONVIF server Support IGMP snooping groups, |
|---|
| IGMP Snooping | Support IGMP V1, V2 snooping, Support source IP check, Support multicast policy and filtering, Support IGMP fast Leave Support egress speed limit granularity, Support Ingress speed limit, Support egress speed limit Support Ping, Support traceroute |
|---|
| ACE Capacities | Support the input direction is associated with the physical port Support QoS hardware queues, Support determine the exit queue according to 802.1p, DSCP, port, Support Stream-based 802.1p Re-marking, Support Stream-based queue maps, Support SP, Support WRR, Support RR, Support WFQ Support Mac filtering time, |
|---|
| Port Security | Support White-list data, Support clear Mac address table, Support Mac address binding, Support max Mac numbers settings, Support blacklist data, Support violation mode |
|---|
| Port Isolation | Support |
|---|
| LOOPBACK | Support |
|---|
| DAI | Support software DAI entries |
|---|
| SNMP | Supporting version (SNMPV1, V2c, V3) |
|---|
| Web Management | Support HTTP access |
|---|
| RMON | Support RMON (1, 2, 3, 9) |
|---|
| System Upgrade | Support system upgrade or page upgrade via TFTP |
|---|
| Save Configuration | Support save configuration |
|---|
| Configuration Management | Support Import, export, backup configuration, restore factory configuration |
|---|
| Syslog/Debug | Support Syslog/Debug |
|---|
| Security Function | Support |
|---|
| Basic Characteristics | Support login authentication (password, none) Support static password encryption transmission, storage, Support strong password and password minimum length check Support radius, Support specify multiple groups of servers IP Support specify multiple groups of servers IP, Support Tacacs+ |
|---|
| SSH | Support SSHv2.0 |
|---|
| Anti-dos Attack | Support Interrupting land attack packets and illegal TCP packets Support 802.1X, Support port base, Support Mac base, Support MAB, Support multiple account switching Support defense gateway ARP spoofing |
|---|
| IP Source Guard | Support IP source guard |
|---|
| CPP | Support hardware CPP |
|---|
| ARP Check | Support leverage IP+MAC data binding of IP source guard, Support IP + MAC data binding using DHCP snooping, Support leverage 1X IP+MAC data binding, Support trusted ARP |
|---|
| DHCP Relay | Support allow configuration of the number of servers Support Option82, Support trust port configuration, Support IP, MAC binding table(IP Source Guard), Support bind to logical ports (including physical interfaces), Support software binding database capacity, Support bind to VLAN Support binding table configuration, Support address pool configuration Support Telnet, Support maximum number of conne |
|---|
| TFTP | Support TFTP client Support FTP server, Support FTP client Support delete ERPS loop, Support ERPS loop configuration, Support ERPS time configuration Support LACP configuration, Support Load-Balance Method; dst-ip Destination IP |
|---|
| addressdst-mac | Destination MAC address; src-dst-ip Source and destination IP |
|---|
| Static And Dynamic LACP Link | address; src-dst-mac Source and destination MAC address; src-ip Source IP address; |
|---|
| Aggregation | src-mac Source MAC address, Support link aggregation groups, Support max link aggregation numbers of each link aggregation group, Support link aggregation port configuration |
|---|
| Hardware | Specification |
|---|
| Ports Type | 24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports |
|---|
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x |
|---|
| 交換容量 | 56 Gbps |
|---|
| Forwarding performance | 41.66Mpps |
|---|
| Packet Buffer | 4 M bit |
|---|
| MAC | 8K |
|---|
| Dimensions (W×D×H) | 440 × 208 × 44 mm |
|---|

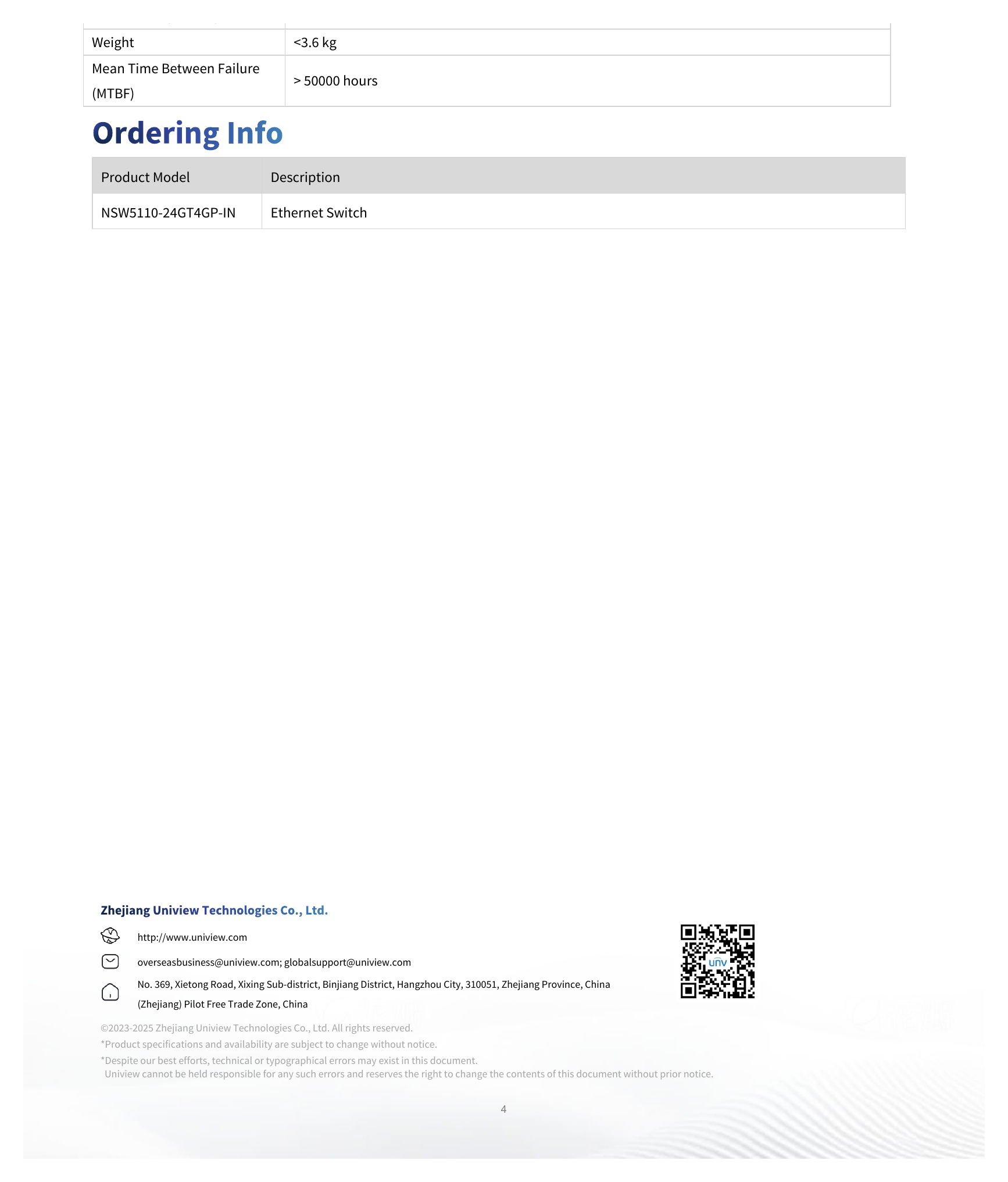

| 重量 | <3.6 kg > 50000 hours |
|---|
| Product Model | Description |
|---|
| NSW5110-24GT4GP-IN | Ethernet Switch Zhejiang Uniview Technologies Co., Ltd. http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China (Zhejiang) Pilot Free Trade Zone, China ©2023-2025 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. *Product specifications and availability a |
|---|
