Uniview PKC5601-C4Z-LED44-WH 為PKC5601-C4Z-LED44-WH，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 PKC5601-C4Z-LED44-WH 香港價格連安裝報價。
| Sensor | 1/1.8-inch 4MP CMOS |
|---|---|
| 焦距 | 2.8 to 12mm |
| Shutter | Auto, range: 1/200 to 1/100000s |
| Minimum illumination | 0.0005lux (F1.4) Horizontal FOV: 106.4° to 50.3°, |
| 視場角 FOV | Vertical FOV: 57.1° to 27.8°, Diagonal FOV: 127.4° to 57.3° |
| WDR | 120 dB |
| S/N | > 50 dB |
| Image collection format | 2688*1520@60,2688*1520@50,2688*1520@30 (default),2688*1520@25 |
| Frame rate | 60, 50, 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| 視頻壓縮 | H.264 (default), H.265 |
| ROI | Supports up to 8 regions |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog |
| Digital Noise Reduction | 3D DNR Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 |
| Display character | 4 lines, up to 32 letters |
| Display size | 304mm*304mm |
| Viewing angle | Horizontal: 120°, vertical: 120° |
| Screen brightness | 1500cd/m² |
| Display color | Supports red, green, and yellow |
| Speaker | 8Ω, 5W |
| Intercom Function | Support |
| Application scenario | ≤ 30km/h for entrances and exits |
| Vehicle detection mode | Supports video detection Supports recognition of license plates with numbers and letters by default Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations Open barrier only for the recognized vehicles Open barrier for all vehicles |
| Barrier opening policy | Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
| Capture Rate | In the recommended installation and lighting condition, the vehicle capture rate ≥ 99% |
| Recognition Rate | In the recommended installation and lighting condition,the recognition rate ≥ 98% In the recommended installation and lighting condition, the accuracy ≥ 98% United States, Canada, Saudi Arabia, United Arab Emirates, Qatar, Singapore, Malaysia, Indonesia, Vietnam, Thailand, India, Bangladesh, Cambodia, South Korea, Kyrgyzstan, Tajikistan, Kazakhstan, Uzbekistan, Turkmenistan, Egypt, Tunisia, Brazil |
| Country and Region | Estonia, Latvia, Lithuania, Poland, France, Spain, Portugal, Germany, United Kingdom, Ireland, |
| Supported | Bulgaria, Romania, Hungary, Serbia, Bosnia and Herzegovina, Greece, Croatia, Italy, Netherlands, Sweden, Belgium, Austria, Norway, Denmark, Slovenia, Czechia, Slovakia, New Zealand, Australia, Philippines, Nepal, Israel, Albania, Moldova, Turkey, Switzerland, Georgia, Bahrain, Morocco |
| Vehicle Type Recognition | Car/Van/Large Bus/Medium Bus/Heavy Truck/Light Truck/SUV/MPV/Pickup/Motorcycle |
| Vehicle Color Recognition | Red, Yellow, green, blue, purple, pink, brown, white, Grey, black, silver, orange 133 Manufacturers: Audi, ALFA ROMEO, AION, ANKAI, ACURA, Aston Martin, ARCFOX, BYD, BUICK, BENTLEY, BMW, BAIC MOTOR, BUGATTI, BORGWARD, Beiben Truck, Besturn, CHANGAN, Citroën, Cadillac, CHERY, CHRYSLER, Chevrolet, CHTC, DONGFENG, DACIA, Daihatsu, DATSUN, DODGE, DS, DAEWOO, Dongnan, EXEED, FAW, Ford, FORLAND, Ferrari |
| Edge storage | Supports ANR with a Micro SD card, up to 512GB |
| Built-in integrated illumination module, | Built-in integrated illumination module, |
| Illumination | including 2 warm light LEDs, 50m illumination including 2 IR LEDs, 50m illumination distance, |
| distance, automatic on/off control | automatic on/off control |
| Bracket | Ball Head Mount |
| Junction box | The camera comes with a junction box for storing tail cable |
| 網絡協議 | IGMP,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,DNS,DDNS,NTP,UPnP,HTTP,HTTPS,802.1x,SN MP,QoS,SSL/TLS,SSH,IPv4 ONVIF (Profile S, Profile G, Profile T),SDK, API |
| 網絡接口 | 1×10M/100M RJ45 |
| Serial port | 2 × RS485 |
| Boolean output | 2 relay outputs, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Boolean input | 2 x input, supports level (up to DC 5V) and switch signal |
| Audio interface | 1 × audio input, 1 × audio output |
| Wiegand | Supports Wiegand output |
| Storage interface | 1 × Micro SD card slot |
| Reset button | Support |
| Module Resolution (W × H) | 64*64 |
| Pixel Pitch | P4.75 |
| Column Material | Galvanized Pipe |
| Column Dimensions | 2mm thick, φ60mm×1300mm |
| Base Material | Iron |
| Base Dimensions | 5mm thick, φ170mm (φ177mm with decorative cover) |
| 供電 | 100~240VAC |
| Dimensions (L×W×H) | 334mm x 365.3mm x 1506.5mm |
| Operating environment | -30℃ to 60℃, ≤90% RH |
| Heater | N/A |
| NDAA Compliant | Support CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC |
| EMC | 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014) FCC(FCC CFR 47 part15 B,ANSI C63.4 2014) EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863);WEEE (2012/19/EU) |
| 防護等級 | IP54(IEC60529:1989+AMD1:1999+AMD2:2013) Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

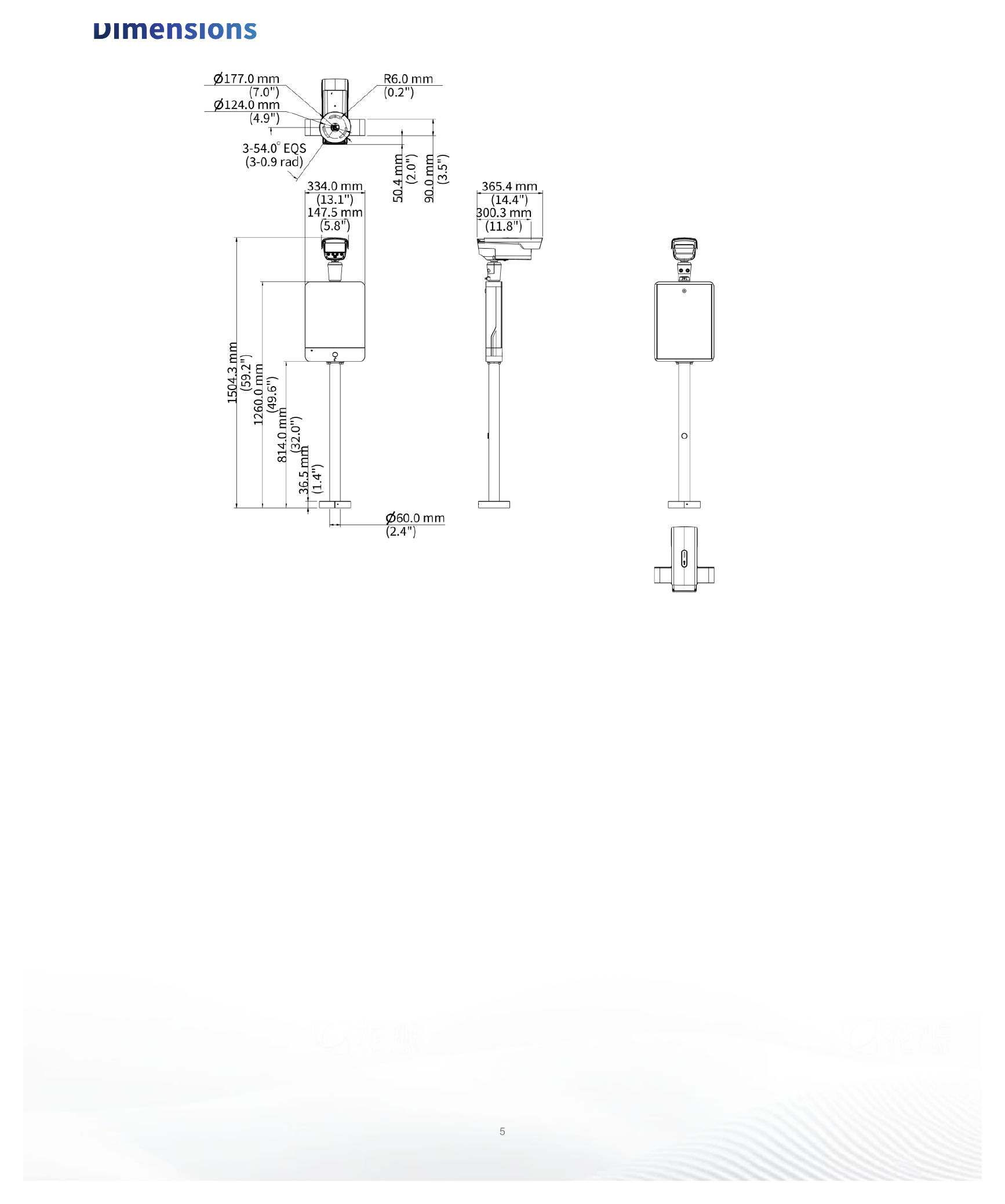

詳見圖示｜Unit: mm
PKC5601-C4Z-LED44-WH Uniview PKC5601-C4Z-LED44-WH亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，PKC5601-C4Z-LED44-WH 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：焦距方面，PKC5601-C4Z-LED44-WH 係 2.8 to 12mm，IPC2A28SE-ADZK-I0 係 2.8 to 12 mm；Shutter方面，PKC5601-C4Z-LED44-WH 係 Auto, range: 1/200 to 1/100000s，IPC2A28SE-ADZK-I0 係 Auto/Manual, 1 to 1/100000 s；S/N方面，PKC5601-C4Z-LED44-WH 係 > 50 dB，IPC2A28SE-ADZK-I0 係 >56 dB。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC2A28SE-ADZK-I0 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 PKC5601-C4Z-LED44-WH 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
