| Input Type | AC 100 V to 240 V 3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be Input Port be installed at the front end. Power Output |
|---|
| Socket | 1-ch 5A, US socket 1-ch 5A, EU socket |
|---|
| DC 12V | 1-ch 2.5A, DC5521, Used for powering the router |
|---|
| DC 48V | AC 100 ~ 240V to DC 48V, 2.3A, 2 Pin Phoenix terminal Dedicated Power Interface (Pre-Wired Internal Cabling) |
|---|
| Fan Power Interface | DC12V, 2.5A |
|---|
| Heater Power Interface | AC 100 ~ 240V to DC 12V, 8A |
|---|
| Router Power Interface | DC12V, 2.5A |
|---|
| Warning Light Power Interface | DC12V, 2.5A Overvoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis |
|---|
| Maximum discharge current | 40 kA |
|---|
| Rated discharge current | 20 kA |
|---|
| Response time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
|---|
| 防雷 | 6 kV |
|---|
| 工作溫度 | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
|---|
| 工作濕度 | ≤ 90% RH (non condensing) |
|---|
| Weight (Without Camera) | ≤ 15 kg (33.07 lb) |
|---|

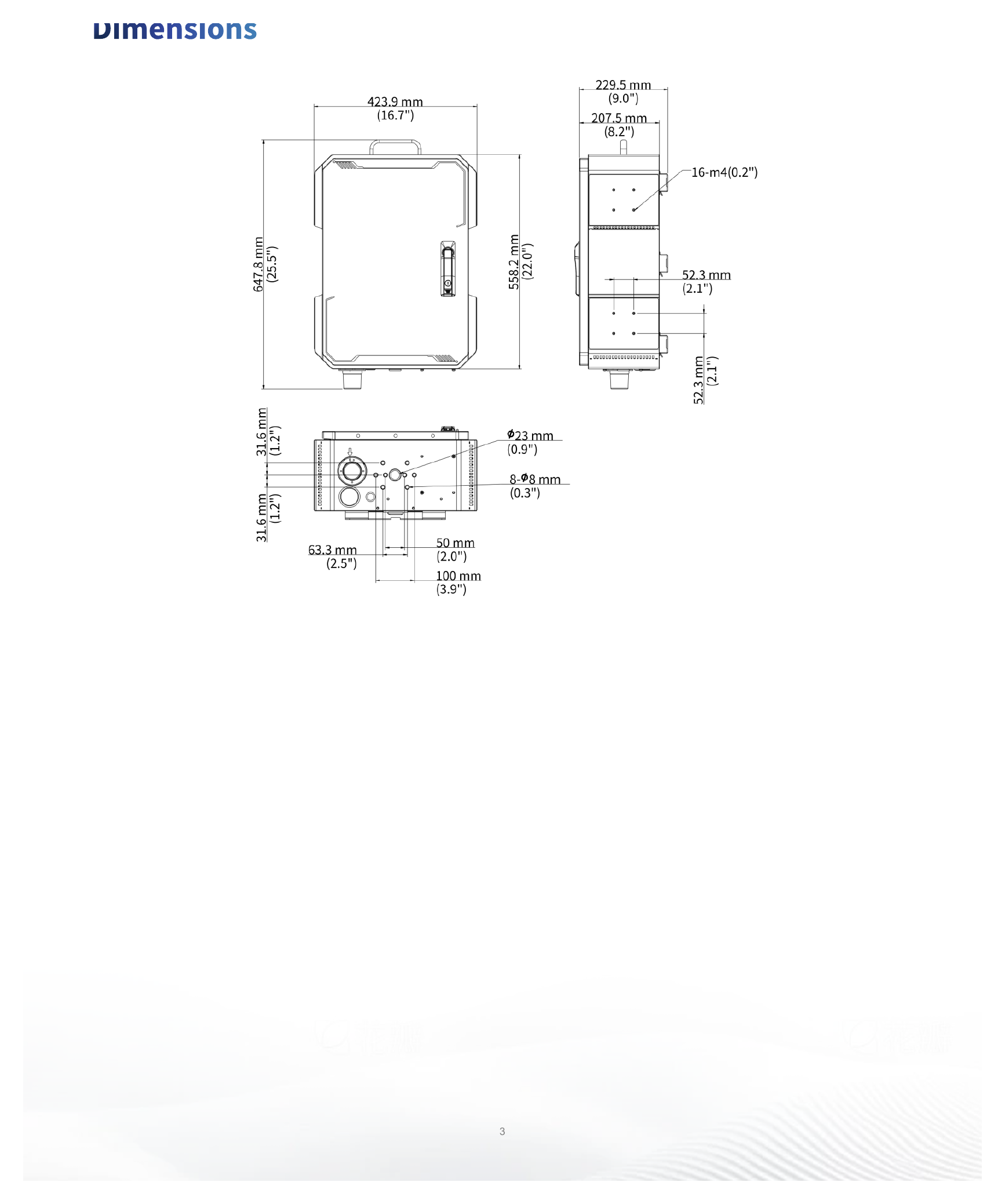

| 尺寸 | 650 (H) × 424 (W) × 230 (D) mm The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G |
|---|
| Slot dimensions | router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports. |
|---|
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
|---|
| Certification | CE-EMC, FCC |
|---|
| No-load power consumption | At ambient temperature of 25°C: 5.7 W (No HDD heating, No Heater, No Fan, No Alarm Light) |
|---|
| Full-load power consumption | At ambient temperature of 25°C: 125W (Heater, Fan, Alarm Light) Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 Up to 1 un |
|---|
| supports | TR-UF45-A-IN (Only 4-inch PTZ) |
|---|
| Top | Support the installation of an IP speaker, no mounting bracket required. Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
