UNIVIEW SMBOX02-R CCTV攝影機安裝・保養

Name: UNIVIEW SMBOX02-R SMBOX02-R
Brand: Uniview
SKU: SMBOX02-R

產品簡介

Uniview SMBOX02-R 為SMBOX02-R，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SMBOX02-R 香港價格連安裝報價。

Input Type：DC 10.8 V to DC 14.4 V, 12A
Input Port：3-pin Connector Power Output
Socket：N/A
DC 12V：1-ch 2.5A, DC5521, Used for powering the router
PoE：8 RJ45 10M/100M self adaptive Ethernet Interface

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Input Type	DC 10.8 V to DC 14.4 V, 12A
Input Port	3-pin Connector Power Output
Socket	N/A
DC 12V	1-ch 2.5A, DC5521, Used for powering the router
PoE	8 RJ45 10M/100M self adaptive Ethernet Interface
PoE Power	Max 30 W for single port, Max 75 W in total
PoE 標準	IEEE 802.3at, IEEE 802.3af
NVR Power Interface	DC 10.8 ~ 14.4V to DC 48V, 2.5A
Router Power Interface	DC12V, 2.5A
Warning Light Power Interface	DC12V, 2.5A
System Functional	Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic
Description	Fan,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis
解碼格式	Ultra 265, H.265, H.264 Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30 Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30
音訊壓縮	G.711A, G.711U
Bandwidth	80 Mbps
網絡協議	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
IP 視頻輸入	8-ch 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
錄影解像度	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Face Detection,Face Comparison,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metad
Smart by SMBOX	Face Detection,Face Comparison,Ultra Motion Detection (UMD),Smart Intrusion Prevention (SIP) Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle
VCA Search	Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch 8-ch 2-ch
Vehicle Picture Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by SMBOX	4-ch
UMD by SMBOX	8-ch
Capacity of Snapshot Records	500 thousand records for face snapshot, One and a half millions records for SIP and vehicle Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking,
General Alarm	Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space
Alert Alarm	Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
網絡接口	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	1 × USB2.0, 1 × USB3.0
Alarm In	4-ch
Alarm Out	2-ch
ONVIF	Support
Hard Disk	1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5")
Maximum discharge current	40 kA
Rated discharge current	20 kA
Response time	L-PE ≤ 25 ns, N-PE ≤ 25 ns
防雷	6 kV
When using HDDs: -40 ℃	to 60 ℃ (-40 ℉ to 140 ℉); When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
工作濕度	≤ 90% RH (non condensing)
Weight (Without Camera)	≤ 15 kg (33.07 lb)

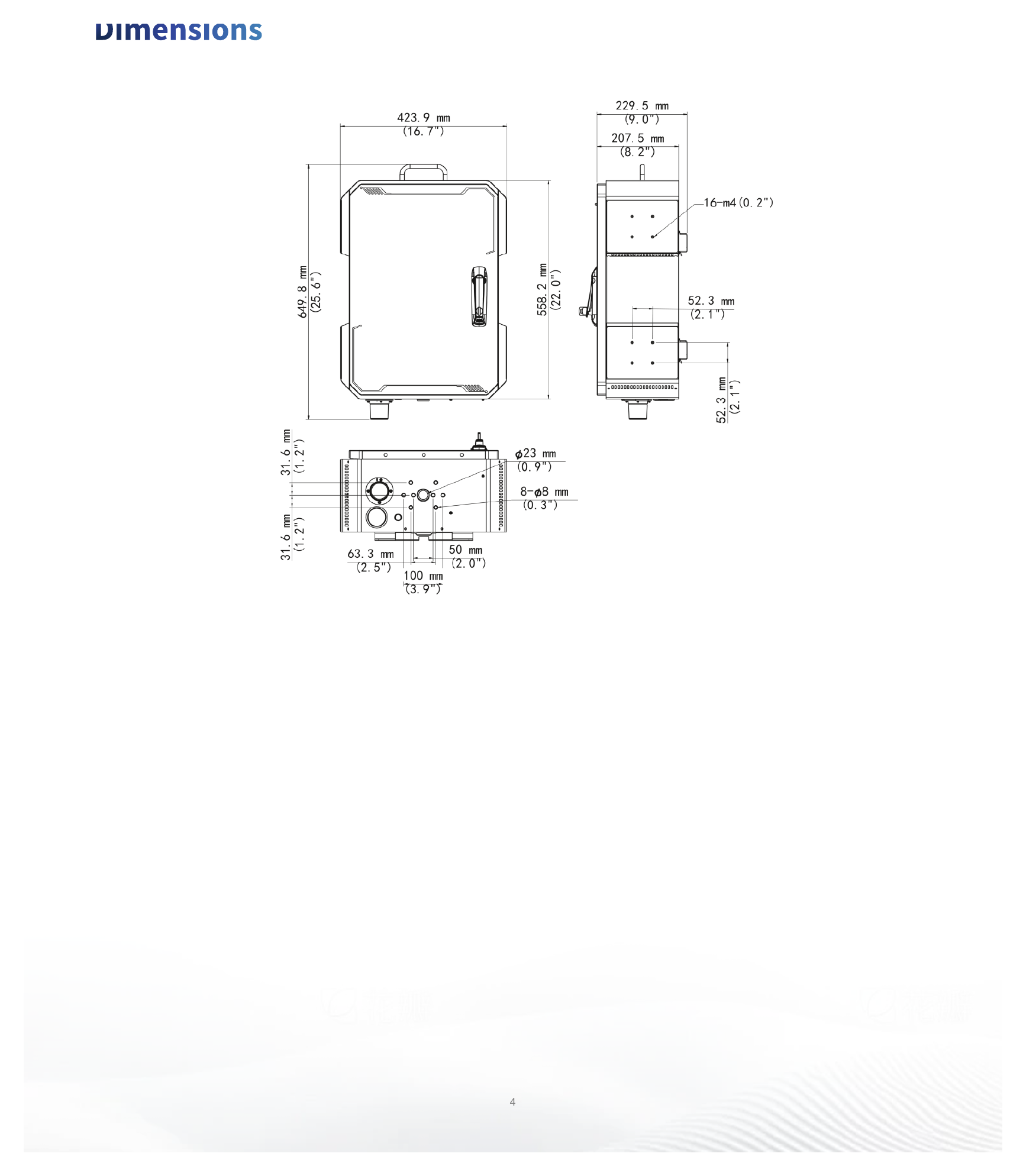

尺寸	650 (H) × 424 (W) × 230 (D) mm The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G
Slot dimensions	router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 3 LAN ports.
Rating	IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements.
Certification	CE-EMC, FCC
No-load power consumption	At ambient temperature of 25°C: 12.6 W (No HDD, No HDD Heating, No Fan, No Alarm Light) At ambient temperature of 25°C: 134.8 W (16T HDD, HDD Heating, Full POE Output (75W), Fan, Alarm Light) At ambient temperature of 25°C:
SMSERVER power	≤8W (No HDD+ No POE Output)
功耗	96.5W (Full POE Output + 16T HDD) 122.2W (Full POE Output + 16T HDD + Heating Film) Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB0
supports	TR-UF45-A-IN (Only 4-inch PTZ)
Top	Support the installation of an IP speaker, no mounting bracket required. At ambient temperature of 25°C and under No-load conditions, the device operates for 203 hours when powered solely by battery (SLR-B2560-H) .
Operating Time	At ambient temperature of 25°C and under Full-load conditions, the device operates for 19 hours when powered solely by battery (SLR-B2560-H) . Note: The above operating Time is tested under laboratory conditions. Actual operating time may vary depending on load power consumption and ambient temperature. This is for reference only. Unlimited New View http://www.uniview.com overseasbusiness@uniview.
