Uniview TIC7626EL-GAF75-4X56-VH1 為TIC7626EL-GAF75-4X56-VH1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TIC7626EL-GAF75-4X56-VH1 香港價格連安裝報價。
| Channel | Optical Thermal |
|---|---|
| Max Resolution | 4 MP 2 MP |
| Original Resolution | N/A 640 × 512 |
| Sensor | 1/1.8" CMOS Vanadium oxide uncooled focal plane arrays Colour : 0.0003lux(F1.2, AGC ON) |
| 最低照度 | B/W : 0.0001lux(F1.2, AGC ON) N/A 0 Lux with Laser |
| Day/Night | IR-cut filter with auto switch (ICR) N/A |
| Pixel Size | N/A 12 um |
| NETD | ≤ 40 mk@F1.0@25 ℃ |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| 焦距 | 6 ~ 336 mm 75mm |
| Optical Zoom | 56X N/A |
| Iris | F1.2 to F4.6 F1.0 |
| Field of View (H) | 57.9°~ 1.6° 6.1° |
| Field of View (V) | 34.6°~ 0.9° 4.8° |
| Field of View (D) | 71.2°~ 1.9° 7.2° |
| DORI Distance (Detect) | 155.5m(510.1ft)~4829.4m(15844.5ft) N/A |
| DORI Distance (Observe) | 62.2m(204.0ft)~1931.8m(6337.8ft) N/A |
| DORI Distance (Recognize) | 31.1m(102.0ft)~965.9m(3168.9ft) N/A |
| DORI Distance (Identify) | 15.5m(51.0ft)~482.9m(1584.4ft) N/A |
| Illumination Distance (IR) | Up to 800m(2624.7ft) N/A Main Stream: 4MP (2688×1520): Max.60fps; |
| Video Resolution | Sub Stream: 2MP (1920×1080): Max.60fps; 1080P(1920*1080), Max.30fps Third Stream: D1(720 x 576): Max.60fps; |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene N/A |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, N/A Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| 除霧 | Digital defog, Optical defog N/A ColorHunter with Wise-ISP |
| Cross line detection, intrusion detection | Cross line detection, intrusion detection, enter (support false alarm filtering and the area detection, leave area detection (support classification of human, non-motor vehicle false alarm filtering and the classification of |
| and vehicle) | human and vehicle) |
| Smoke Detection | Support N/A |
| Auto Tracking | Support tracking targets automatically, capturing detailed information at a distance |
| N/A | 1500m |
| Fire Detection | N/A Support Motion detection, Tampering alarm, Audio |
| Basic Detection | N/A detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) | Support N/A |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| Pan Range | 360° (endless) |
| 水平速度 | 0.02°/s ~ 140°/s |
| Tilt Range | -90° ~ 45° |
| 垂直速度 | 0.02° ~ 50°/s |
| Number of Presets | 1024 |
| Preset Image Freeze | Support |
| Home Position | Support |
| Number of Presets (IPC) | 1024 |
| Number of Patrol | 16 |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
| Video Output | N/A 1 BNC (for debugging) |
| 供電 | DC 48V±25%、DC 24V±15%、AC 24V±25% |
| 功耗 | Max 135W |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | 366 x 283 x 509 mm (14.4" x 11.1" x 20.0")(L x W x H) |
| 重量 | 17.98kg(39.64lb) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| 防護等級 | IP66 |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863);WEEE(2012/19/EU) CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC(FCC47CFRpart15B) |
| OSD Font | Vector |
| OSD Character Number | 40 |
| Detection Range | Detection Range Recognition Ran Recognition Ran Identification Ran Identification Range ( Humans: 1.8 × 0.5 m) TR-WM08-B Pan-Tilt Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

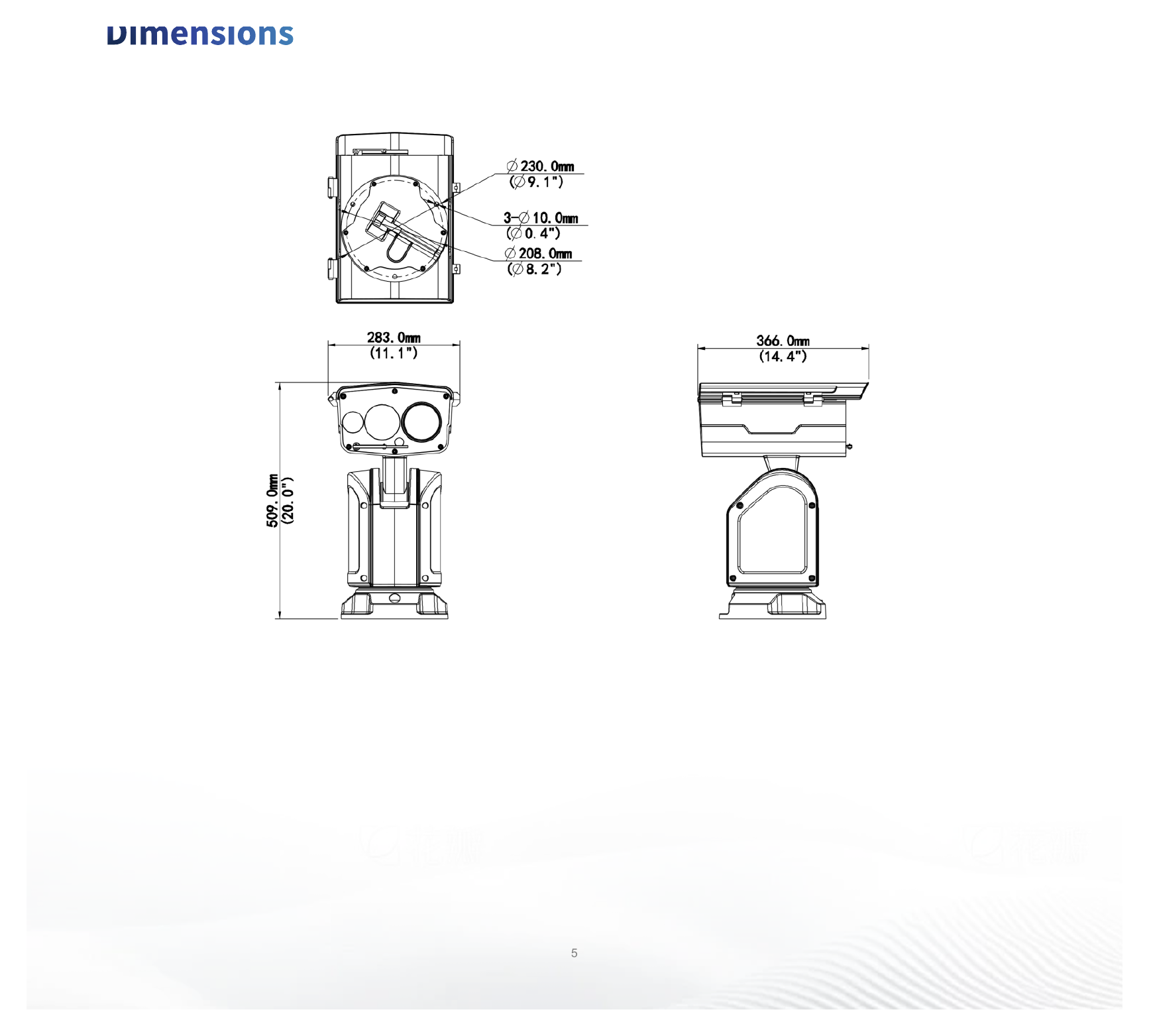

366 x 283 x 509 mm (14.4" x 11.1" x 20.0")(L x W x H)｜重量 17.98kg(39.64lb)｜Unit: mm
TIC7626EL-GAF75-4X56-VH1 Uniview TIC7626EL-GAF75-4X56-VH1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，TIC7626EL-GAF75-4X56-VH1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Shutter方面，TIC7626EL-GAF75-4X56-VH1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，TIC7626EL-GAF75-4X56-VH1 係 6 ~ 336 mm 75mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，TIC7626EL-GAF75-4X56-VH1 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 TIC7626EL-GAF75-4X56-VH1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 TIC7626EL-GAF75-4X56-VH1 Uniview TIC7626EL-GAF75-4X56-VH1供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：藍田CCTV 閉路電視安裝、觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 TIC7626EL-GAF75-4X56-VH1 香港價格連安裝報價。
