| Encoding Devices | 1000 |
|---|
| Video Channels | 2000 |
|---|
| Access Control Devices | 300 300 2000 |
|---|
| face detection, LPR, | 500 |
|---|
| Cloud Devices | 256 |
|---|
| Onvif Devices | 1000 |
|---|
| Alarm Controllers | 800 Max. 3 sets, including 2 sets of SDK① |
|---|
| IPSAN | 10 150 |
|---|
| Organizations | 1000 |
|---|
| Organization Levels | 26 |
|---|
| Roles | 500 |
|---|
| Users | 2000 |
|---|
| Concurrent Online Users | 50 |
|---|
| Alarm Logs | 10000000 6 months |
|---|
| Access Control Events | 10000000 |
|---|
| People Counting. | 10000000 |
|---|
| Visitor Records | 10000000 |
|---|
| Attendance Records | 10000000 |
|---|
| Vehicle Passing Records | 10000000 |
|---|
| Call Records. | 10000000 |
|---|
| Persons | 50000 |
|---|
| Vehicles | 10000 |
|---|
| Vehicle Libraries | 32 |
|---|
| Parking Lots | 8 |
|---|
| Entrances & Exits | 16 |
|---|
| Lanes | 32 |
|---|
| Receiving Bandwidth (Mbps) | 650 |
|---|
| Forwarding Bandwidth (Mbps) | 650 |
|---|
| Storage Bandwidth (Mbps) | 650 256 160 250 250 |
|---|
| Maximum Capacity per Disk | 20TB Multi-client login |
|---|
| User Login | Strong password policy, mandatory password reset at first login Requires users to read the privacy agreement at login Limit failed login attempts; block the IP address after 5 consecutive failed login attempts, with automatic unlock after 5 minutes Password strength enforcement; strong passwords required for cross-subnet access, with configurable policy (enable/disable) |
|---|
| Data Dashboard | Customizable titles and functional modules; supports full-screen display mode A user can customize menu display order and content within the scope of his/her menu |
|---|
| Custom Menus | permissions Add third-party apps, including embedded programs (URL) and embedded webpage (URL) EZCloud Privacy Policy, Uniview Cloud Access Privacy Agreement |
|---|
| EZCloud Service Agreement | User confirmation is required when enabling cloud-edge features; users who decline can still use EZCloud functions independently. Enable or disable system functional modules Customizable automatic client lock timeout Customizable alarm name |
|---|
| Advanced Feature | Restore default settings |
|---|
| Configuration | Customizable logo, including custom logo, background, and name on the login page, homepage, and top navigation bar Software theme switching: dark mode / light mode / custom color Replaceable software background image |
|---|
| Third-party Applications | Supports adding third-party clients or web pages as sub-modules within the software Add,edit, delete, search users Sync user information from Windows AD domain View user list Assign one or more roles to a user Configure user priority for PTZ control Reset passwords for other users (only available to admin) Bind/unbind roles to/from users Lock/unblock user accounts Add,edit, delete, search roles |
|---|
| Role Management | Configure function access permissions; a role can only see the allowed functions/menus Configure resource access permissions; a role can only see the allowed resources Allows users to change their own password |
|---|
| Change Password | Password recovery via security questions; preset security questions must be answered correctly to reset the password |
|---|
| Retrieve Password | Retrieve password via mobile phone number (China) or email address (outside China) Add, edit, delete, search organizations Total up to 26 levels (local domain and external domain) |
|---|
| Access Protocol | Private protocol and Onvif protocol Device access via IP+Port, DDNS+Port, EZCloud Device access via UNP LAN devices: IPC, NVR, storage device, face detection access control terminal, video wall controller, entrance & exit ANPR camera, radar, Smart Box, video intercom device, alarm controller |
|---|
| Device Types. | Add, delete, edit, search devices Batch change device/channel names View reasons for device offline status Cloud devices: IPC, NVR, face detection access control terminal Add, edit, delete, search communities, buildings, units, and rooms Bind residents with rooms, including owners and tenants |
|---|
| Building Management | Add, edit, delete, search buildings |
|---|
| Unit Management | Add, edit, delete, search units Add, edit, delete, search rooms Bind residents with rooms Activate license |
|---|
| License Management | Export host file; import and view license info Deactivate license |
|---|
| Client configuration | Enable/disable pop-up alarm window |
|---|
| Switch Language | Choose client language (Chinese / English) |
|---|
| Configuration Wizard | Configure which setup wizard modules appear on the homepage |
|---|
| Customer Service | View customer service phone number User manual |
|---|
| Help Center | View system notices, including privacy policy and open source notice View system version information Add, edit, delete, search (including batch operations) storage schedules; schedule configuration includes: storage location, storage stream, storage policy, and retention period |
|---|
| Camera Storage Info | Add, delete, edit, search video channel storage configuration (excluding cloud device, UNP |
|---|
| Management | device) Configure manual backup for video channels |
|---|
| Recording Backup | Configured scheduled backup for video channels Start/stop central recording View, delete, start, stop storage schedule Start, stop, delete, refresh backup tasks |
|---|
| Backup Task | View the progress of ongoing video backups Retry and resume backup tasks Add, edit, delete, search (including batch operations) backup schedules; |
|---|
| Backup Configuration | backup schedule configuration includes: storage location, storage stream, storage policy, and retention period Supports two modes: image map and GIS online map Image map: JPEG, JPG, and BMP formats, maximum resolution 8190*8190 GIS map 3D map: 3D/2.5D models support gltf and 3dtiles formats, maximum file size 512MB View live video/recording/image/alarm info of devices on the map; filter alarms by |
|---|
| Platform Time Configuration | Allows manual modification of system time Configure date and time formats (options include: YYYY-MM-DD; MM-DD-YYYY; DD-MM-YYYY) Add, edit, search, delete holidays Maximum duration for a single holiday is 30 days When enabled, requires configuration of: username, password, SMTP server, encryption type, SMTP port, sender address, and recipient address |
|---|
| Temperature | Switch temperature unit: Celsius/Fahrenheit Specify access control devices to sync access records to a third-party database (customizable database address, port, etc.) |
|---|
| Data Sync Configuration | Option to include or exclude failed verification records Configurable to automatically re-sync once per hour Enable/disable automatic retransmission of failed data sync attempts |
|---|
| Video Intercom | Configure video intercom ringing duration (40–60 seconds) Configure sync policy: sync feature data only, sync image and feature data Configure face image validation during enrollment Supports automatic server time synchronization settings; configurable sync interval to push server time to devices |
|---|
| Alarm Input/Output | Supports filtering by alarm input and alarm output |
|---|
| PTZ Control Configuration | New requester takes control Priority + First requester takes control Priority + New requester takes control Local disk, disk status (normal, abnormal, offline, or partition does not meet configuration requirements), usage types (general purpose, recording storage, recording backup, hot spare) Configure RAID with local disks; create, delete, and rebuild RAID; RAID info (status, capacity) ; supporte |
|---|
| Network Disk | Configure disk usage types: recording storage, recording backup View network disk status: normal, abnormal, offline Add, edit, delete, search network disk |
|---|
| Network Disk. | Configure disk usage types: recording storage, recording backup View network disk status: normal, abnormal, offline |
|---|
| Network Configuration | Network configuration supports TCP/IP mode Supports configuration of HTTP, DNS, and alarm ports Network security supports HTTPS and SSH Supports manual route configuration on a specified network interface Supports custom route configuration Supports single-domain dual-NIC configuration Video processing mode: adaptive (default), fluency priority, real-time priority Video stream transmission policy: |
|---|
| System/Service Restart | Restart system/service manually Local upgrade: upgrade through installation packages Image backup: backup and restoration of images, including configuration images such as face and vehicle images |
|---|
| Diagnostic Info | Package and export service operation logs |
|---|
| Operation Logs | Search user’s operation logs Automatic database backup: configurable backup interval (daily or weekly) |
|---|
| Device Diagnostic Info | Supports device diagnostics; diagnostic reports can be exported Shows the current online/offline status Shows the last offline time Counts the total offline occurrences within a specified period (max. span: 30 days) Calculates the total offline duration within a specified period (max. span: 30 days) Primary/replica configuration (replica server) Automatic device allocation Expansion of device conn |
|---|
| Cascading (Private) | Video cascading: the upper platform can view video resources on lower platforms PTZ control: all PTZ (Pan-Tilt-Zoom) functions, including PTZ preemption Voice services: audio broadcast, two-way audio Configure the local server role: Primary or Replica View primary/replica status |
|---|
| High Availability (HA) | Active/standby mode, automatically monitors service status and completes all-service failover Enable/disable EZCloud service After binding UMS to EZCloud, confirm UMS is online and syncing data |
|---|
| EZCloud | In cloud-edge mode: Users can add, edit, or delete rooms, personnel, visitors, permission groups, schedule templates, and holidays on EZCloud, and search the corresponding information on UMS |
|---|
| OpenAPI | Authentication is required when third-party platforms access this platform’s OpenAPI |
|---|
| Human Presence Detection | Add, edit, delete human presence detection tasks and receive alarm data |
|---|
| People Counting | Add, edit, delete people counting tasks and receive real-time people count data and alarm data |
|---|
| Vital Signs Monitoring | Add, edit, delete vital signs monitoring tasks and receive alarms for abnormal vita signs |
|---|
| Fall Detection | Add, edit, delete fall detection tasks and receive fall detection alarm data Viewing edge-end channels |
|---|
| Basic Functions | Supports P2P and TURN between edge service and app Cloud receives alarms from edge service and pushes them to app Access permission management |
|---|
| Cloud-Edge Services | Remote visitor pre-registration, pre-registration after invitation Review visitors remotely Sync basic data of organizations |
|---|
| Basic Data Sync | Sync basic data of personnel and departments Sync basic data of devices and channels RTSP |
|---|
| Live View Auxiliary Screens | C/S client supports 1 main screen + 3 auxiliary screens; max. 4 live view screens simultaneously Live view window layout: 1, 4, 6, 8, 9, 10, 13, 16, 17, 25, 36, 64 windows Supports corridor mode |
|---|
| Live View Window Layout | Supports custom window layout, and Add and Delete operations Allows user to save live video as group display Supports closing all videos at once |
|---|
| View | Add, delete, edit, search views Supports sequence by channel, sequence by view Add, delete, edit, search sequence resources Supports camera sequence and group sequence by organization Supports resource statistics and refresh operations for sequence resources Add, edit, delete camera sequence tasks; refresh organizations and generate resource statistics Start, modify, delete camera sequence devices |
|---|
| Favorites | Add devices to favorites Supports statistics on resources in favorites Play live video by single channel Play live video by view Play live video by sequence |
|---|
| Live View Operations | View live video, preset, snapshot, continuous snapshots, digital zoom, 3D positioning (pan/tilt the camera, drag the mouse to zoom in/out) Supports AcuSearch and AcuTrack, users can drag the mouse to select a target in the live video image and initiate an instant search with one click |
|---|
| Transport Protocol | Adaptive One side has a single-layer NAT Each side has a single-layer NAT No NAT Single-channel live video, multi-channel live video Start live video by main stream, sub stream, adaptive mode |
|---|
| Resume Live View | Automatically resumes live view after a restart of the client, device, or service |
|---|
| Stream Transmuxing Policy | GB stream, RTP stream |
|---|
| Image quality | Main stream, sub stream, third stream Mounting mode: Ceiling mount, wall mount or desktop mount Display mode: 360° Panoramic, 180° panoramic, Fisheye, and PTZ |
|---|
| Panoramic Linkage | Manual tracking, auto tracking |
|---|
| Camera Resources | Single window + multi-camera sequence |
|---|
| View Resources | Multi-view sequence |
|---|
| PTZ Control | Drag-to-zoom 3D positioning Configure preset positions; max. 255 per camera Sync presets (get presets) Configure home position (auto-guard) Control rotation direction (pan/tilt) Lock/unlock PTZ Set rotation speed Zoom in/out Focus near/far Preset patrol Recorded patrol Start/stop patrol Adjust iris Enable/disable wiper Enables high-priority users to preempt PTZ control from low-priority users Conf |
|---|
| Patrol Route Configuration | Patrol command duration, range: 5-300 seconds, default: 10 seconds, supports endless rotation Preset stay time; range: 5-30 seconds, default: 10 seconds Max. 1 patrol plan per camera Max. 8 patrol routes per patrol plan Automatically returns to the guard position after being idle for a certain length of time (time is |
|---|
| Auto Guard | configurable) Max. 8 time periods per auto guard schedule |
|---|
| Auxiliary Screens | Supports 1 main screen + 3 auxiliary screens; max. 4 playback screens simultaneously |
|---|
| Playback Transport Protocol | TCP, UDP |
|---|
| Playback Media Service Policy | Adaptive, Direct Connection First One side has a single-layer NAT Each side has a single-layer NAT No NAT Device recording Central storage recording Network storage recording Local recording file Supports recording search by start time, storage location (front-end recording, central recording, |
|---|
| Recording Search | fuzzy search), search domain (registered domain, current domain, cloud search), recording type (alarm recording, manual recording, all recordings) Start |
|---|
| Playback Control | Stop Pause Resume 1x forward Fast forward (16×, 8×, 4×, 2×) Slow play (0.5×, 0.25×, 0.125×) Fast rewind (-1×, -2×, -4×, -8×, -16×) Drag progress bar to navigate through video Zoom in/out on progress bar Click to adjust progress bar Play next frame Forward by frame Skip to play event/alarm recordings only Lock recording Tag recording Play recording files, full-frame forward, extracted-frame rewind |
|---|
| Recording Download | Pause, cancel download Retry, resume download Recording download list 32x speed download |
|---|
| Recording Download Task | View, delete recording download tasks |
|---|
| Media Stream Protocol | RTSP MP4 and TS formats |
|---|
| Recording to Local PC | Start/stop recording Automatically stops recording when the media stream stops MP4 and TS formats |
|---|
| Local File Playback | Start/stop recording Automatically stops recording when the media stream stops |
|---|
| Stream Audio | Device-side audio formats: AAC/G711a/G711u Two-way audio/broadcast with/to devices Two-way audio with channel Batch broadcast by organization Device-side audio formats: AAC / G.711a / G.711u Broadcast to devices |
|---|
| Audio Broadcast | Broadcast to channels Client-side audio format: G711u Add, edit, delete, search video wall resources 1-10/13-16 window layouts Video wall preview Open/close windows, roam, overlay, zoom in/out; always display on top/bottom, split window, switch to full screen |
|---|
| Video Wall Configuration | Configure scenes, scene sequence Screen control: turn on/off screens through UA, UA-A, MODBUS protocols; turn off screens with a delay or at a set time Supports small pixel pitch LED. Configure LED font, rows, length, scrolling speed, scrolling mode, alignment, and transparency; Up to 4 virtual LEDs per scene Font size supports adaptive and any even value within the range [48–1024] Available fonts |
|---|
| Playback on Video Wall | Stop playback on video wall by closing the Web/CS client Play recordings from lower platform on video wall |
|---|
| Group Sequence Control | Supports operations including start, stop, pause, play previous/next |
|---|
| Scene Operations | Start scene Adaptive Direct Connection First |
|---|
| Stream Transmission Protocol | TCP, UDP Start live video on video wall through network keyboard |
|---|
| Network Keyboard Control | Control playback (forward/rewind) and playback speed adjustment through network keyboard Control PTZ (pan-tilt-zoom) through network keyboard DX video wall: Created using channels of decoder/video wall controller Start live video by dragging cameras to video wall; supports live view, camera sequence on video wall Multi-DC video wall Start live video by dragging cameras to video wall; supports live |
|---|
| Smart Live View | Access control mode: Live view operations, local recording, two-way audio, etc.; view door opening/closing events, access records; Multi-target detection mode: Live view operations, local recording, two-way audio, etc.; view pedestrian/motor vehicle/non-motor vehicle records, face records; People counting mode: Live view operations, local recording, two-way audio, etc.; people flow counting (count |
|---|
| Video Parameters | Auto-switch to the sub stream when the number of windows exceeds the set value (configurable range: 1-64) Enable/disable Packet Reordering, Anti Packet Loss, GPU Decoding, Intelligent Mark, Playback Preview Supports restoring default settings Continuous snapshot interval: 1-10s (default: 1s) Continuous snapshots: 2-10 (default: 3) Snapshot format: JPG, PNG Restore default settings: Supported Local |
|---|
| Recording Parameters | Recording download format: mp4, ts Restore default download settings: supported Local snapshot: Single and continuous snapshot during live view and playback Volume control: Adjust audio volume during live view and playback Digital zoom: Digital zoom on video during live view and playback Local recording: Manually start/stop local recording |
|---|
| Player Functions | Customizable recording file name Configurable recording save path Save recordings in MP4 or TS format Fisheye dewarping: supports mounting mode (ceiling, wall, desktop) and display mode (360° Panoramic, 180° panoramic, Fisheye, and PTZ) Supports alarms from GB/ONVIF/LAPI devices |
|---|
| Alarm Integration | Manually trigger emergency event alarms Allows third-party to customize alarms based on our interfaces Alarm subscription by user Alarm subscription by external domain (higher platform subscribes to alarms from current |
|---|
| Alarm Subscription | platform) Configurable subscription template name, subscription template description, alarm level, alarm type, and device list |
|---|
| Alarm Aggregation | Multiple alarms of the same source and type within the specified period are reported only once |
|---|
| Pop-up Alarm Window | When an alarm is triggered, a global pop-up displaying the alarm details appears in the |
|---|
| Control | bottom-right corner of the interface, accompanied by an alarm sound |
|---|
| Alarm Sound | Configure audio name, upload audio file, link with alarm type Pop-up live video of the linked camera Play live video on DX video wall Play recorded video of the linked camera Record video Back up recording |
|---|
| Alarm Linkage Actions | Output alarm Close live view window Send email Send text Play audio Open/close door Output alarm on the linked camera Real-time pop-up alarm window allows for immediate viewing of alarm information When an alarm is triggered, real-time alarm info appears in a pop-up window in the lower right corner Point operations: |
|---|
| Real-Time Alarm | Camera: Live view, playback, and play video on video wall Face detection access control terminal / access controller: open/close door, keep door open/closed, restore Face detection access control terminal: clear alarms with one-click View historical alarm records, handle alarms Search alarms by alarm time, alarm device, alarm type, alarm level (critical/major/minor/warning/alert), handling result |
|---|
| Historical Alarm | (unhandled/confirmed/false alarm), handling user, and alarm description Export partial or all search results Manually generate alarms View alarm statistics trends and various types of alarms by time and device Search criteria: collect alarm statistics by time (day/week/month) and device |
|---|
| Alarm Statistics | Statistical chart: including trend chart (statistics based on time) and bar chart (displaying the number of alarms by alarm type) Hover over to view the number of alarms View detailed alarm counts Export results |
|---|
| Alarm Handling | Confirm device alarms Push device alarms to client Push device alarms to external domain Active/standby mode Monitors service status and auto-recovers on the same node when possible |
|---|
| Dual-Server Hot Standby | Fails over to standby if local recovery fails Standby seamlessly takes over all services (live view, video wall, storage) and resumes active services Add, delete, edit, search face libraries; sync face libraries to devices; add, delete, edit, search person info |
|---|
| Personnel Info Management | Set important person libraries to manage the monitoring of important persons Face library monitoring based on the private protocol Face monitoring based on the VIID protocol (supported in China) Smart live view (display live video of face detection camera), shows captured person info, shows match/not match alarms generated for monitoring tasks Enter text to search across multiple NVRs for matching |
|---|
| Motor Vehicle | displaying full snapshots, recordings, and motor vehicle attributes; supports viewing vehicle trajectories. 2. Search by alarm events: supports search criteria including vehicle monitoring type, snapshot location, snapshot time, license plate number, license plate color, and vehicle color. Search results support search by image, export, displaying full snapshots, recordings, and motor vehicle attr |
|---|
| Live View | View live video from access control devices, real-time door lock status, real-time access info Supports remote operations: open/close door, keep door open/closed, restore Supports displaying by custom groups, supports one-click to keep door open/closed, restore |
|---|
| Department Management | Add, edit, delete, and search departments Supports personnel information enrollment, including personnel ID, name, ID number, validity period, etc., with search capabilities. Information entry includes: personnel ID (required), name (required), ID number, ID type, access validity period, date of birth, gender, mobile phone number, department, address, remarks, door opening password, room informati |
|---|
| Authentication Mode | Face, card, password, fingerprint Add, delete, edit, search schedule templates |
|---|
| Schedule Template | Link holiday schedules, weekly schedules; each schedule template can link with up to 16 holiday schedules |
|---|
| Access Permission Search | Search personnel permission by name, sync status, access control point range, building, person/department Set door channel name, door open timeout, duress code, alarm trigger threshold for excessive authentication attempts, whether to receive abnormal door opening alarms Obtain access records from devices View, export access records |
|---|
| Image Pre-processing | Image correction |
|---|
| Face Feature Management | Extract feature data through access control devices, sync feature data Add/delete/batch delete |
|---|
| Person Group | Bind by department/person View personnel group list Add/delete/batch delete |
|---|
| Authentication Group | Copy authentication group View personnel group list Bind door channels Set schedule template/validity period/authentication interval/concurrent authentications Enable/disable authentication group Add/delete/batch delete |
|---|
| Anti-passback Rule | Set area anti-passback/route anti-passback |
|---|
| Bind Access Control Devices | Configure single-controller anti-passback and cross-controller anti-passback Configure rules based on access control devices View configuration list Add, edit, delete floors Set control mode (free mode/forbidden mode/controlled mode), default is free mode Bind/unbind cameras, access control devices, etc. |
|---|
| Device Binding | Search the bound device list, show device name, IP address, device ID, serial number, device type, location of the linked elevator controller, status, operations (e.g., relink elevator controller) Set records, including reporting type (upload all/successful records), storage mode (stop/overwrite when storage is full), card type Set manual call response time (outside/inside elevator) Set automatic |
|---|
| Verification Configuration | Add, delete, copy verification templates Add, delete verification configurations Bind personnel/visitors with elevator controllers Configure schedule templates View permission list, show name, personnel ID, elevator control permissions, sync status, operations (sync permission) |
|---|
| Elevator Control Live View | View live video from the linked cameras/door stations to monitor the elevator’s real-time status Search elevator access records to monitor the elevator usage history |
|---|
| Alarm Function | Integration with fire alarm systems to trigger linkage actions |
|---|
| Device Types | Compatible indoor stations, door stations Bind devices with rooms, bind rooms with indoor stations, remotely control door stations to open doors |
|---|
| Call Recipient Management | Add, delete, edit, search call recipients |
|---|
| Contacts | Contacts management, use contacts to call indoor stations Door station calls management center, indoor station calls management center, management center calls indoor station |
|---|
| Call Records | View call and answer records Receives alarms from indoor stations and door stations Enroll visitor face images and license plates (integrated with access control and checkpoint systems for entrance & exit management), custom visitor attribute fields, configure visitor permissions Search registration records by: registration time, visitor type, visitor name, mobile phone number, feature extraction |
|---|
| Visitor Preregistration | Visitor preregistration through the mobile client (requires the app to enable Cloud-Edge mode) |
|---|
| Visitor Review | Visitor review through the mobile client (requires the app to enable Cloud-Edge mode) Sign out visitors manually |
|---|
| Visitor Sign-Out | Configure an automatic sign-out time; the system automatically signs out all visitors who have not manually signed out at the specified time Search visitor access records by: registration time, visitor type, visitor name, mobile phone |
|---|
| Visit Records | number, host name, and ID number Export, delete visitor records |
|---|
| Area Monitoring | Set area monitoring tasks that trigger alarms when a visitor is detected in a restricted area or outside permitted time periods Set a face similarity threshold; alarms are triggered when the similarity exceeds the set threshold Search by device status and device scope Sync, refresh permissions |
|---|
| Attendance Rules | Set automatic attendance calculation time (default: 5 a.m.) |
|---|
| Staff Schedule | Set time periods, manage shifts and schedules (assign shifts to staff members/departments) |
|---|
| Holiday | Holiday configuration |
|---|
| Leave | Handle leaves/business travels |
|---|
| Re-Sign In&Out | Re-sign in or out, view re-sign in&out records |
|---|
| Original Data | Search and export original attendance data |
|---|
| Attendance Details | Search, export detailed attendance data; calculate attendance |
|---|
| Attendance Summary | Summarize and export attendance data |
|---|
| Data Export | Export attendance data to an Excel file |
|---|
| Data Sync | Sync data to a third-party database (MySQL, PostgreSQL, SQLServer) Includes people flow counting area and crowd density monitoring area |
|---|
| Counting Area Management | Add, delete, edit, search counting areas Supports quick navigation to smart live view for real-time people flow statistics Realtime statistics: View live video from people counting cameras with people counting statistics People flow counting: Displays the number of people that have entered, the number of people that have exited, the number of people allowed to enter, the number of people present, |
|---|
| Patrol Route | Add, delete, edit, search patrol routes 6 patrol methods available: All Random, First Point Fixed, First and Last Points Fixed, All Points |
|---|
| Patrol Method | Ordered (Random Interval), All Points Ordered (Fixed Interval), All Points Ordered (Custom Interval) |
|---|
| Patrol Schedule | Add, delete, edit, search patrol routes; configure schedule details, holidays, and patrollers |
|---|
| Patrol Records | Search patrol records by time, patrol points, etc. |
|---|
| CPU | Intel Core i3-8100 @3.6GHz |
|---|
| 操作系統 | Ubuntu-24.04.2 |
|---|
| Memory | 32GB |
|---|
| System Disk | SSD 128GB SATA x 16 eSATA x 1, miniSAS x 2 |
|---|
| Video Output | HDMI x 2, VGA x 1 |
|---|
| 網絡接口 | GbE x 4 |
|---|
| USB | USB2.0 x 2, USB3.0 x 2 |
|---|
| Audio Interface | RCA 1 x input, 1 x output RS232: RJ45 x 1 RS485: RJ45 x 1 |
|---|

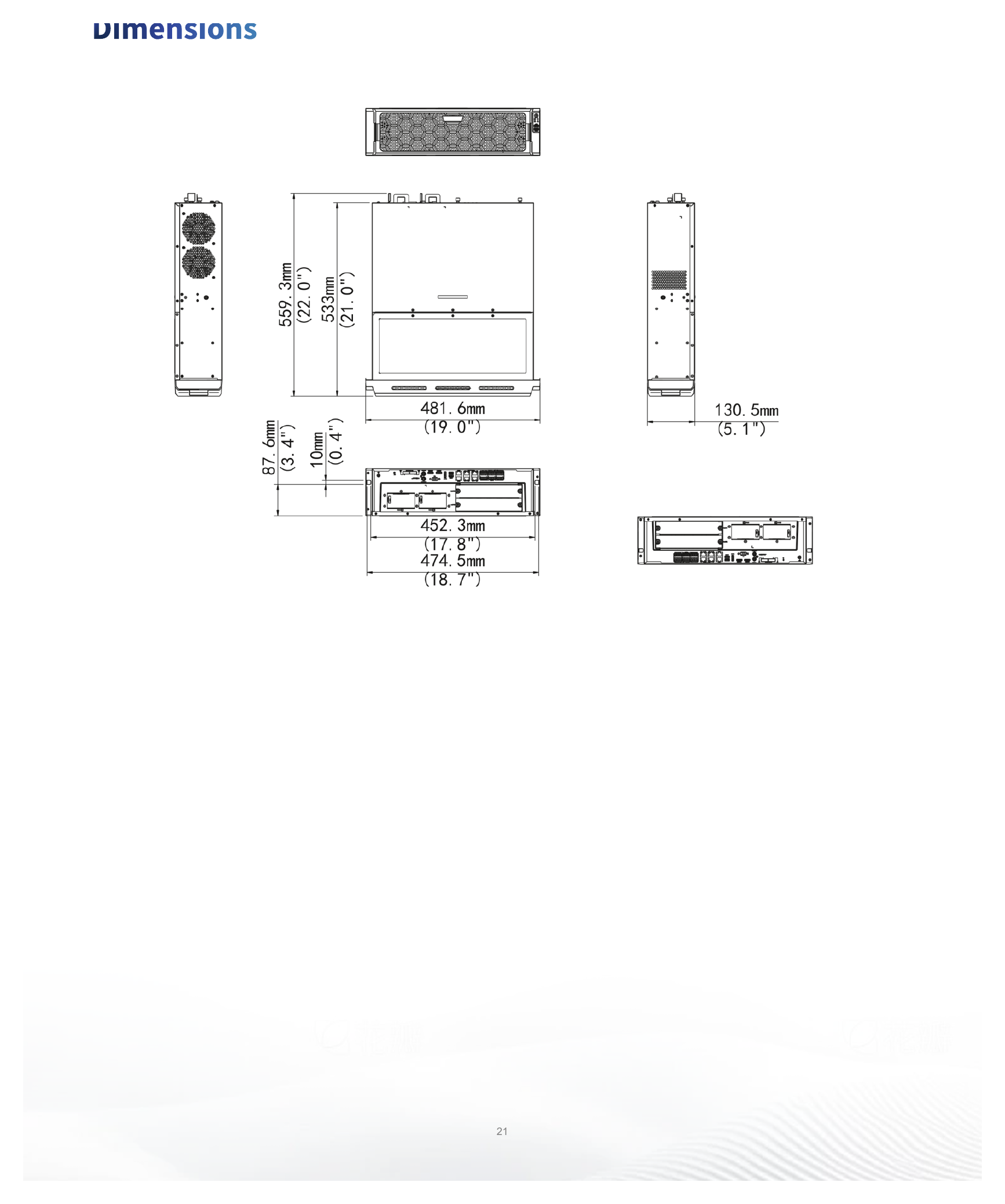

| Dimensions (L× W x H) | 533mm x 481.6mm x 131.5 mm |
|---|
| 淨重 | <13KG |
|---|
| 工作溫度 | -10℃ to +55℃ |
|---|
| 工作濕度 | 10% to 90% (non-condensing) |
|---|
| 功耗 | ≤ 150W (without HDD) |
|---|
| 供電 | Standard 1 power module / optional dual power modules Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
