| Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS |
|---|
| 鏡頭 | 2.7~13.5mm, AF automatic focusing and motorized zoom lens |
|---|
| Angle of View(H) | 121.36°~ 33.51°(H) |
|---|
| Shutter | Auto/Manual, shutter time: 1~1/100000 s Colour: 0.0005 Lux (F1.2, AGC ON) 0 Lux with IR on |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Digital noise reduction | 2D/3D DNR |
|---|
| S/N | >52 dB |
|---|
| IR Range | Up to 50m (164 ft) IR range |
|---|
| 除霧 | Digital Defog |
|---|
| WDR | 120dB |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main Profile, High Profile Main Stream:2MP (1920×1080):Max. 30 fps; |
|---|
| Frame Rate | Sub Stream:2MP (1920×1080):Max. 30fps; Third Stream: D1(720×576):Max. 30fps |
|---|
| HLC | Supported |
|---|
| BLC | Supported |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 8 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Motion Detection | Up to 4 areas |
|---|
| Behavior Detection | Intrusion, cross line, motion detection |
|---|
| Exception Detection | Audio detection |
|---|
| Intelligent Identification | Face detection, Defocus ,Scene Change |
|---|
| Statistical Analysis | People counting Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|---|
| 音訊壓縮 | G.711 |
|---|
| 雙向語音 | Supported |
|---|
| Suppression | Supported |
|---|
| 取樣率 | 8 KHZ |
|---|
| Edge Storage | Micro SD, up to 128 GB |
|---|
| 網絡儲存 | ANR IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
|---|
| Compatible Integration | ONVIF(Profile S, Profile G), API Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
|---|
| Alarm I/O | 1/1 |
|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 10W |
|---|

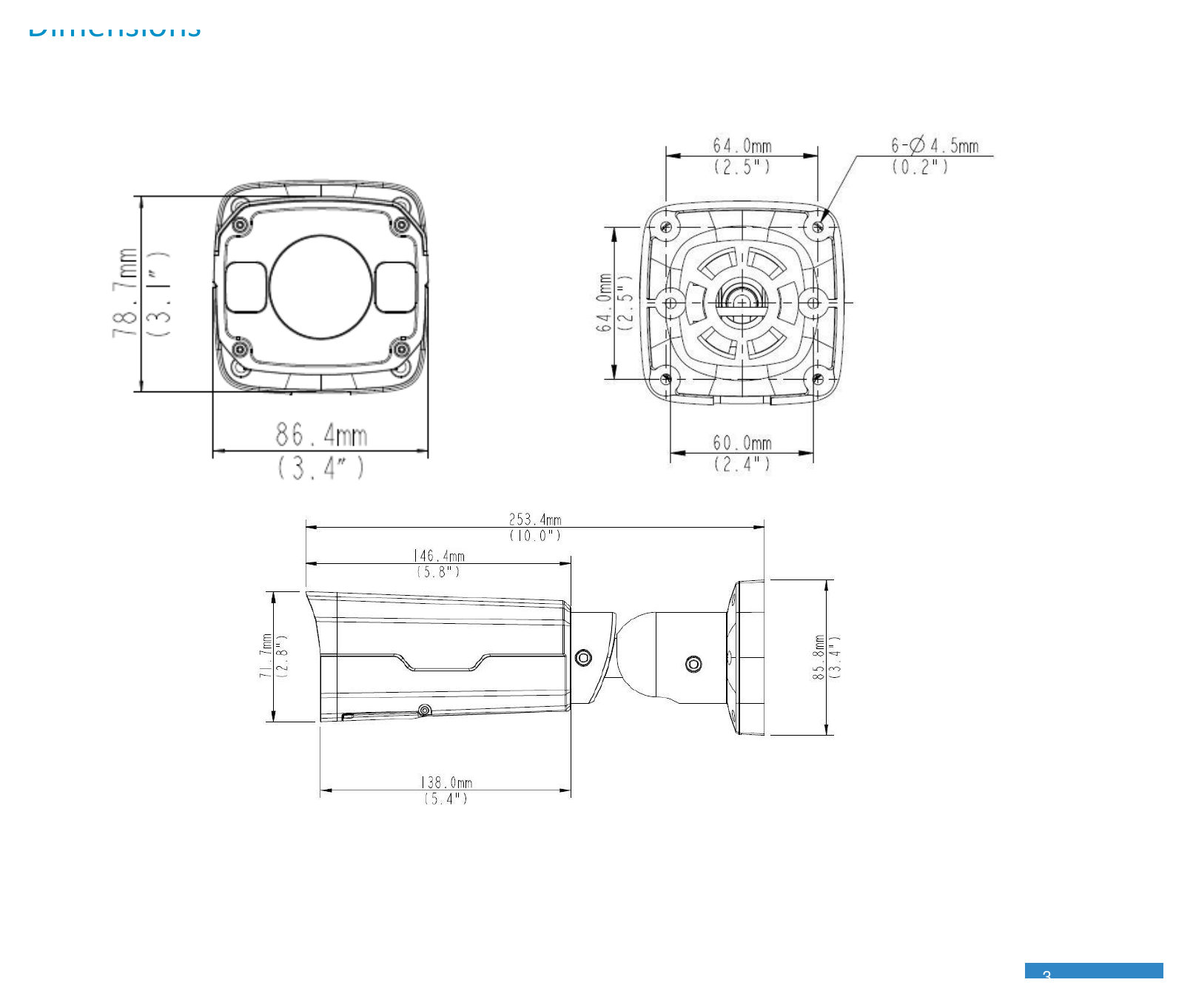

| Dimensions (L × W × H) | 146.3 ×86 ×71.7 mm(57.6” × 3.4” × 2.8”) |
|---|
| 重量 | 0.58kg (1.28lb) |
|---|
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~ 90% RH(non-condensing) |
|---|
| 防護等級 | IP67 |
|---|
| 安裝方式 | Accessories Description |
|---|
| Wall mount | \ Mounting pedestal is included in the Product package |
|---|
| Ceiling mount | \ Mounting pedestal is included in the Product package |
|---|
| Rail mount | TR-UP06-A-IN For outdoor rail installation |
|---|
| Pole mount | TR-UP06-A-IN For outdoor pole installation |
|---|
