| Item | VX1612-C@V3 VX1616-C@V3 VX1624-C@V3 VX1636-C@V3 VX1648-C@V3 |
|---|
| performance | Video Mode 320-channel(640Mbps) recording, 160-channel(640Mbps) forwording, 32-channel(64Mbps)playback |
|---|
| IPSAN Mode | 192-channel(384Mbps) recording, 19-channel(38Mbps)playback |
|---|
| Storage controller | Intel 64-bit multi-core processor |
|---|
| Memory | 4 GB |
|---|
| Front-end Service Interface | 3 10/100/1000 Mbps Ethernet interface 4 port 2.5Gbps Ethernet interface module（optional） |
|---|
| HDD | 12 SATA 16 SATA 24 SATA 36 SATA 48 SATA |
|---|
| interfaces | interfaces interfaces interfaces interfaces |
|---|
| Disk Capacity | 1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB,10TB,12TB,14TB,16TB,18TB,20TB |
|---|
| Video Management | Direct-to-iSCSI data block storage Video resource management Manual, scheduled, alarm-triggered recording Video download |
|---|
| Video Retrieval & Playback | Video retrieval Playback control (start, pause, stop, drag, single frame forward, multi-speed forward, and multi-speed back) Playback stream via UDP,TCP Playback video tag setting |
|---|
| RAID | JBOD and RAID 0,1, 5, 6 Dedicated hot-spare disk and global hot-spare disk |
|---|
| Maximum Number of Logic Resources | 1024 |
|---|
| Protocol Supported | iSCSI |
|---|
| Alarm Feature | Indicator alarm, mail alarm, SNMP Trap alarm, and short message alarm |
|---|
| 操作系統 | Windows and Linux |
|---|
| 供電 | 1 default, 1 optional |
|---|
| 電池 | 1default 1 default, 1 optional |
|---|

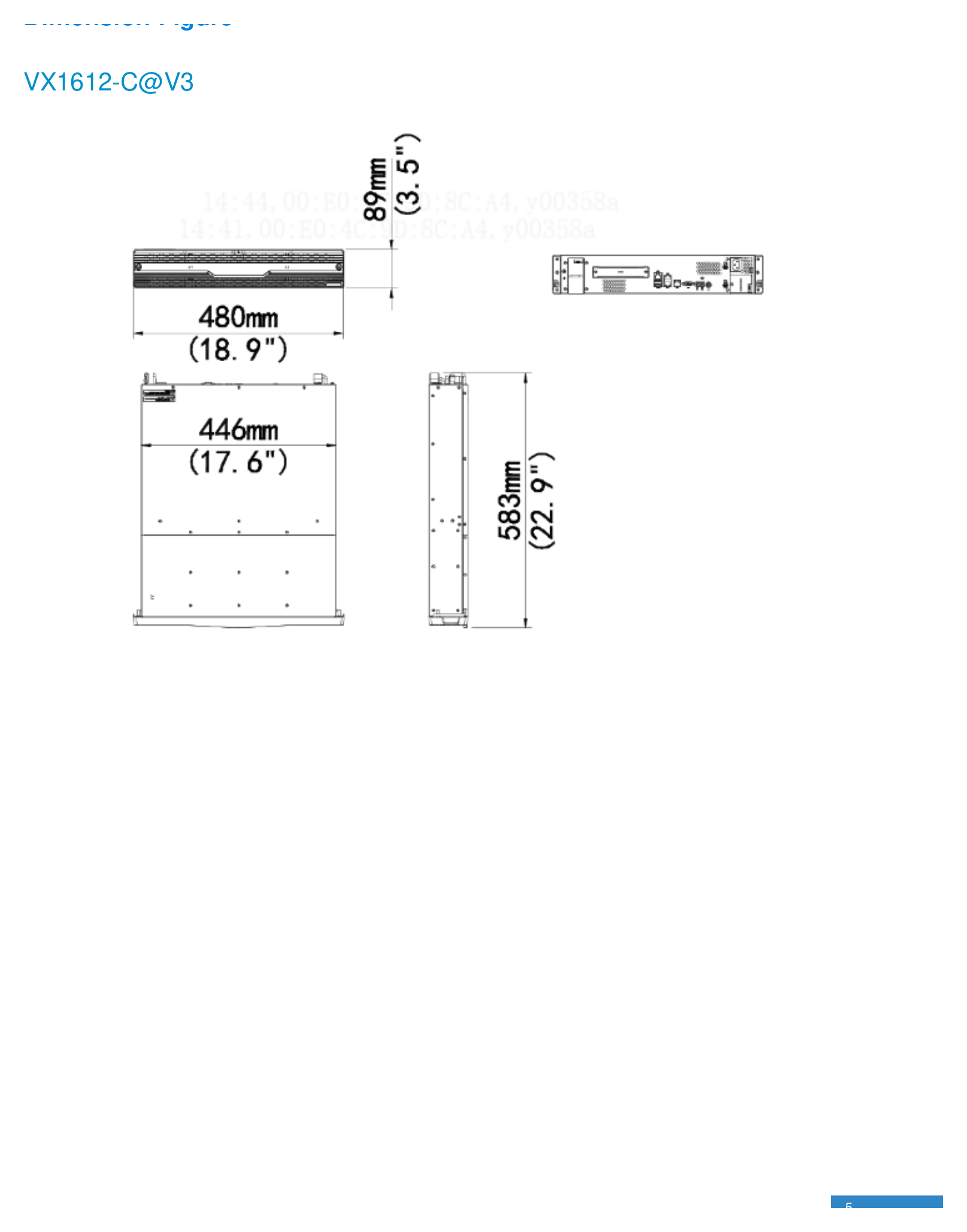

| 尺寸 | Controller Controller Controller Controller Controller |
|---|
| X 480m X583mm | 131mm X 175mm X 175mm X 178mm X 482mm X583mm 482mm X583m 482mm X583m 482mm X801m |
|---|
| 功耗 | Controller Controller Controller Controller Controller |
|---|
| enclosure: < | enclosure :< enclosure: < enclosure :< enclosure :< 186W(fully 231W(fully 331W(fully 506W(fully 700W(fully |
|---|
| configured) | configured) configured) configured) configured) |
|---|
| 重量 | Controller Controller Controller Controller Controller |
|---|
| enclosure : | enclosure : enclosure : enclosure : enclosure : Fully configured： Fully configured： Fully configured： Fully configured： Fully configured： |
|---|
| < 23kg | <27kg <35kg <45kg <67kg |
|---|
| Authentication certificate | CE, FCC, RoHS, WEEE |
|---|
| 工作溫度 | 5 °C~40°C / 41 °F ~ 104 °F,(10°C~ 35°C / 50 °F ~ 95°F Recommended) |
|---|
