| Item | VX1816-NAS VX1824-NAS VX1836-NAS VX1848-NAS |
|---|
| Controller /Memory | Intel 64-bit multi-core processor/8 GB(up to 64 GB) 5-port 10/100/1000 Mbps Ethernet interface 4-port 10/100/1000 Mbps Ethernet interface module（optional） Front-end Service Interface 2-port / 4 port 10 GE SFP＋ interface module（optional） 2-port 8Gbps FC port (optional) / 4-port 16Gbps FC port (optional) |
|---|
| PCI-E slot | 2 3 2 3 |
|---|
| HDMI | 2 |
|---|
| Serial port | 1 RS232 RJ45 port 1 RS232 RJ45 port 2 RS232 RJ45 port 1 RS232 RJ45 port |
|---|
| USB | 2 USB3.0 |
|---|
| Back-end Expansion Interface | 2 * 4x12Gbps Mini SAS HD port |
|---|
| Disk channel number | 16 24 36 48 |
|---|
| Maximum number of disks | 160 240 252 480 |
|---|
| Disk type | SATA/SSD/SAS/NL-SAS JBOD and RAID 0, 1, 10, 5, 50, 6, 50, RAID-NT RAID Dedicated hot-spare disk and global hot-spare disk |
|---|
| Maximum Number of Logic | 1024 Resources |
|---|
| NAS Management | Support soft quota and hard quota management on NAS resources Windows client: user mode and domain mode (the domain server completes user authority verification) NFS Client: Host mode and User mode (Kerberos) |
|---|
| Protocol Supported | NFS(V2、V3、V4)、CIFS/SMB、FTP 4 4 Snapshot rollback, Snapshot view, Snapshot copy, Consistent snapshot group, local backup, Software features remote backup, WORM, Heterogeneous virtualization, and Block Virtualization RAID-NT Indicator light alarm, buzzer alarm, email alarm, SNMP Trap alarm, SMS alarm, digital tube |
|---|
| Alarm Feature | alarm |
|---|
| System support | Windows、Linux、AIX、HP-UNIX、Solaris、VMware |
|---|
| 供電 | 1 default, 1 optional |
|---|
| 電池 | 1 1 default, 1 optional 1 1 default, 1 optional 131mm X 481.6mm 175mm X 481.6mm 175mm X 481.6mm 175mm X 481.6mm |
|---|
| Dimension(H×W×D) | X589mm X589mm X589mm X801mm |
|---|

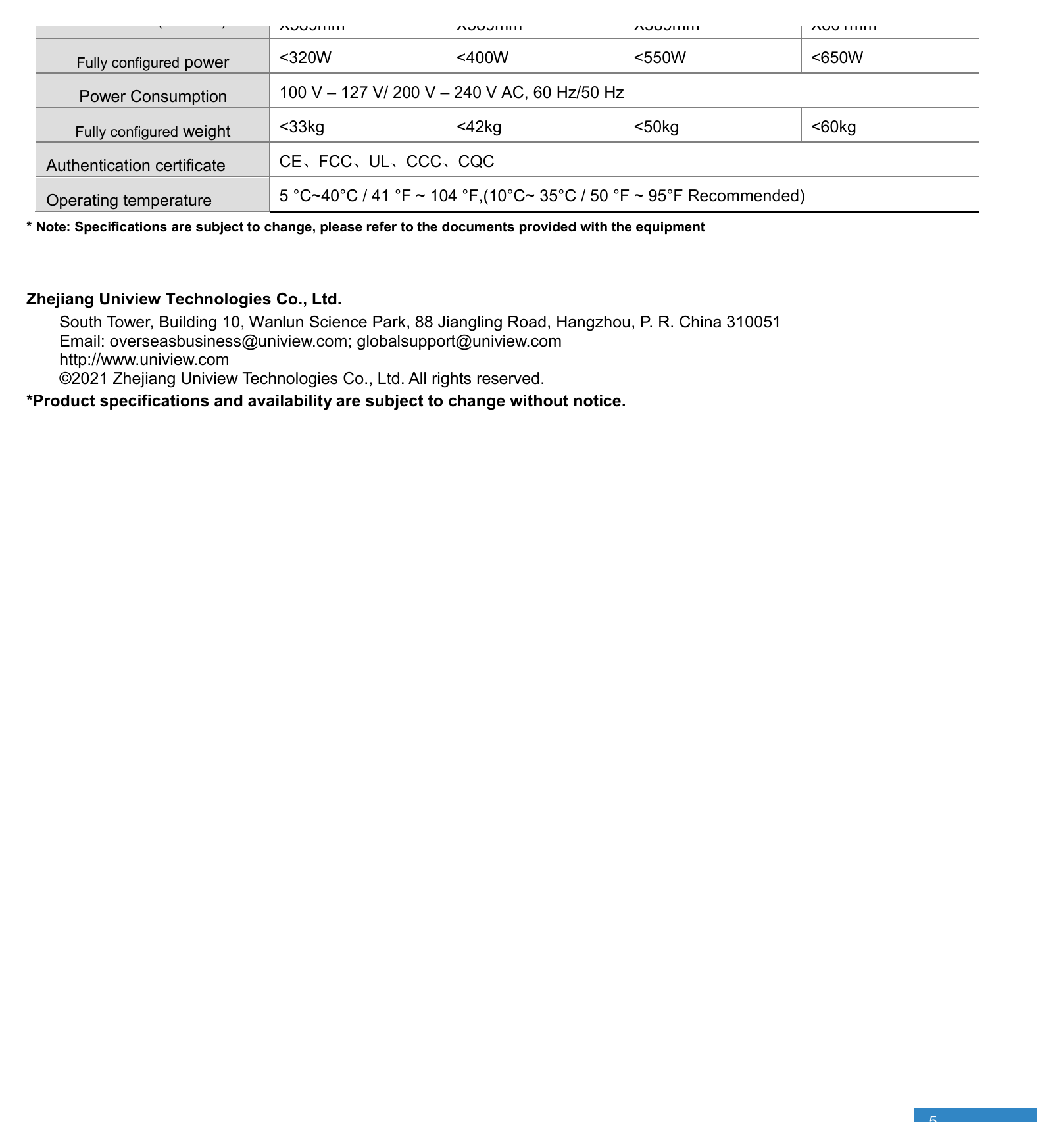

| Fully configured power | <320W <400W <550W <650W |
|---|
| 功耗 | 100 V – 127 V/ 200 V – 240 V AC, 60 Hz/50 Hz |
|---|
| Fully configured weight | <33kg <42kg <50kg <60kg |
|---|
| Authentication certificate | CE、FCC、UL、CCC、CQC |
|---|
| 工作溫度 | 5 °C~40°C / 41 °F ~ 104 °F,(10°C~ 35°C / 50 °F ~ 95°F Recommended) South Tower, Building 10, Wanlun Science Park, 88 Jiangling Road, Hangzhou, P. R. China 310051 Email: overseasbusiness@uniview.com; globalsupport@uniview.com http://www.uniview.com ©2021 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. |
|---|
