| Item | VX3024-V2 VX3048-V2 VX3060-V2 VX3060-V2@S |
|---|
| controller | 2 1 |
|---|
| performance | Video Mode 512-channel(1024Mbps) recording, 512-channel(1024Mbps) forwording, 51-channel(102Mbps)playback |
|---|
| IPSAN Mode | 512-channel(1024Mbps) recording, 51-channel(102Mbps)playback |
|---|
| Storage controller | Intel 64-bit multi-core processor |
|---|
| Memory | 16GB, up to 128 GB 8GB, up to 64 GB 5-port 10/100/1000 10-port 10/100/1000 Mbps Ethernet interface Mbps Ethernet |
|---|
| Front-end Service Interface | 4-port 10/100/1000 Mbps Ethernet interface module（optional） 2-port 10 GE SFP＋ interface module（optional） 4-port 10 GE SFP＋ interface module（optional） 2-port 4*12 Gbps Mini |
|---|
| Back-end Expansion Interface | 4-port 4*12 Gbps Mini SAS HD SAS HD |
|---|
| Host Connection | Up to 1024 24 SATA/SAS/NL 48 SATA/SAS/NL |
|---|
| HDD | 60 SATA/SAS/NL SAS interfaces |
|---|
| SAS interfaces | SAS interfaces |
|---|
| Disk Capacity | 1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB, 8 TB , 10 TB, 12 TB, 14 TB, 16TB, 18TB, 20TB JBOD and RAID 0,1,10, 5, 50,6 Dedicated hot-spare disk and global hot-spare disk |
|---|
| Maximum Number of Logic Resources | 1024 |
|---|
| Protocol Supported | iSCSI |
|---|
| Alarm Feature | Indicator alarm, mail alarm, SNMP Trap alarm, and short message alarm |
|---|
| 操作系統 | Windows and Linux |
|---|
| 供電 | default 2 default 2 optional 1 default 1, optional 1/2 |
|---|
| 電池 | default 2 default 1 Controller enclosure: 178mm×482mm×801 |
|---|
| Controller enclosure: | mm Controller enclosure: 178mm×482mm×981mm |
|---|

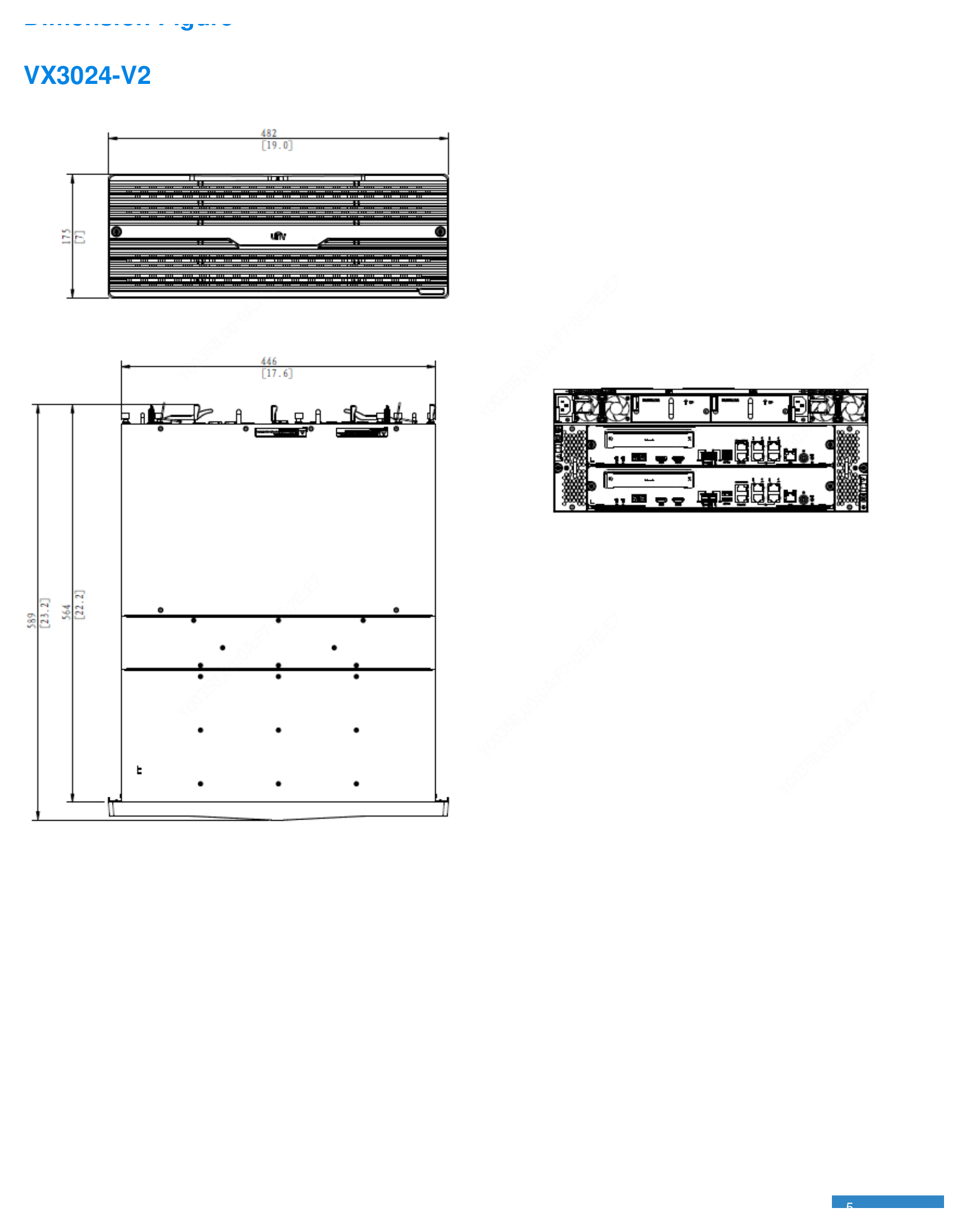

| Dimension(H ×W×D) | 175mm×482mm×589 |
|---|
| mm | Note ： for standard Note：for cabinet with 1200mm depth or above cabinet with 1000mm depth or above |
|---|
| Controller | Controller Controller Controller enclosure :< |
|---|
| 功耗 | enclosure :<550W enclosure :< 700W enclosure :< 1000W 900W (fully configured) (fully configured) (fully configured) (fully configured) |
|---|
| 重量 | enclosure :Fully enclosure :Fully enclosure :Fully enclosure :Fully |
|---|
| configured：< 45kg | configured：< 68 kg configured：< 96kg configured：< 93kg |
|---|
| Authentication certificate | CE, FCC, RoHS, WEEE |
|---|
| 工作溫度 | 5 °C~40°C / 41 °F ~ 104 °F,(10°C~ 35°C / 50 °F ~ 95°F Recommended) |
|---|
