| Electrical | S/N (flat at max volume) 63 dB |
|---|
| Mains power supply | S/N (flat at min volume/muted) >5 dB |
|---|
| Voltage | 115 - 230 VAC ±10%, Dynamic range 93 dB 50/60 Hz |
|---|
| S/N (flat at max volume) | >63 dB (mic); >70 dB (line) |
|---|
| Inrush Current PLE-2MA120-EU | 8/16 A (230/115 VAC) |
|---|
| S/N (flat at min volume/muted) | >75 dB |
|---|
| Inrush Current PLE-2MA240-EU | 9/19 A (230/115 VAC) |
|---|
| CMRR (mic) | >40 dB (50 Hz to 20 kHz) |
|---|
| Battery power supply | Headroom >17 dB |
|---|
| Current PLE-2MA120-EU | 6A |
|---|
| Phantom power supply | 16 V via 1.2 kohm (mic) |
|---|
| Current PLE-2MA240-EU | 12 A |
|---|
| Speech filter | -3 dB @ 315 Hz, high-pass, |
|---|
| Charge current | 0.5 ADC 6 dB/oct |
|---|
| Charge float voltage | 27.3 VDC VOX (input 1 & 2) attack time 150 ms; release time 2 s |
|---|
| Music inputs | 3x |
|---|
| PLE-2MA120-EU (mains) | 400 VA |
|---|
| Connector | Cinch, stereo converted to |
|---|
| PLE-2MA240-EU (mains) | 800 VA mono |
|---|
| 靈敏度 | 300 mV |
|---|
| 阻抗 | 22 kohm |
|---|
| 頻率響應 | 50 Hz to 20 kHz (+1/‑3 dB @ |
|---|
| ‑10 dB ref. rated output) | S/N (flat at max volume) >70 dB |
|---|
| Distortion | <1% @ rated output power, S/N (flat at min volume/muted) >75 dB 1 kHz |
|---|
| Headroom | >25 dB |
|---|
| Low Control | Max -12/+12 dB (frequency |
|---|
| is setting dependent) | Emergency / telephone 1x |
|---|
| Hi Control | Max -12/+12 dB (frequency Connector 7-pin, Euro style pluggable |
|---|
| RJ-45 input | 2x Sensitivity tel 1 V maximum |
|---|
| Call station input | For PLE-2CS(MM) Sensitivity 100V 100 V maximum |
|---|
| Wall panel input | For PLE-WP3S2Z Impedance >10 kohm |
|---|
| VOX | threshold 50 mV; attack time 150 ms; release time 2 s |
|---|
| Insert | 1x |
|---|
| Nominal level | 1V |
|---|
| Master/music output | 1x |
|---|
| Max / rated PLE-2MA120-EU | 180 W / 120 W |
|---|
| Max / rated PLE-2MA240-EU | 360 W / 240 W |
|---|
| PLE-2MA120-EU | 31 V (120 W) |
|---|
| PLE-2MA240-EU | 44 V (240 W) |
|---|

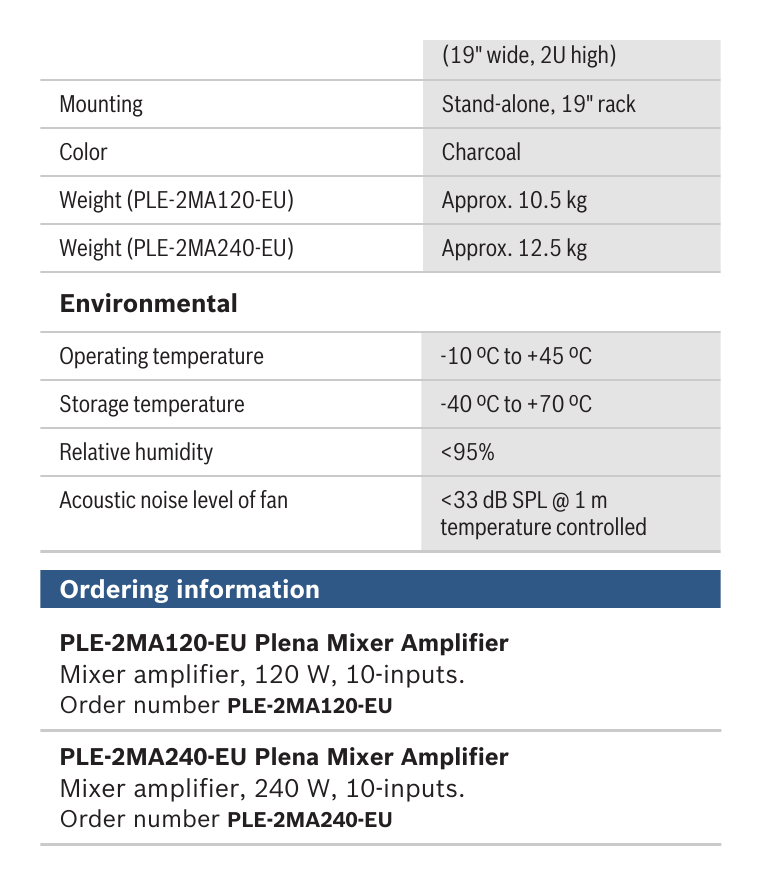

| Dimensions (H x W x D) | 100 x 430 x 270 mm (19" wide, 2U high) |
|---|
| Mounting | Stand-alone, 19" rack |
|---|
| 顏色 | Charcoal |
|---|
| Weight (PLE-2MA120-EU) | Approx. 10.5 kg |
|---|
| Weight (PLE-2MA240-EU) | Approx. 12.5 kg |
|---|
| 工作溫度 | -10 ºC to +45 ºC |
|---|
| 儲存溫度 | -40 ºC to +70 ºC |
|---|
| 相對濕度 | <95% |
|---|
| Acoustic noise level of fan | <33 dB SPL @ 1 m temperature controlled |
|---|
