| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/3" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 2688(H)×1520(V), 4.1MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Vari-focal lens / Fixed iris |
|---|
| Audio Interface | N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-13.5mm |
|---|
| 供電 | 12V DC ±25% |
|---|
| Max Aperture | F1.3 |
|---|
| 功耗 | Max 4.1W (12V DC, IR on) |
|---|
| Angle of View | H: 98°~26° Environmental |
|---|
| Focus Control | Manual -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 200mm Close Focus Distance 7.87'' Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| DORI Distance | Ingress Protection &Vandal IP67, IK10 Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Casing | Aluminium |
|---|
| Distance | Dimensions Φ122mm×88.9mm (Φ4.8"×3.5") |
|---|
| Definition | Wide Tele Net Weight 0.39kg (0.86lb) 25px/m Gross Weight 0.49kg (1.08lb) |
|---|
| Detect | 64m(210ft) 222m(728ft) (8px/ft) 63px/m |
|---|
| Observe | 26m(84ft) 89m(291ft) (19px/ft) 125px/m |
|---|
| Recognize | 13m(42ft) 44m(146ft) (38px/ft) 250ppm |
|---|
| Identify | 6m(21ft) 22m(73ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 4MP (2560×1440) |
|---|
| Frame Rate | 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P 1-channel BNC HDCVI high definition video output / Video Output CVBS video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDBW1400RP-VF | 4MP HDCVI IR Dome Camera, PAL 4MP Camera |
|---|
| DH-HAC-HDBW1400RN-VF | 4MP HDCVI IR Dome Camera, NTSC |
|---|
| PFB200C | In-ceiling mount (For use alone) Wall Mount Pole Mount |
|---|
| PFB203W | PFB203W + PFA152-E Wall mount (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFB203W PFA152-E wall mount) Rain Shade (For use with PFA137 wall |
|---|
| PFA200W | mount or with PFA137 wall mount and PFA152-E pole mount) Accessories |
|---|
| PFA106 | Adapter Plate(For use with PFB220C) |
|---|
| Ceiling Mount Bracket of Mini Dome & | Wall Mount with Rain Shade Ceiling Mount (Extensible) PFB220C |
|---|
| Eyeball Camera | PFA137+PFA200W PFA106+PFB220C |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun with Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| Accessories | Pole Mount with Rain Shade |
|---|
| Optional: | PFA137+PFA200W+PFA152-E |
|---|

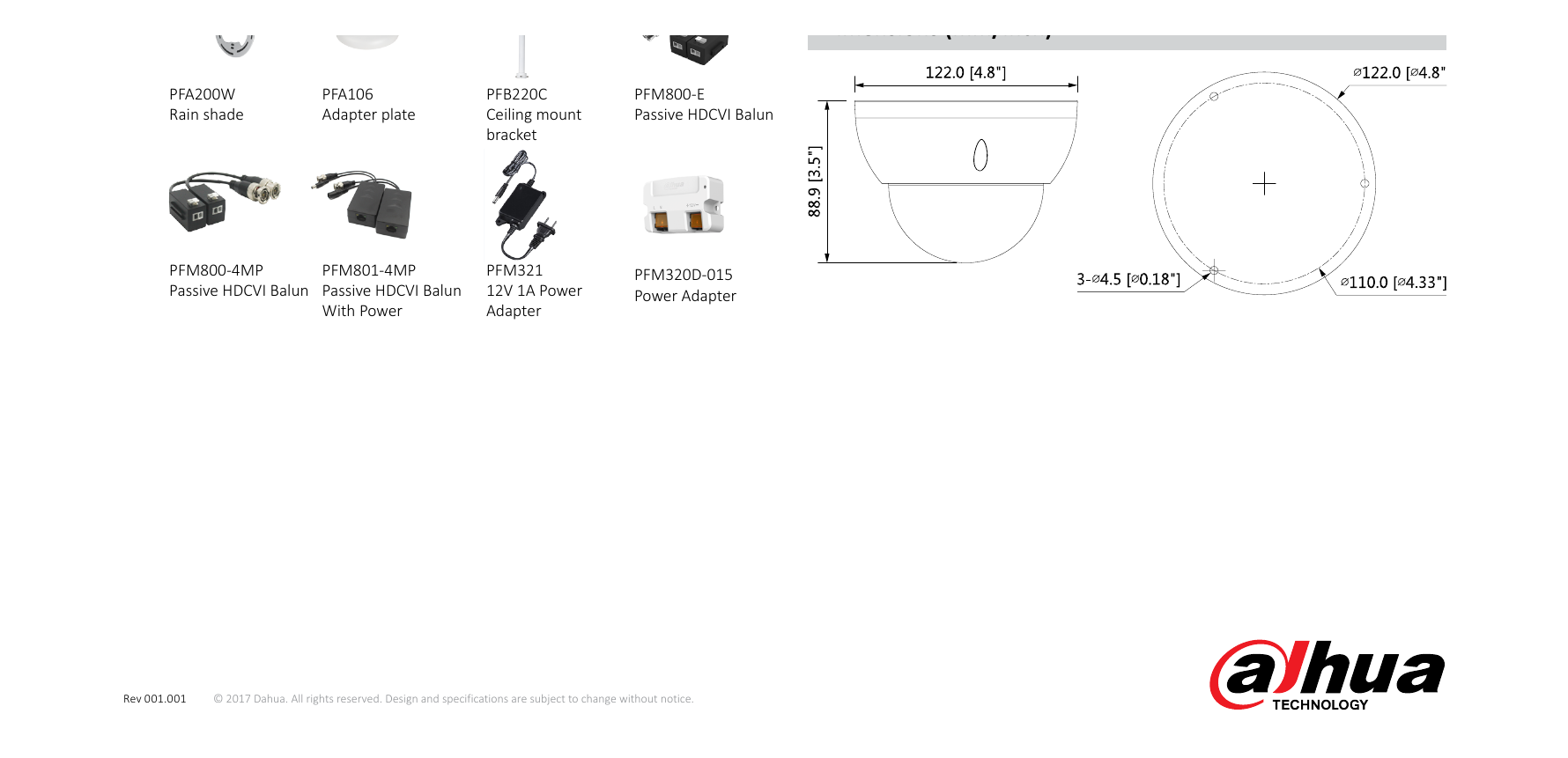

| Junction box | Inceiling mount Junction box Pole mount Dimensions (mm/inch) |
|---|
| Rain shade | Adapter plate Ceiling mount Passive HDCVI Balun bracket |
|---|
| Passive HDCVI Balun Passive HDCVI Balun | 12V 1A Power Power Adapter |
|---|
| With Power | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
