| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1928(H)×1088(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1.3s~1/30000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F1.4, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-12mm Power Supply 12V DC ±25% |
|---|
| Max Aperture | F1.4 Power Consumption Max 5W (12V DC, IR on) |
|---|
| Angle of View | H: 99°~37° Environmental |
|---|
| Focus Control | Auto / Manual -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) 300mm Close Focus Distance 11.81'' Storage Conditions 30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 & IK10 Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ122mm×88.9mm (Φ4.8"×3.5") |
|---|
| DORI 偵測距離 | Distance |
|---|
| Definition | Wide Tele Net Weight 0.45kg (0.99lb) 25px/m Gross Weight 0.60kg (1.32lb) |
|---|
| Detect | 47m(154ft) 129m(422ft) (8px/ft) 63px/m |
|---|
| Observe | 19m(61ft) 51m(169ft) (19px/ft) 125px/m |
|---|
| Recognize | 9m(31ft) 26m(84ft) (38px/ft) 250ppm |
|---|
| Identify | 5m(15ft) 13m(42ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & |
|---|
| Video Output | 1-channel BNC CVBS video output CVBS tester out www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDBW2221RP-Z | 2MP WDR HDCVI IR Dome Camera, PAL 2MP Camera |
|---|
| DH-HAC-HDBW2221RN-Z | 2MP WDR HDCVI IR Dome Camera, NTSC |
|---|
| PFB200C | In-ceiling mount (For use alone) |
|---|
| Wall Mount | Pole Mount |
|---|
| Wall mount (For use alone or with | PFB203W PFB203W + PFA152-E PFB203W PFA152-E pole mount) Pole mount (For use with PFB203W wall PFA152-E mount) Rain shade (For use with PFB203W wall |
|---|
| PFA200W | mount or with PFB203W wall mount and PFA152-E pole mount) |
|---|
| PFA106 | Adapter Plate(For use with PFB220C) Accessories Ceiling Mount Bracket of Mini Dome & PFB220C |
|---|
| Eyeball Camera | Wall Mount with Rain Shade Ceiling Mount (Extensible) |
|---|
| PFA137+PFA200W | PFA106+PFB220C |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM809-4MP | 16 channel Passive HDCVI Balun Receiver |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter Pole Mount with Rain Shade |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter PFA137+PFA200W+PFA152-E Accessories Optional: |
|---|

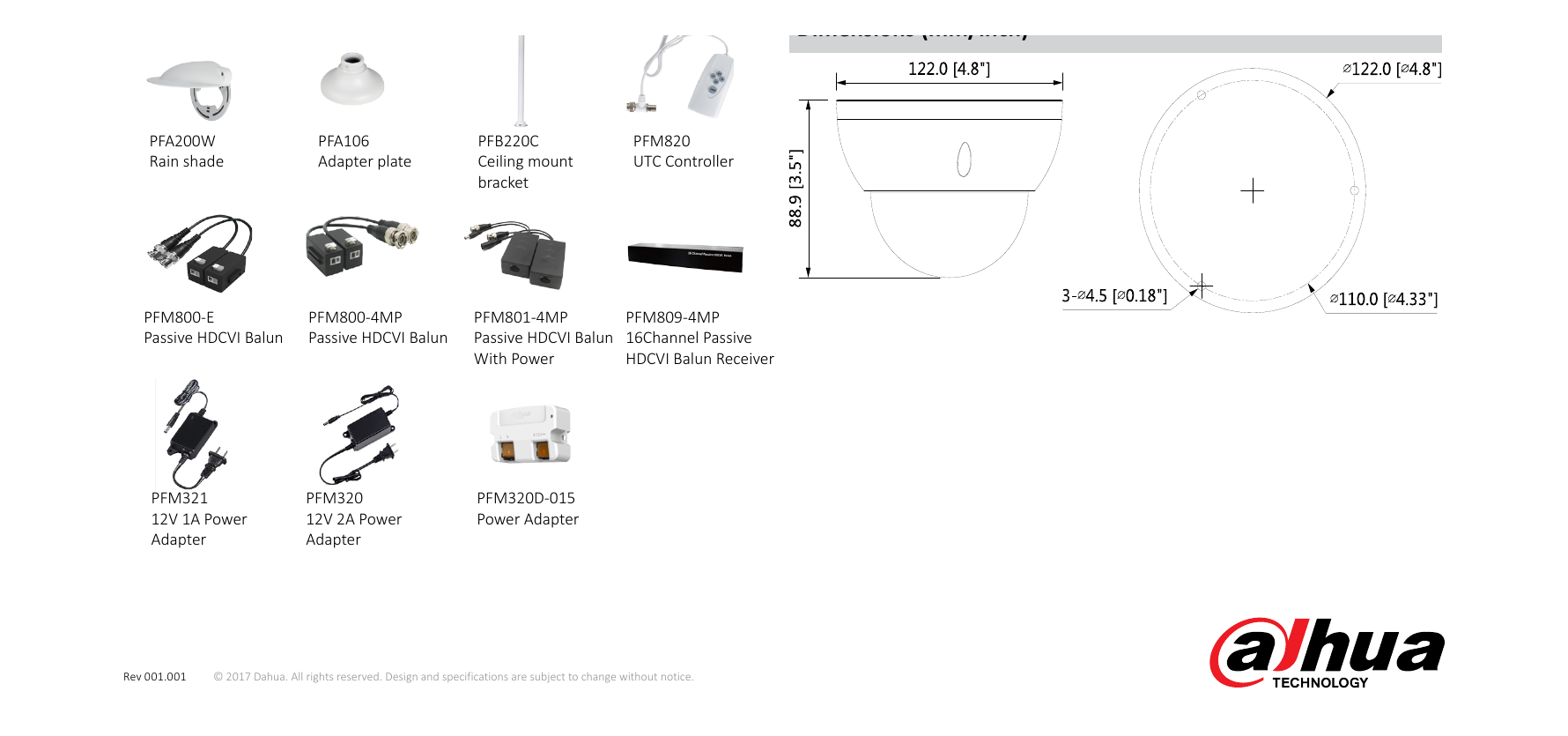

| Junction box | Inceiling mount Junction box Pole mount Dimensions (mm/inch) |
|---|
| Rain shade | Adapter plate Ceiling mount UTC Controller bracket |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun 16Channel Passive |
|---|
| With Power | HDCVI Balun Receiver |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
