| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1937(H)×1097(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1/3s~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-13.5mm Power Supply AC 24V±25%/DC 12V±25% |
|---|
| Max Aperture | F1.3 Power Consumption Max 8W (12V DC, IR on) |
|---|
| Angle of View | H: 102°~29° Environmental |
|---|
| Focus Control | Auto / Manual -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 200mm Close Focus Distance 7.87'' Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| DORI Distance | Ingress Protection &Vandal IP67 & IK10 Resistance *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ122mm×88.9mm (Φ4.8"×3.5") Distance |
|---|
| 淨重 | 0.48kg (1.06lb) |
|---|
| Wide | Tele |
|---|
| 毛重 | 0.63kg (1.39lb) |
|---|

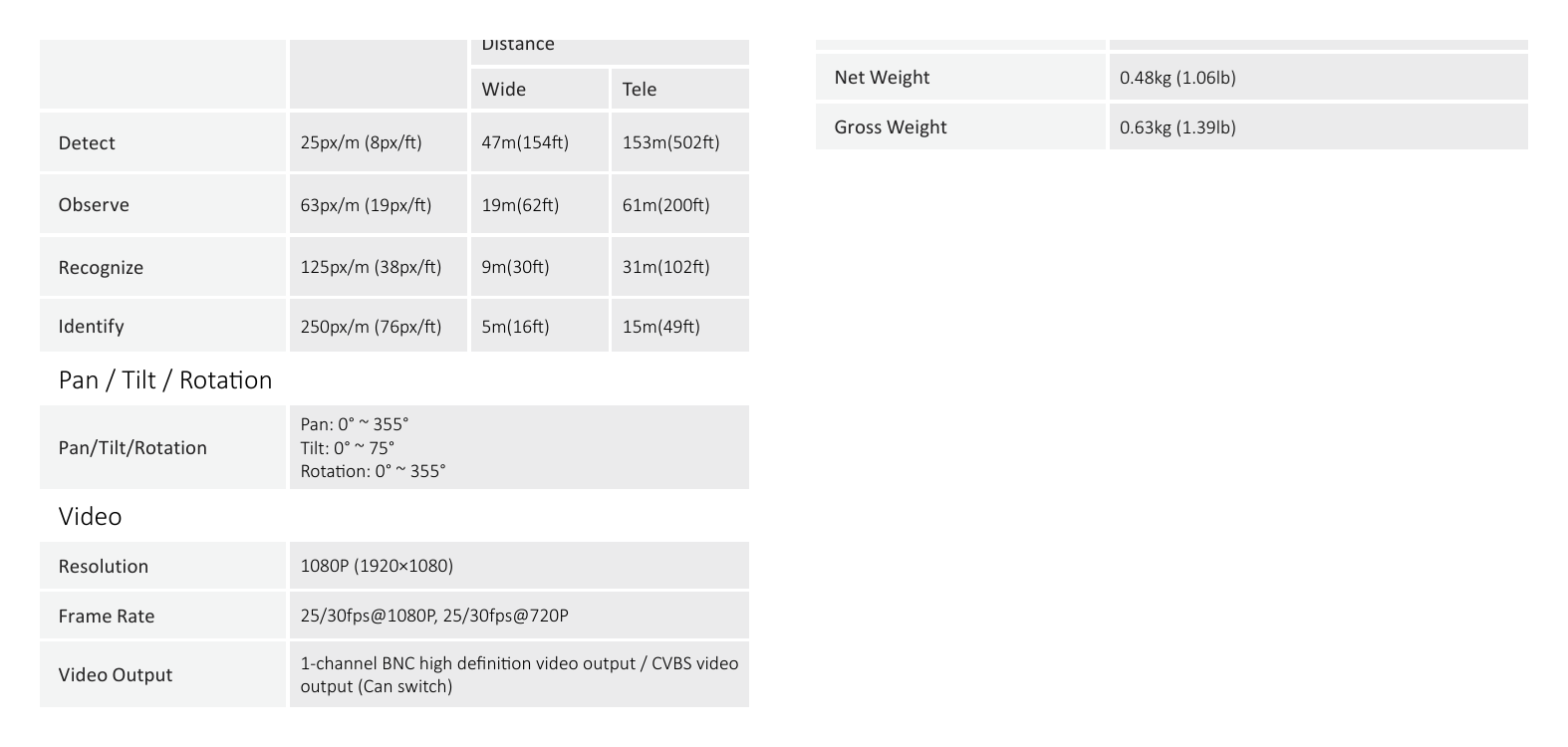

| Detect | 25px/m (8px/ft) 47m(154ft) 153m(502ft) |
|---|
| Observe | 63px/m (19px/ft) 19m(62ft) 61m(200ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 31m(102ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(16ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30fps@720P 1-channel BNC high definition video output / CVBS video Video Output output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description 2MP Starlight HDCVI IR Dome DH-HAC-HDBW2231RP-Z-DP Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Dome DH-HAC-HDBW2231RN-Z-DP Camera, NTSC |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB200C | Inceiling mount (For use alone) PFB203W PFB203W + PFA152-E Junction box (For use alone or PFB203W with PFA152-E pole mount) Pole mount (For use with PFA137 PFA152-E junction box) |
|---|
| PFB200W | Rain Shade of Dome Camera Adapter Plate of Mini Dome & PFA106 Eyeball Camera |
|---|
| Ceiling Mount Bracket of Mini | Wall Mount with Rain Shade Ceiling Mount (Extensible) PFB220C |
|---|
| Accessories | Dome & Eyeball Camera |
|---|
| PFA137+PFA200W | PFA106+PFB220C |
|---|
| PFM820 | UTC Controller |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun with Power |
|---|
| PFM801-4MP | Passive HDCVI Balun with Power 16 Channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| PFM321 | 12V 1A Power Adapter Pole Mount with Rain Shade |
|---|
| PFM320 | 12V 2A Power Adapter PFA137+PFA200W+PFA152-E |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Inceiling mount Junction box Pole mount |
|---|
| PFA200W | PFA106 PFB220C PFM820 |
|---|
| Rain shade | Adapter plate Ceiling mount UTC Controller bracket |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun 16Channel Passive |
|---|
| With Power | HDCVI Balun Receiver |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
