| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/3" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1280(H)×720(V), 1MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.05Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 20 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Vari-focal lens / Fixed iris |
|---|
| Audio Interface | N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-13.5mm |
|---|
| 供電 | 12V DC ±25% |
|---|
| Max Aperture | F1.3 |
|---|
| 功耗 | Max 3.0W (12V DC, IR on) |
|---|
| Angle of View | H: 91°~25° Environmental |
|---|
| Focus Control | Manual -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 200mm Close Focus Distance 7.87'' Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Distance | Dimensions Φ119mm×97.4mm (Φ4.69"×3.83") |
|---|
| Definition | Wide Tele Net Weight 0.37kg (0.81lb) 25px/m Gross Weight 0.51kg (1.12lb) |
|---|
| Detect | 34m(112ft) 118m(388ft) (8px/ft) 63px/m |
|---|
| Observe | 14m(45ft) 47m(155ft) (19px/ft) 125px/m |
|---|
| Recognize | 7m(22ft) 24m(78ft) (38px/ft) 250px/m |
|---|
| Identify | 3m(11ft) 12m(39ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 720P (1280×720) |
|---|
| Frame Rate | 25/30fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA13B | PFB204W + PFA152-E |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDW1100RP-VF | 1MP HDCVI IR Eyeball Camera, PAL 1MP Camera |
|---|
| DH-HAC-HDW1100RN-VF | 1MP HDCVI IR Eyeball Camera, NTSC |
|---|
| PFM820 | UTC Controller |
|---|
| Accessories | PFB204W |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

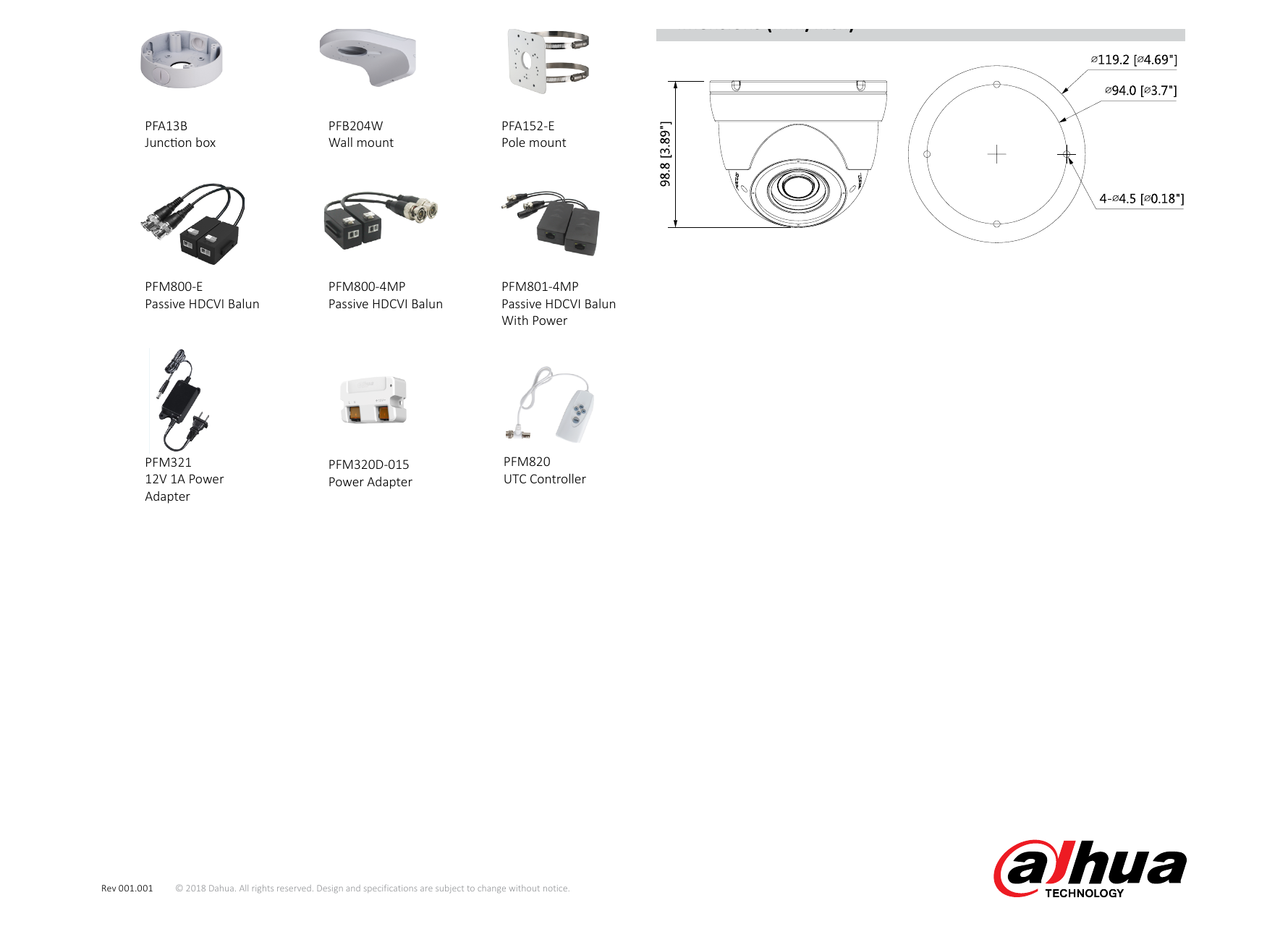

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Wall mount Pole mount |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun With Power |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
