| System | Arecont Vision, AXIS, Bosch, Brickcom, Canon, |
|---|
| Third-party Support | CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, |
|---|
| Main Processor | Dual-core embedded processor Samsung, Sanyo, Sony, Videotec, and more |
|---|
| 操作系統 | Embedded LINUX Network |
|---|
| Audio and Video | Interface 1 RJ-45 port (10/100Mbps) |
|---|
| IP Camera Input | 4 Channel Ethernet Port 1 Independent 100Mbps Ethernet Port |
|---|
| Two-way Talk | N/A PoE 4 ports (IEEE802.3at/af) HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, |
|---|
| Display | Network Function DHCP, DNS, IP Filter, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|---|
| 接口 | 1 HDMI, 1 VGA |
|---|
| Optical Fiber Interface | N/A |
|---|
| 解像度 | 1920×1080, 1280×1024, 1280×720, 1024×768 |
|---|
| Max. User Access | 128 users |
|---|
| Decoding Capacity | 2ch@1080P 30fps |
|---|
| Smart Phone | iPhone, iPad, Android |
|---|
| Multi-screen Display | 1/4 Interoperability ONVIF, SDK, CGI Conformant OSD Camera title, Time, Camera lock, Motion detection, Storage Recording |
|---|
| Internal HDD | 1 SATA III Port, up to 6TB capacity for each HDD Recording |
|---|
| HDD Mode | Single |
|---|
| Compression | H.265/H.264 |
|---|
| eSATA | N/A |
|---|
| Record Rate | 48Mbps |
|---|
| USB | 2 ports (2 Rear USB2.0) |
|---|
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
|---|
| RS232 | N/A |
|---|
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop RS485 N/A 1~120 min (default: 60 min), Pre-record: 1~30 sec, Record Interval Post-record: 10~300 sec Electrical |
|---|
| Video Detection and Alarm | Power Supply Single, DC48V/1.25A Recording, PTZ, Tour, Video Push, Snapshot, and NVR: <6W (without HDD) Trigger Events |
|---|
| Screen Tips | Power Consumption PoE: Max 25.5w for single port, 50w in total Motion Detection, MD Zones: 396 (22 × 18), Video Detection and Tampering Environmental |
|---|
| 警報輸入 | N/A |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|---|
| Relay Output | N/A Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|---|
| Playback and Backup | Construction |
|---|
| Sync Playback | 1/4 Smart 1U, 204.6mm×204.6mm×45.2m Dimensions(W×D×H) (8.055" x 8.055" x 1.78") Time /Date, MD and Exact Search |
|---|
| Search Mode | (accurate to second) Net Weight 0.43kg (0.95 lb) (without HDD) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next Gross Weight 1.07kg(2.36 lb)(without HDD) |
|---|
| Playback Function | File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom Certifications |
|---|
| Backup Mode | USB Device/Network CE EN55032, EN55024, EN50130-4, EN60950-1 |
|---|
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description 4 Channel Smart 1U H.265 4PoE 4 Channel NVR NVR1B04-4P/L Network Video Recorder |
|---|

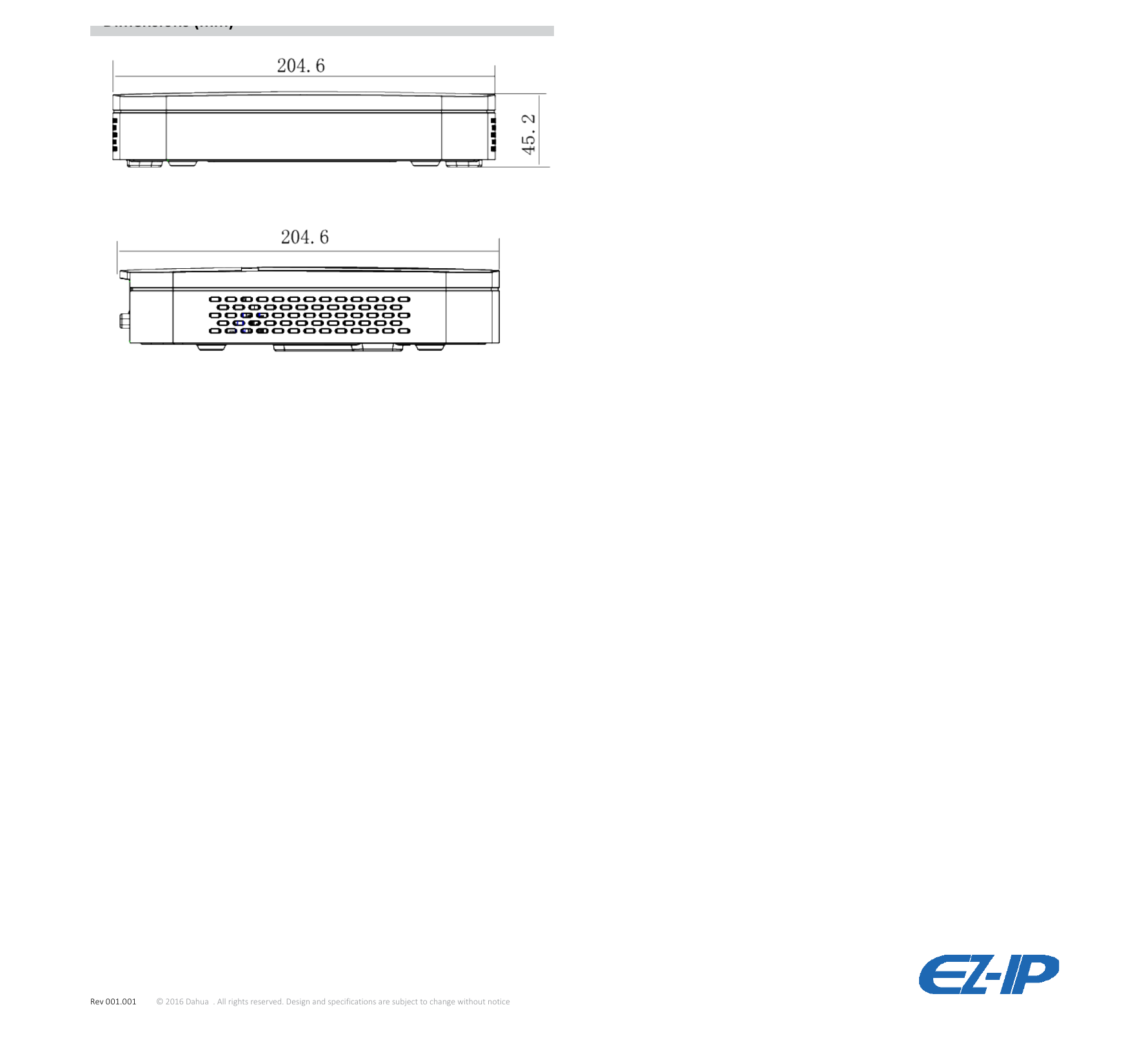

| Accessories | N/A N/A Dimensions (mm) |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice |
|---|
