| Camera | Electronic Defog Yes |
|---|
| 影像感測器 | 1/2.7 inch CMOS Mirror Off/On |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Privacy Masking Off/On (8 area, rectangle) |
|---|
| Scanning System | Progressive Certifications |
|---|
| PAL: 1/25s–1/100000s | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000- Electronic Shutter Speed |
|---|
| NTSC: 1/30s–1/100000s | 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017,E N50130-4:2011+A1:2014), EN62368-1:2014 +A11:20 |
|---|
| Certifications | 17 |
|---|
| S/N Ratio | >65dB FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-201 4)UL (UL60950-1+CAN/CSA C22.2 No.60950-1-07) |
|---|
| Minimum Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on Port |
|---|
| Fill Light Working Distance | 30 m (98.4 ft) Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| IR On/Off Control | Auto; manual BNC port |
|---|
| IR LED Number | 12 Power |
|---|
| Pan: 0°–360° | Power Supply 12V ±30% DC |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Power Consumption Max 3.1W (12V DC, IR on) |
|---|
| 鏡頭 | Environment |
|---|
| 鏡頭類型 | Fixed-focal -40°C to +60°C (-40°F to 140°F); <95% (non- Operating Temperature condensation) |
|---|
| Mount Type | M12 -40°C to +60°C (-40°F to 140°F); <95% (non- Storage Temperature condensation) |
|---|
| 焦距 | 2.8 mm; 3.6 mm |
|---|
| Protection Grade | IP67 |
|---|
| Max. Aperture | F1.9 Structure 2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) Casing Mental throughout the whole casing Field of View 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) Camera Dimensions φ93.4 mm × 79.4 mm ( φ3.68" × 3.13" ) |
|---|
| 淨重 | 0.27 Kg (0.60 lb) |
|---|
| 光圈類型 | Fixed iris |
|---|
| 毛重 | 0.34 Kg (0.75 lb) 2.8 mm: 0.5 m (1.7 ft) Close Focus Distance 3.6 mm: 0.8 m (2.6 ft) |
|---|
| DORI 偵測距離 | 38.6 m 15.4 m 7.7 m 3.9 m 2.8 mm |
|---|
| Distance | (126.6 ft) (50.5 ft) (25.3 ft) (12.8 ft) 49.7 m 19.9 m 9.9 m 5m 3.6 mm (163.1 ft) (65.3 ft) (32.5 ft) (16.4 ft) CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; Frame Rate TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H 1080P (1920×1080); 720P (1280×720); 960H (960× Resolution 576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D NR www.dahuasecurity.com |
|---|
| Ordering Information | Accessories |
|---|

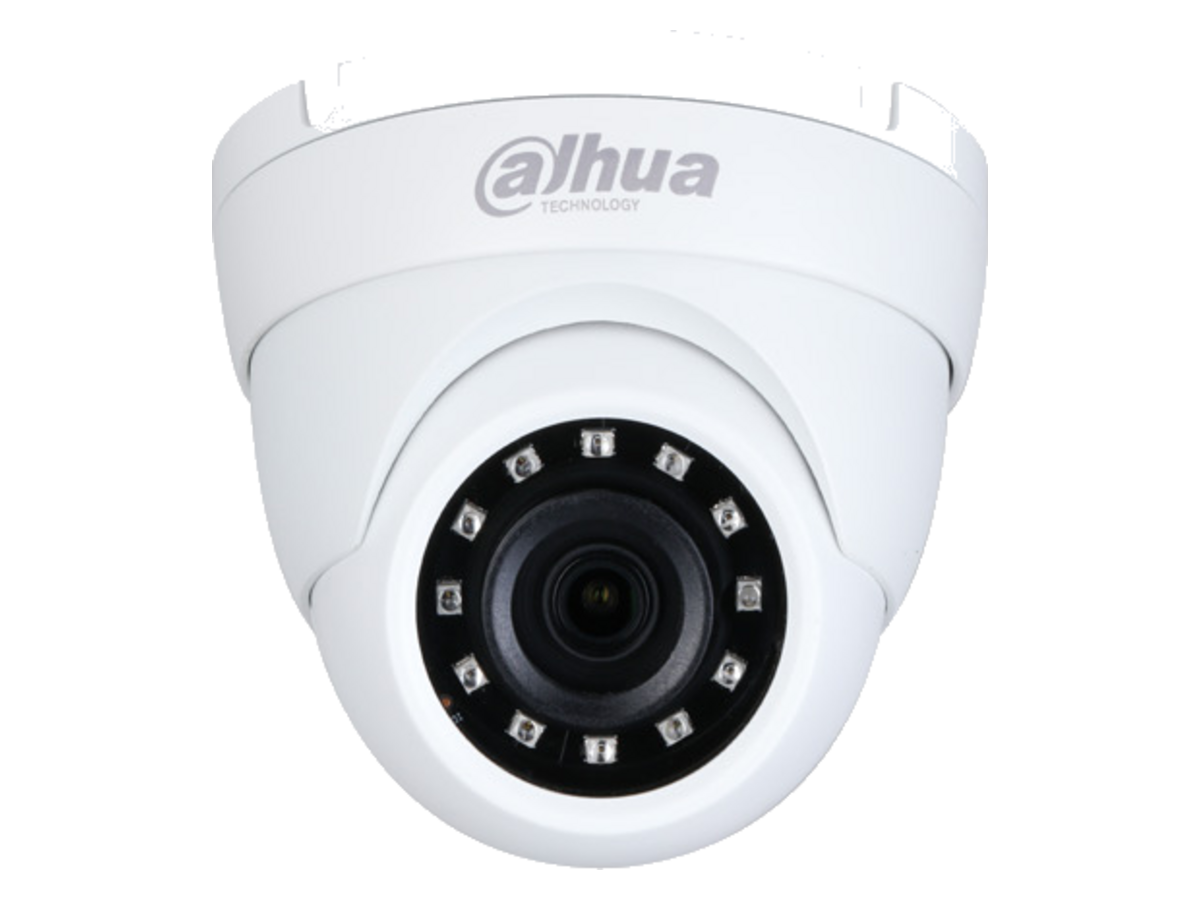

| 類型 | Part Number Description Optional: DH-HAC-HDW1200MP 2.8mm DH-HAC-HDW1200MN 2.8mm 2MP Camera 2MP HDCVI IR Eyeball Camera PFA13A-E PFA130-E PFB204W |
|---|
| DH-HAC-HDW1200MP | Junction box P66 Junction box Wall Mount Bracket 3.6mm (For use alone or with PFA152-E) DH-HAC-HDW1200MN 3.6mm |
|---|
| PFA13A-E | Junction box |
|---|
| PFA130-E | IP66 Junction box |
|---|
| Wall Mount Bracket (For use alone or with | PFA152-E PFA106 PFB220C |
|---|
| PFB204W | PFA152-E) Mount Adapter |
|---|
| Pole Mount Bracket | Ceiling Mount Bracket (For use with PFB204W) (For use with PFB220C) (For use with PFA106) |
|---|
| PFA152-E | Pole Mount Bracket (For use with PFB204W) |
|---|
| PFA106 | Mount Adapter (For use with PFB220C) Accessories |
|---|
| PFB220C | Ceiling Mount Bracket (For use with PFA106) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter PFM800-E PFM321D PFM820 |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter UTC Controller |
|---|
| PFM820 | UTC Controller |
|---|
| PFM904 | Integrated Mount Tester PFM904 Integrated Mount Tester |
|---|
| Ceiling Mount | Wall Mount Pole Mount Hanging Mount Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
