| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D |
|---|
| PAL: 1/25~1/100000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 30m (98feet) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 24 Interface |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Vari-focal lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply 12V DC ±25% |
|---|
| 焦距 | 2.7-13.5mm Power Consumption Max 3.5W (12V DC, IR on) |
|---|
| Max Aperture | F1.3 Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| Angle of View | H: 106°~30° Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| Focus Control | Manual Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH 200mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 7.87'' Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Dimensions Φ119mm×97.4mm (Φ4.69"×3.83") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.37kg (0.82lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 0.51kg (1.12lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 45m(148ft) 148m(486ft) |
|---|
| Observe | 63px/m (19px/ft) 18m(59ft) 59m(194ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 30m(97ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(15ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| 類型 | Part Number Description PFA13B PFB204W + PFA152-E |
|---|

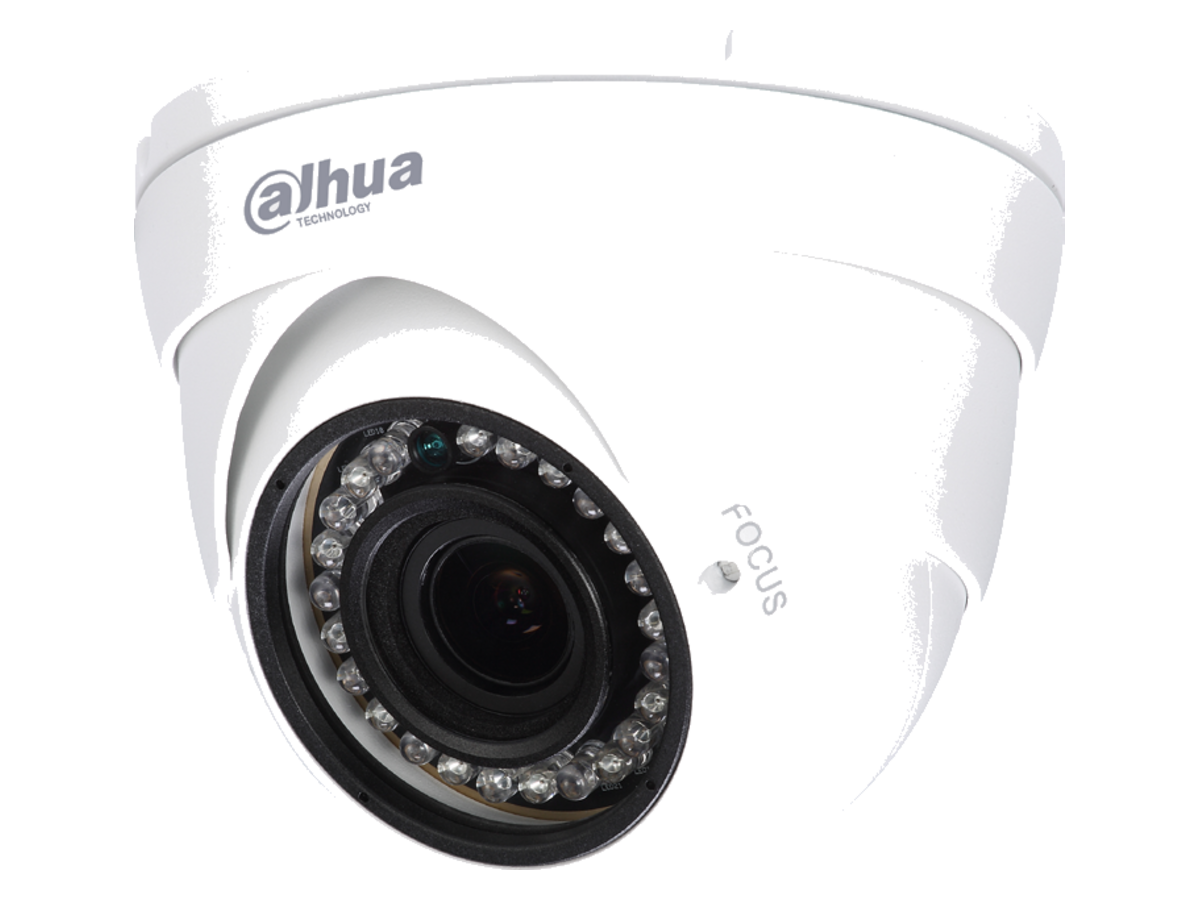

| DH-HAC-HDW1200RP-VF | 2MP HDCVI IR Eyeball Camera, PAL 2MP Camera |
|---|
| DH-HAC-HDW1200RN-VF | 2MP HDCVI IR Eyeball Camera, NTSC |
|---|
| PFA13B | Junction box (For use alone) Wall mount (For use alone or with PFB204W PFA152-E pole mount) Pole mount (For use with PFB204W PFA152-E wall mount) |
|---|
| PFM820 | UTC Controller Wall Mount |
|---|
| Accessories | PFB204W |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

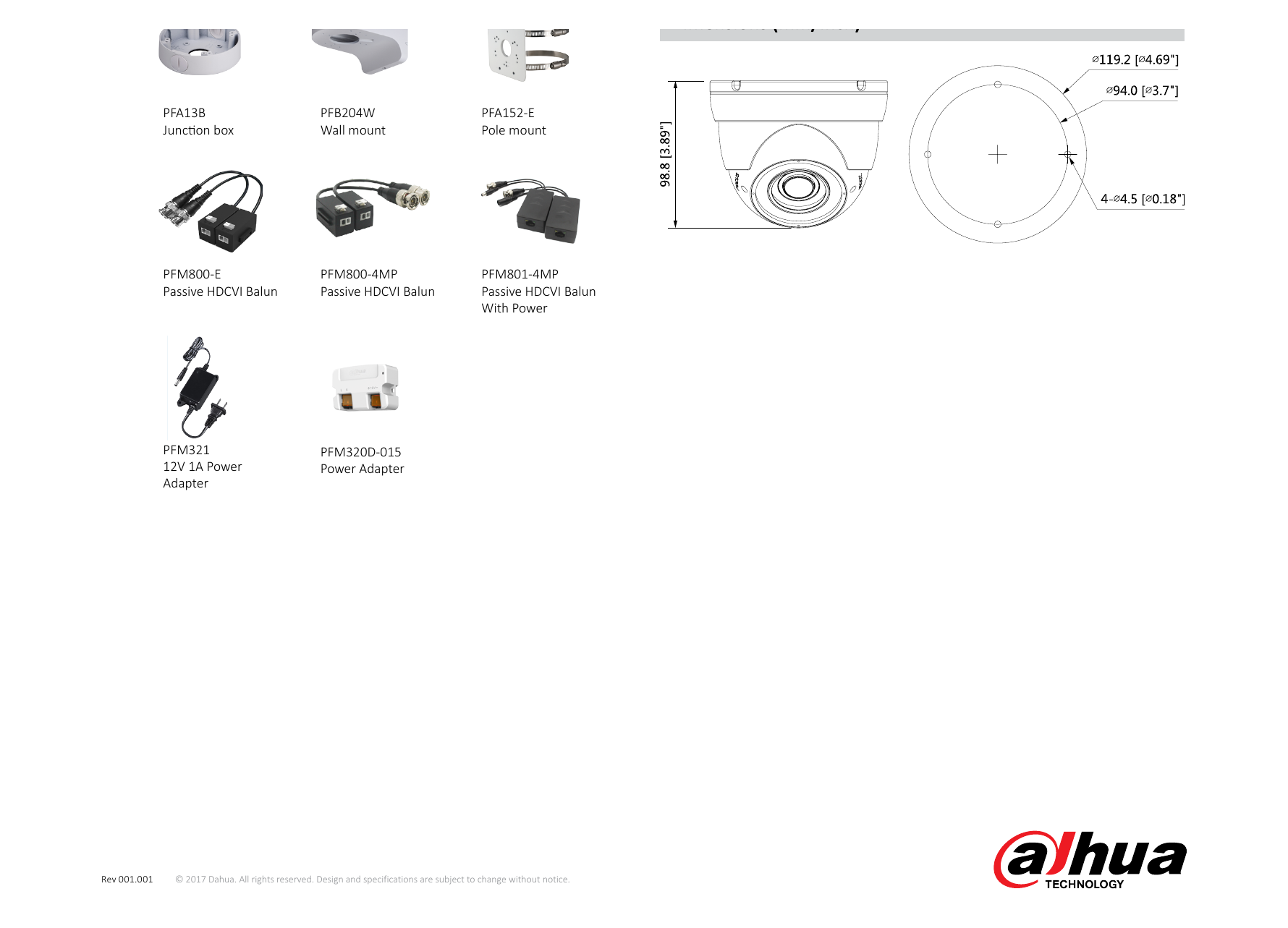

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Wall mount Pole mount |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun With Power |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
