| Camera | Gain Control Auto; manual |
|---|
| 影像感測器 | 1/2.7 inch CMOS Noise Reduction 2D NR |
|---|
| Effective Pixels | 2592 (H) × 1944 (V), 5MP Smart IR Yes |
|---|
| Scanning System | Progressive Mirror Off/On |
|---|
| PAL: 1/25s–1/100000s | Privacy Masking Off/On (8 area, rectangle) Electronic Shutter Speed NTSC: 1/30s–1/100000s Certifications |
|---|
| S/N Ratio | >65dB CE (EN55032, EN55024, EN50130-4,EN60950-1) |
|---|
| Minimum Illumination | 0.02Lux/F1.8, 30IRE, 0Lux IR on Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Fill Light Working Distance | 60 m (196.85 ft) Port |
|---|
| IR On/Off Control | Auto; manual Video output choices of CVI/TVI/AHD/CVBS by one Video Output BNC port |
|---|
| IR LED Number | 4 Power Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Power Supply 12V ±30% DC Rotation: 0°–360° |
|---|
| 功耗 | Max 12W (12V DC, IR on) |
|---|
| 鏡頭類型 | Motorized-focal -40°C to +60°C (-40°F to 140°F);<95% (non- |
|---|
| Mount Type | φ14 Operating Temperature condensation) |
|---|
| 焦距 | 2.7 mm–12 mm -40°C to +60°C (-40°F to 140°F);<95% (non- Storage Temperature condensation) |
|---|
| Max. Aperture | F1.8–F3.3 |
|---|
| Protection Grade | IP67 2.7 mm: 122° × 93° × 68° (diagonal x horizontal x |
|---|
| Angle of View | vertical) Structure 12 mm: 37° × 30° × 22° (diagonal x horizontal x vertical) |
|---|
| Casing | Metal throughout the whole casing |
|---|
| 光圈類型 | Fixed iris |
|---|
| Camera Dimensions | 209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56") |
|---|
| Auto Focus | N/A |
|---|
| 淨重 | 570g (1.25lb) |
|---|
| Close Focus Distance | 0.8 m (2.62 ft) |
|---|
| 毛重 | 740g (1.63lb) |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | 67.0 m 27.0 m 13.0 m 6.7 m 2.7mm |
|---|
| Distance | (219.81 ft) (88.58 ft) (42.65 ft) (21.98 ft) 198.0 m 79.0 m 39 m 12.0 m 12mm (649.60 ft) (259.18 ft) (127.95 ft) (39.37 ft) CVI: PAL: 5M@20fps; 4M@25fps; 1080P@25fps; NTSC: 5M@20fps; 4M@30fps; 1080P@30fps AHD: PAL: 5M@20fps; 4M@25fps; 1080P@25fps; NTSC: 5M@20fps; 4M@30fps; 1080P@30fps Frame Rate TVI: PAL: 5M@20fps; 4M@25fps; 1080P@25fps; NTSC: 5M@20fps; 4M@30fps; 1080P@30fps CVBS: PAL: 960H; NTSC: |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/WDR |
|---|
| WDR | DWDR www.dahuasecurity.com |
|---|
| Ordering Information | Junction Mount Pole Mount |
|---|
| 類型 | Part Number Description PFA130-E PFA130-E + PFA152-E |
|---|
| DH-HAC-HFW1500RP- | 5MP HDCVI IR Bullet Camera, PAL Z-IRE6 5MP Camera |
|---|
| DH-HAC-HFW1500RN- | 5MP HDCVI IR Bullet Camera, NTSC Z-IRE6 |
|---|
| PFA130-E | Junction box (For use alone) Pole mount (For use with PFB203W |
|---|
| PFA152-E | wall mount) |
|---|
| PFM820 | UTC Controller |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| Accessories | PFM800-4K Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|

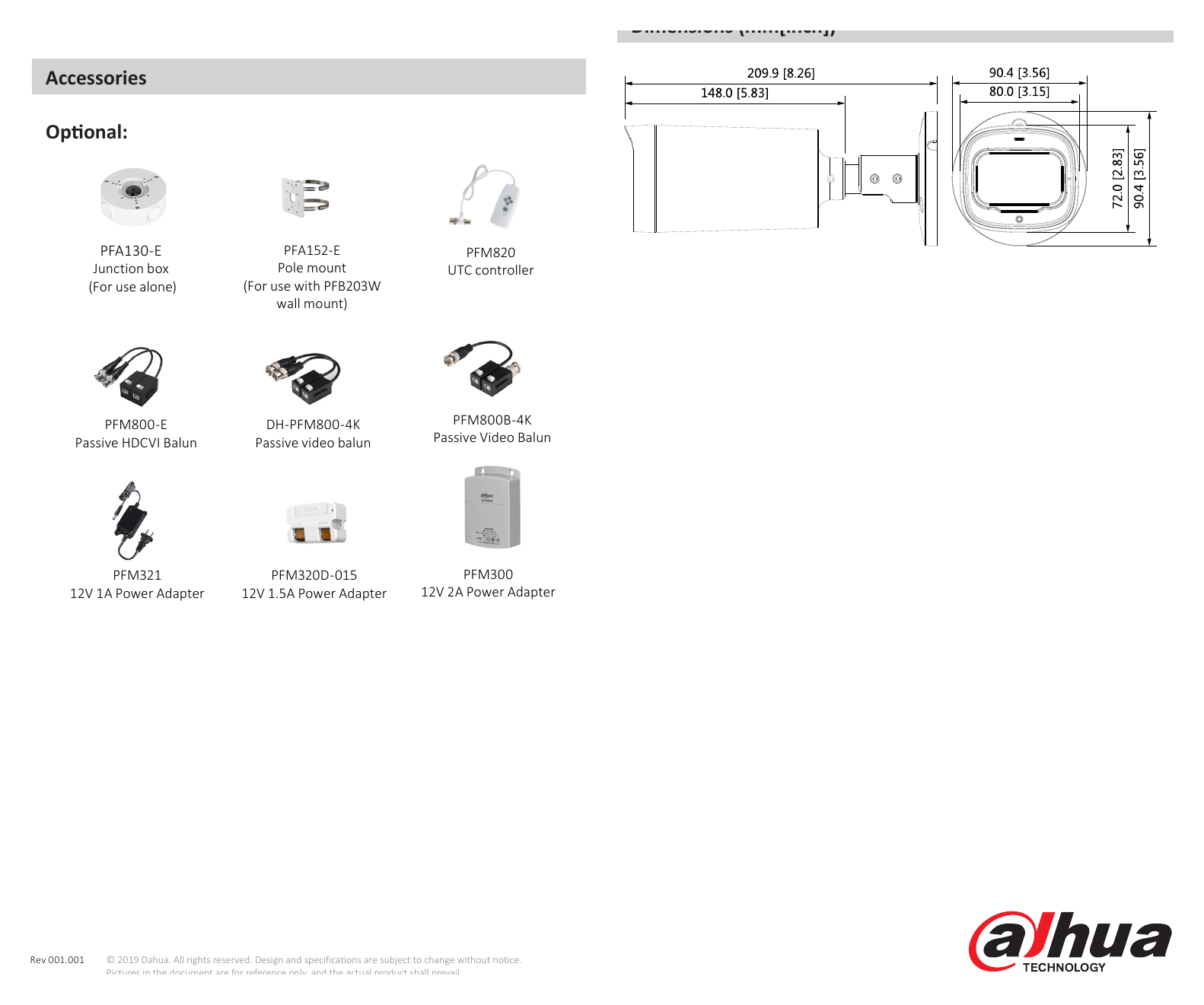

| PFM300 | 12V 2A Power Adapter Dimensions (mm[inch]) Accessories Optional: |
|---|
| Junction box | Pole mount UTC controller (For use alone) (For use with PFB203W wall mount) |
|---|
| Passive HDCVI Balun | Passive video balun Passive Video Balun |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
