| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D |
|---|
| PAL: 1/25~1/100000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 20m (66feet) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 12 Interface |
|---|
| 鏡頭 | Audio Interface N/A |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply 12V DC ±30% |
|---|
| 焦距 | 3.6mm (2.8mm, Optional) Power Consumption Max 3.3W (12V DC, IR on) |
|---|
| Max Aperture | F1.85 Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| Angle of View | H: 87.5° (103°) Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| Focus Control | N/A Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH 500mm (900mm) Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 19.69" (35.43'') Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Plastic Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on |
|---|

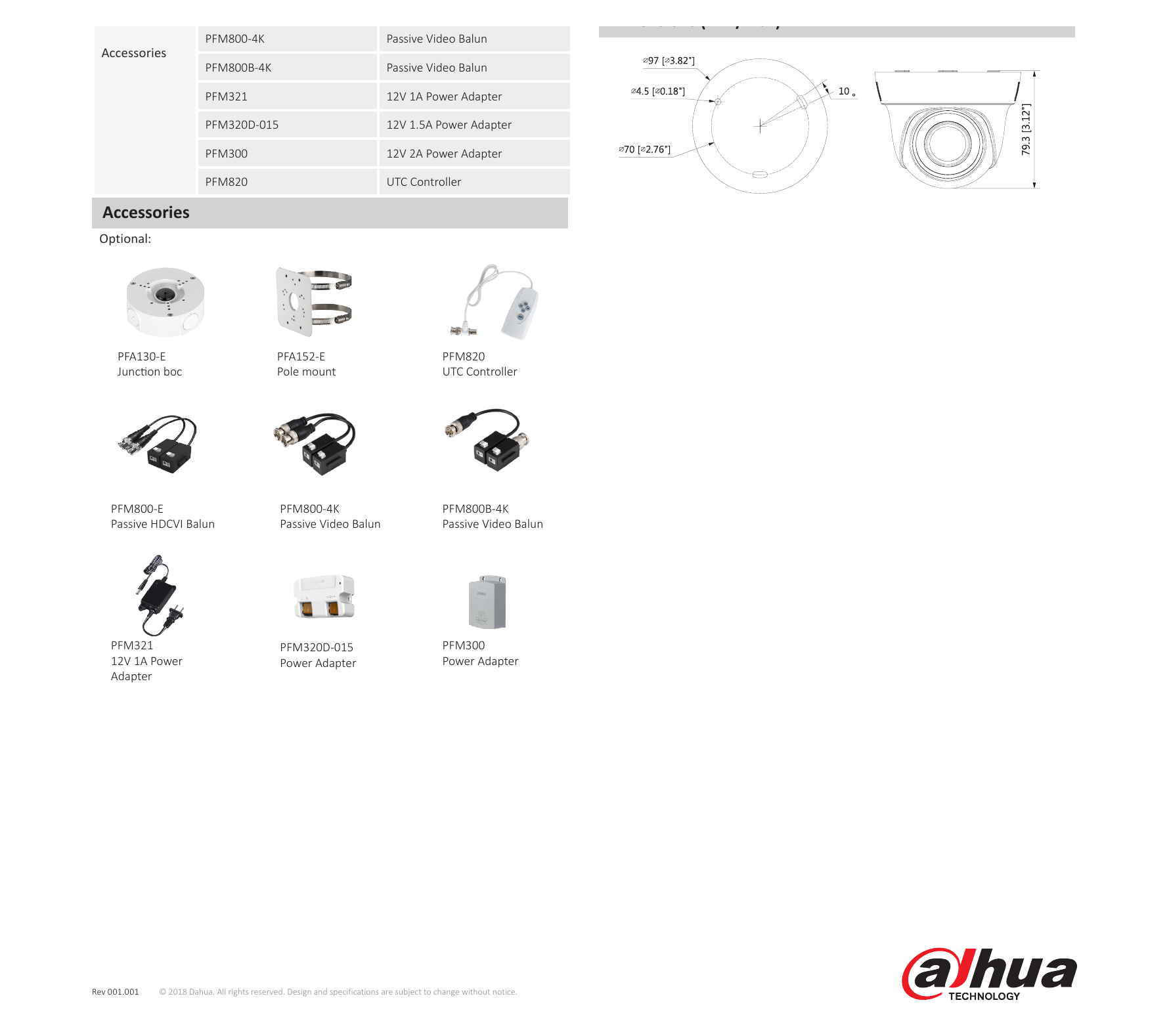

| 尺寸 | Φ97mm×79.3mm(Φ3.8"×3.1") sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.18kg (0.40lb) |
|---|
| Distance | Gross Weight 0.25kg (0.55lb) Definition 25px/m 2.8mm: 37m(122ft) Detect (8px/ft) 3.6mm: 53m(175ft) 63px/m 2.8mm: 15m(49ft) Observe (19px/ft) 3.6mm: 21m(70ft) 125px/m 2.8mm: 8m(25ft) Recognize (38px/ft) 3.6mm: 11m(35ft) 250ppm 2.8mm: 4m(12ft) Identify (76px/ft) 3.6mm: 5m(17ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~78° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Pole Mount |
|---|

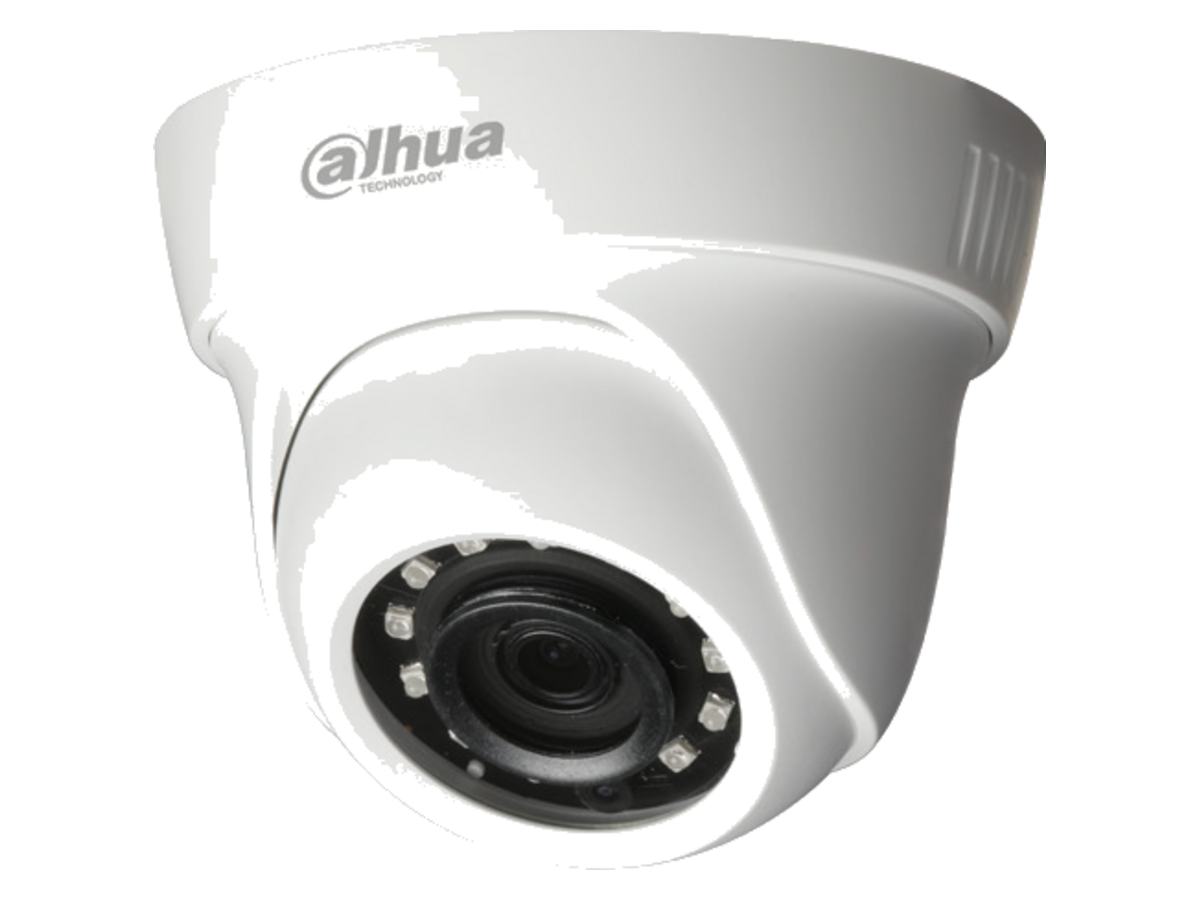

| 類型 | Part Number Description PFBA130-E PFBA130-E+PFA152-E DH-HAC-HDW1200SLP 2.8mm 2MP HDCVI IR Eyeball Camera, PAL DH-HAC-HDW1200SLP 3.6mm 2MP Camera DH-HAC-HDW1200SLN 2.8mm 2MP HDCVI IR Eyeball Camera, NTSC DH-HAC-HDW1200SLN 3.6mm Junction box (For use alone or PFA130-E with PFA152-E pole mount) Pole mount (For use with PFA152-E PFA130-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun Dimensions (mm/inch) |
|---|
| PFM800-4K | Passive Video Balun Accessories |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| PFA130-E | PFA152-E PFM820 |
|---|
| Junction boc | Pole mount UTC Controller |
|---|
| Passive HDCVI Balun | Passive Video Balun Passive Video Balun |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
