| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 60m (197eet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 2 |
|---|
| Audio Interface | 1ch in & Built-in Mic |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| 供電 | AC 24V±30% / DC 12V±30% |
|---|
| Mount Type | Board-in |
|---|
| 功耗 | Max. 6.9W ( IR on) |
|---|
| 焦距 | 2.7-13.5mm |
|---|
| Max Aperture | F1.6 Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| Angle of View | H: 108.7°~28.7° Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH 200mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 7.87'' Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on |
|---|
| 尺寸 | Φ122mm×107mm (Φ4.8"×4.2") sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.63kg (1.39lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 0.83kg (1.83lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 44m(144ft) 153m(502ft) |
|---|
| Observe | 63px/m (19px/ft) 18m(59ft) 61m(200ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 31m(102ft) |
|---|
| Identify | 250px/m (76px/ft) 4m(13ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFB203W + PFA152-E |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDW2241TP-Z-A-DP | 2MP Starlight HDCVI IR Eyeball Camera, 2.7~13.5mm PAL 2MP |
|---|
| Pole mount (For use with PFB203W | Wall Mount |
|---|
| wall mount) | PFB203W Accessories |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| FM321 | 12V 1A Power Adapter |
|---|
| FM320 | 12V 2A Power Adapter |
|---|

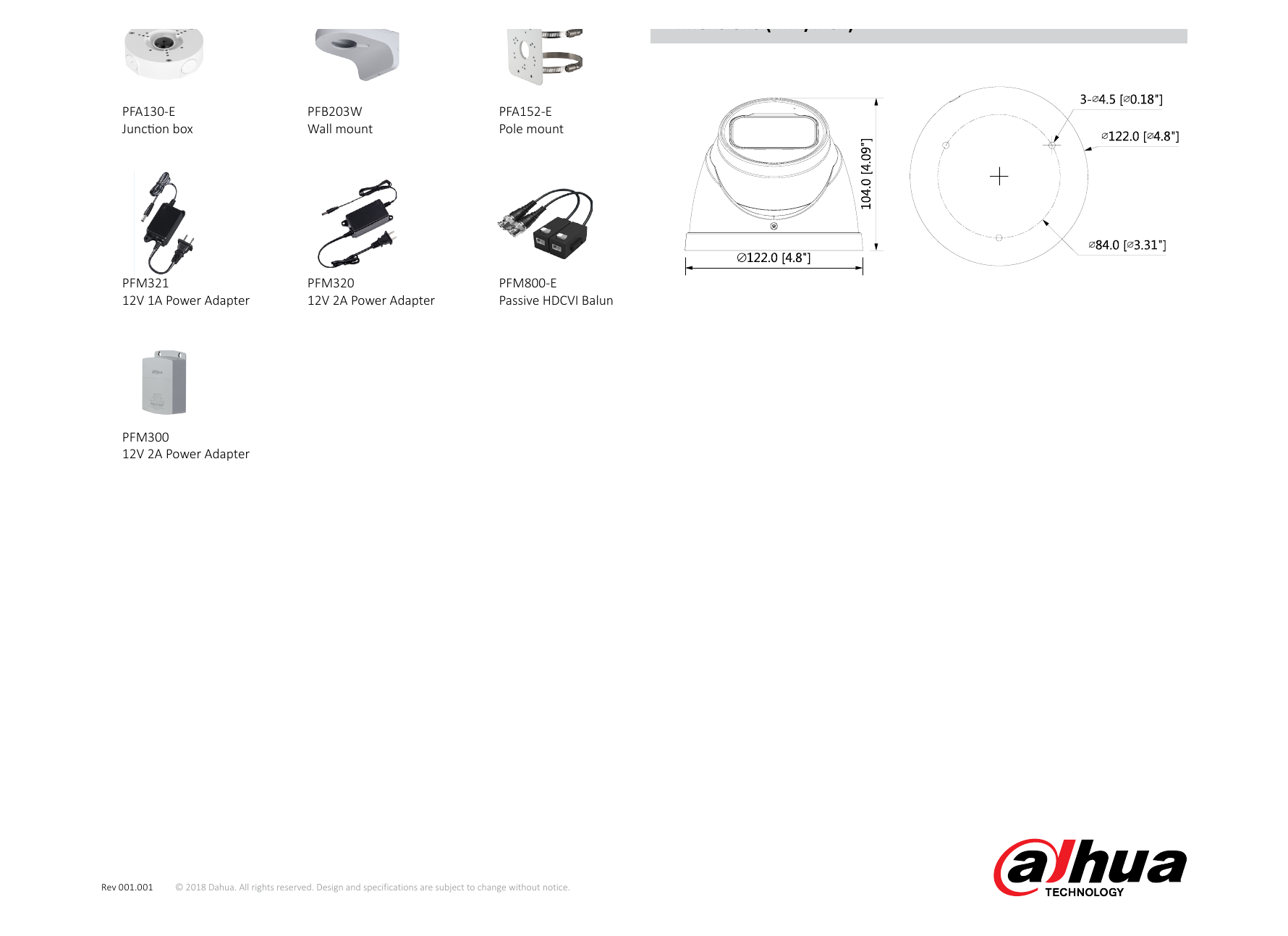

| PFM300 | 12V 2A Power Adapter Accessories Dimensions (mm/inch) |
|---|
| Junction box | Wall mount Pole mount |
|---|
| PFM321 | PFM320 PFM800-E 12V 1A Power Adapter 12V 2A Power Adapter Passive HDCVI Balun PFM300 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
