| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.9" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 2880(H)×1920(V), 6MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100,000s | Noise Reduction 2D/3D Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.01Lux/F1.9, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 50m (164feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 2 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface 1ch in & Built-in Mic |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) Power Supply 12V DC ±30% |
|---|
| Max Aperture | F1.9 Power Consumption Max 7.5W (12V DC, IR on) |
|---|
| Angle of View | H: 70° (89°/47°) Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | Auto / Manual Operating Conditions * Start up should be done at above -30°C (-22°F) 1500mm (900mm, 3900mm) |
|---|
| Close Focus Distance | Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 59'' (35.4'', 153.5') Ingress Protection & Vandal |
|---|
| DORI Distance | IP67 Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ106mm×99.2mm (Φ4.17"×3.9") |
|---|
| Distance | Net Weight 0.49kg (1.08b) Definition 2.8mm:69m(226ft) Gross Weight 0.64kg (1.41lb) |
|---|
| Detect | 25px/m (8px/ft) 3.6mm: 89m(292ft) 6mm:143m(469ft) 2.8mm:28m(92ft) |
|---|
| Observe | 63px/m (19px/ft) 3.6mm:36m(118ft) 6mm:57m(187ft) 2.8mm:14m(46ft) |
|---|
| Recognize | 125px/m (38px/ft) 3.6mm: 18m(59ft) 6mm: 29m(95ft) 2.8mm:7m(23ft) |
|---|
| Identify | 250px/m (76px/ft) 3.6mm:9m(30ft) 6mm:14m(46ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 70° Rotation: 0° ~ 360° |
|---|
| 解像度 | 6MP (2880×1920) |
|---|
| Frame Rate | 20fps@6MP, 25/30fps@4MP 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFB204W + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HDW2601TP-A 2.8mm 6MP WDR HDCVI IR Eyeball Camera, DH-HAC-HDW2601TP-A 3.6mm PAL DH-HAC-HDW2601TP-A 6mm 6MP Camera DH-HAC-HDW2601TN-A 2.8mm 6MP WDR HDCVI IR Eyeball Camera, DH-HAC-HDW2601TN-A 3.6mm NTSC DH-HAC-HDW2601TN-A 6mm |
|---|
| Wall mount (For use alone or with | PFB204W PFA152-E pole mount) Pole mount (For use with PFB203W PFA152-E wall mount) Accessories |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| FM321 | 12V 1A Power Adapter |
|---|
| FM320 | 12V 2A Power Adapter |
|---|

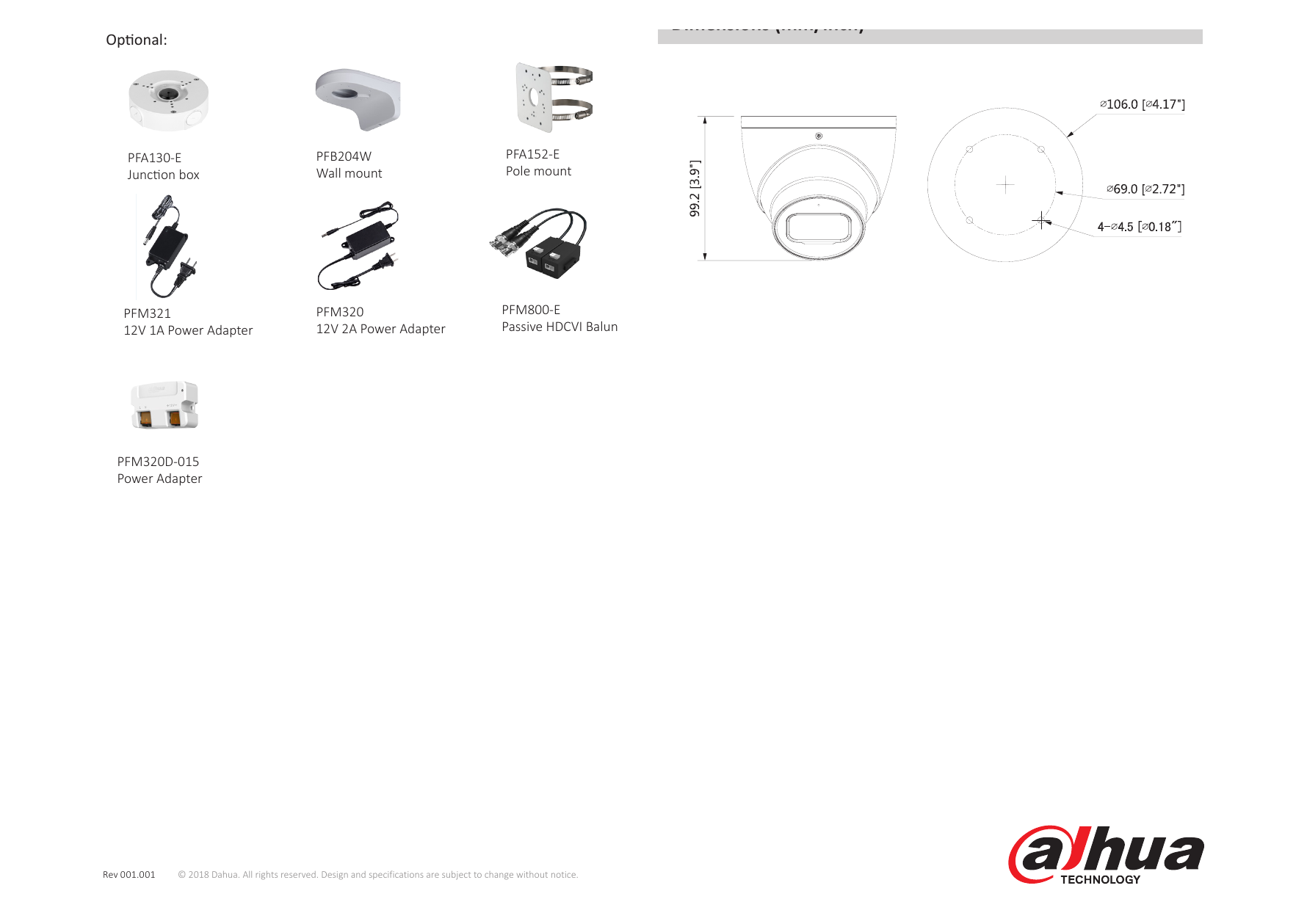

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Dimensions (mm/inch) |
|---|
| Junction box | Wall mount Pole mount |
|---|
| PFM321 | PFM320 PFM800-E 12V 1A Power Adapter 12V 2A Power Adapter Passive HDCVI Balun PFM320D-015 Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
