| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 1 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm Optional) Power Supply POC/12V DC ±30% |
|---|
| Max Aperture | F1.85 Power Consumption Max 3.6W (12V DC, IR on) |
|---|
| Angle of View | H: 87.5° (103°); V: 47° (59°) Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -40°C (-40°F) 900mm (500mm) |
|---|
| Close Focus Distance | Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH 35.43" (19.69'') Ingress Protection & Vandal IP67 |
|---|
| DORI Distance | Resistance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Casing Aluminium sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85") |
|---|
| Distance | Net Weight 0.38kg (0.84lb) Definition |
|---|
| 毛重 | 0.48kg (1.06lb) 25px/m 2.8mm: 37m(122ft) Detect (8px/ft) 3.6mm: 53m(175ft) 63px/m 2.8mm: 15m(49ft) Observe (19px/ft) 3.6mm: 21m(70ft) 125px/m 2.8mm: 8m(25ft) Recognize (38px/ft) 3.6mm: 11m(35ft) 250ppm 2.8mm: 4m(12ft) Identify (76px/ft) 3.6mm: 5m(17ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA134 | PFA134 + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW1200TP-POC 2.8mm 2MP HDCVI PoC IR Bullet Camera, |
|---|
| DH-HAC-HFW1200TP-POC | PAL 3.6mm 2MP Camera DH-HAC-HFW1200TN-POC 2.8mm 2MP HDCVI PoC IR Bullet Camera, |
|---|
| DH-HAC-HFW1200TN-POC | NTSC 3.6mm Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA152-E junction box) Accessories |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|

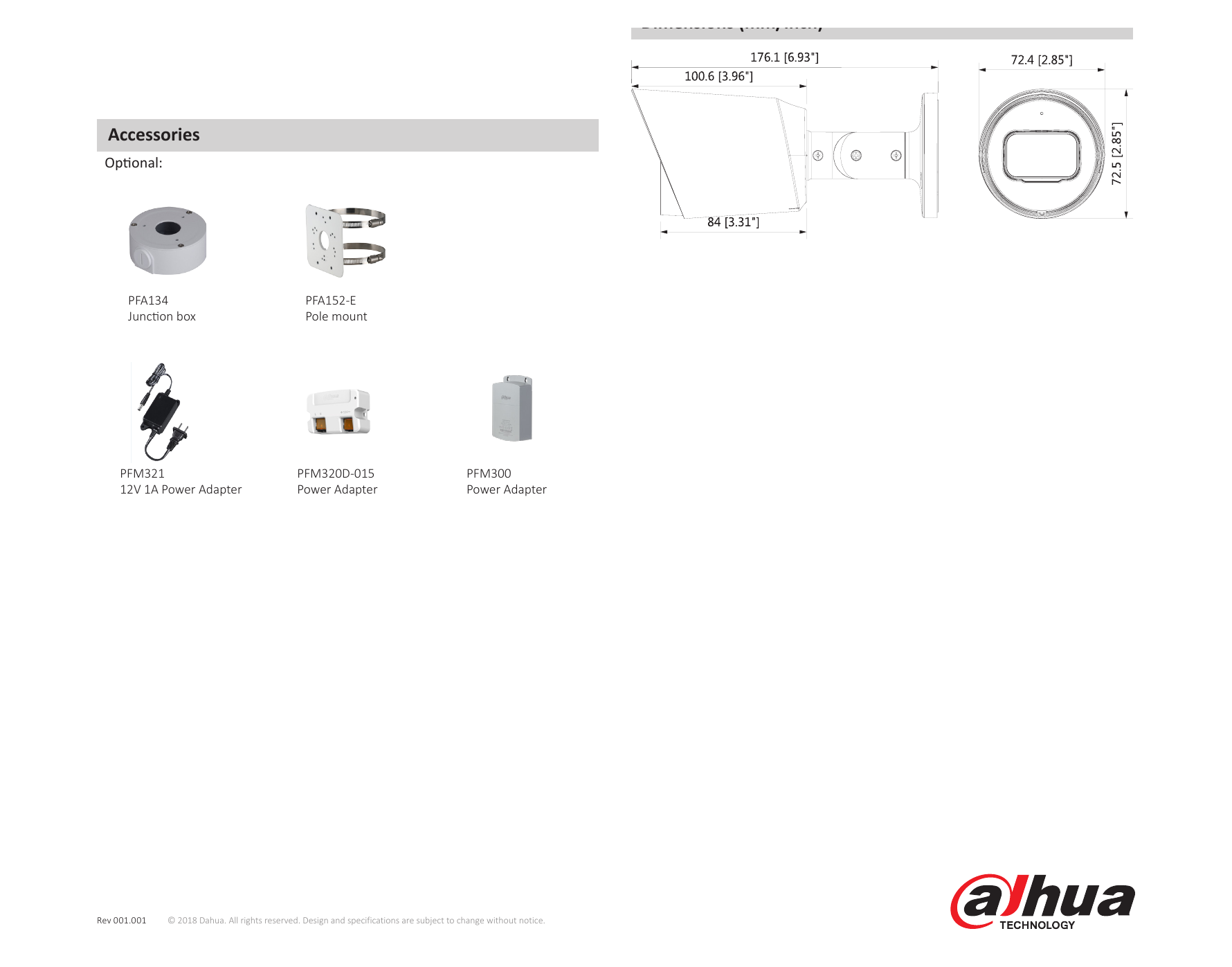

| PFM300 | 12V 2A Power Adapter Dimensions (mm/inch) Accessories Optional: |
|---|
| Junction box | Pole mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
