| Camera | Certifications |
|---|
| 影像感測器 | 1/2.7 inch CMOS CE (EN55032, EN55024, EN50130-4,EN60950-1) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Effective Pixels | 2560 (H) × 1440 (V), 4MP UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Scanning System | Progressive Port Video output choices of CVI/TVI/AHD/CVBS by one |
|---|
| PAL: 1/25s–1/100000s | Video Output |
|---|
| Electronic Shutter Speed | BNC port NTSC: 1/30s–1/100000s |
|---|
| S/N Ratio | >65dB Audio Interface |
|---|
| Minimum Illumination | 0.02Lux/F1.2, 0Lux White Light on Audio Input Built-in mic (-A) Fill Light (White Light) Distance Distance up to 20 m (65.61 ft) Power |
|---|
| Fill Light On/Off Control | Auto; manual Power Supply 12V ±30% DC |
|---|
| Fill Light Number | 1 Power Consumption Max 3.0W (12V DC, White Light on) |
|---|
| Pan: 0°–360° | Environment |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–180° |
|---|
| Rotation: 0°–360° | -40°C to +60°C (-40°F to 140°F); <95% (non- Operating Temperature condensation) |
|---|
| 鏡頭 | -40°C to +60°C (-40°F to 140°F); <95% (non- Storage Temperature condensation) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| Protection Grade | IP67 |
|---|
| Mount Type | M12 Structure |
|---|
| 焦距 | 3.6 mm |
|---|
| Casing | Metal throughout the whole casing |
|---|
| Max. Aperture | F1.2 |
|---|
| Camera Dimensions | 174.5 mm × 70.6 mm × 72.3 mm (6.87" × 2.78" × 2.85") |
|---|
| Field of View | 3.6 mm: 97° × 81° × 43° (diagonal × horizontal × vertical) |
|---|
| 淨重 | 0.33 Kg (0.73 lb) |
|---|
| 光圈類型 | Fixed iris |
|---|
| 毛重 | 0.44 Kg (0.97 lb) |
|---|
| Close Focus Distance | 3.6 mm: 2.1 m (6.89 ft) |
|---|
| Distance | 80.0 m 32.0 m 16.0 m 8.0 m 3.6 mm (262.5 ft) (105.0 ft) (52.5 ft) (26.2 ft) CVI: PAL: 4M@25fps,1080P@25fps; NTSC: 4M@30fps,1080P@30fps AHD: PAL: 4M@25fps; NTSC: 4M@30fps Frame Rate TVI: PAL: 4M@25fps; NTSC: 4M@30fps CVBS: PAL: 960H; NTSC: 960H 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × Resolution 576/704 × 480); |
|---|
| BLC | BLC/HLC/WDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D NR |
|---|
| Smart Light | Yes |
|---|
| Mirror | Off/On www.dahuasecurity.com |
|---|
| Ordering Information | Wall Mount Junction Mount Pole Mount |
|---|
| PFA134 | PFA134+PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW1409TP- A-LED 0360B DH-HAC-HFW1409TN- |
|---|
| A-LED 0360B | 4MP Full-color Starlight HDCVI Bullet 4MP Camera Camera DH-HAC-HFW1409TP- LED 0360B DH-HAC-HFW1409TN- LED 0360B |
|---|

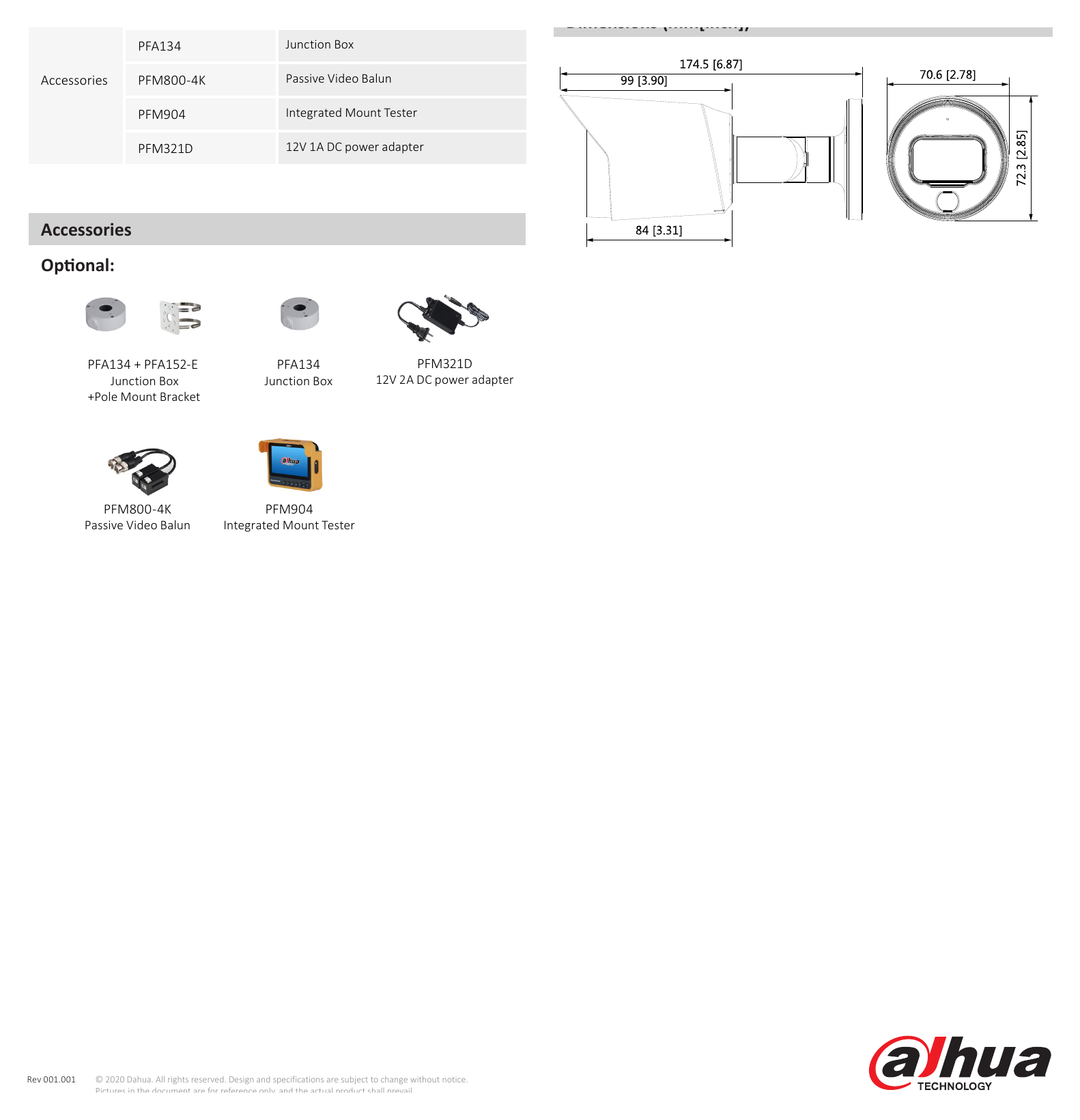

| PFA134 + PFA152-E | Junction Box+Pole Mount Bracket Dimensions (mm[inch]) |
|---|
| Accessories | PFM800-4K Passive Video Balun |
|---|
| PFM904 | Integrated Mount Tester |
|---|
| PFM321D | 12V 1A DC power adapter Accessories Optional: |
|---|
| Junction Box | Junction Box 12V 2A DC power adapter +Pole Mount Bracket |
|---|
| PFM800-4K | PFM904 |
|---|
| Passive Video Balun | Integrated Mount Tester |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
