| Camera | CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| 影像感測器 | 1/2.7 inch CMOS UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Effective Pixels | 3840 (H)×2160 (V), 4K Port |
|---|
| PAL: 1/3s–1/100000s | Audio Port One channel built-in mic (-A) |
|---|
| Electronic Shutter Speed | NTSC: 1/4s–1/100000s Video output choices of CVI/TVI/AHD/CVBS by one |
|---|
| Minimum Illumination | 0.03Lux/F1.7, 30IRE, 0Lux IR on Video Port BNC port |
|---|
| IR Distance | Distance up to 60m (196.85ft) Power |
|---|
| IR On/Off Control | Auto;manual Power Supply 12V ±30% DC |
|---|
| IR LED Number | 4 Power Consumption Max 11W (12V DC, IR on) |
|---|
| Pan: 0°–360° | Environment |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | -30°C to +60°C (-22°F to 140°F);<95% (non- Operating Temperature condensation) |
|---|
| 鏡頭 | -30°C to +60°C (-22°F to 140°F);<95% (non- Storage Temperature condensation) |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| Protection Grade | IP67 |
|---|
| Mount Type | φ14 Structure |
|---|
| 焦距 | 2.7mm–13.5mm |
|---|
| Casing | Metal throughout the whole casing |
|---|
| Max. Aperture | F1.7 |
|---|
| 尺寸 | 209.9mm×90.4mm×90.4mm (8.26"×3.56"×3.56") Horizontal: 105°–33° |
|---|
| Angle of View | Vertical: 56°–18° Net Weight 0.55kg (1.21lb) Diagonal: 126°–38° |
|---|
| 光圈類型 | Fixed iris Gross Weight 0.7kg (1.54lb) |
|---|
| Auto Focus | Yes |
|---|
| Close Focus Distance | 0.8m (2.62ft) |
|---|
| DORI Distance | Wide-angle 90m (295ft) 36m (118ft) 18m (59ft) 9m (30ft) |
|---|
| Telephoto | 264m (866ft) 106m (348ft) 53m (174ft) 26m (85ft) CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC Video Frame Rate AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); Resolution 960H (960× 576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/WDR |
|---|
| WDR | 120dB/WDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D&3D NR |
|---|
| Smart IR | Yes |
|---|
| Electronic Defog | Yes |
|---|
| Digital Zoom | 4X |
|---|
| Mirror | Off/On |
|---|
| Privacy Masking | Off/On (8 area, rectangle) www.dahuasecurity.com |
|---|
| Ordering Information | Pole Mount Corner Mount |
|---|
| PFA152-E+PFA135 | PFA135+PFA151 |
|---|
| 類型 | Part Number Description DH-HAC- |
|---|
| HFW1801RP-Z-IRE6 | 4K HDCVI IR Bullet Camera, PAL 2.7~13.5mm DH-HAC- |
|---|
| HFW1801RN-Z- | 4K HDCVI IR Bullet Camera, NTSC IRE6 2.7~13.5mm 4K Camera DH-HAC- |
|---|
| HFW1801RP-Z- | 4K HDCVI IR Bullet Camera, PAL IRE6-A 2.7–13.5mm Wall Mount DH-HAC- |
|---|
| PFM800-4K | Passive Video Balun |
|---|

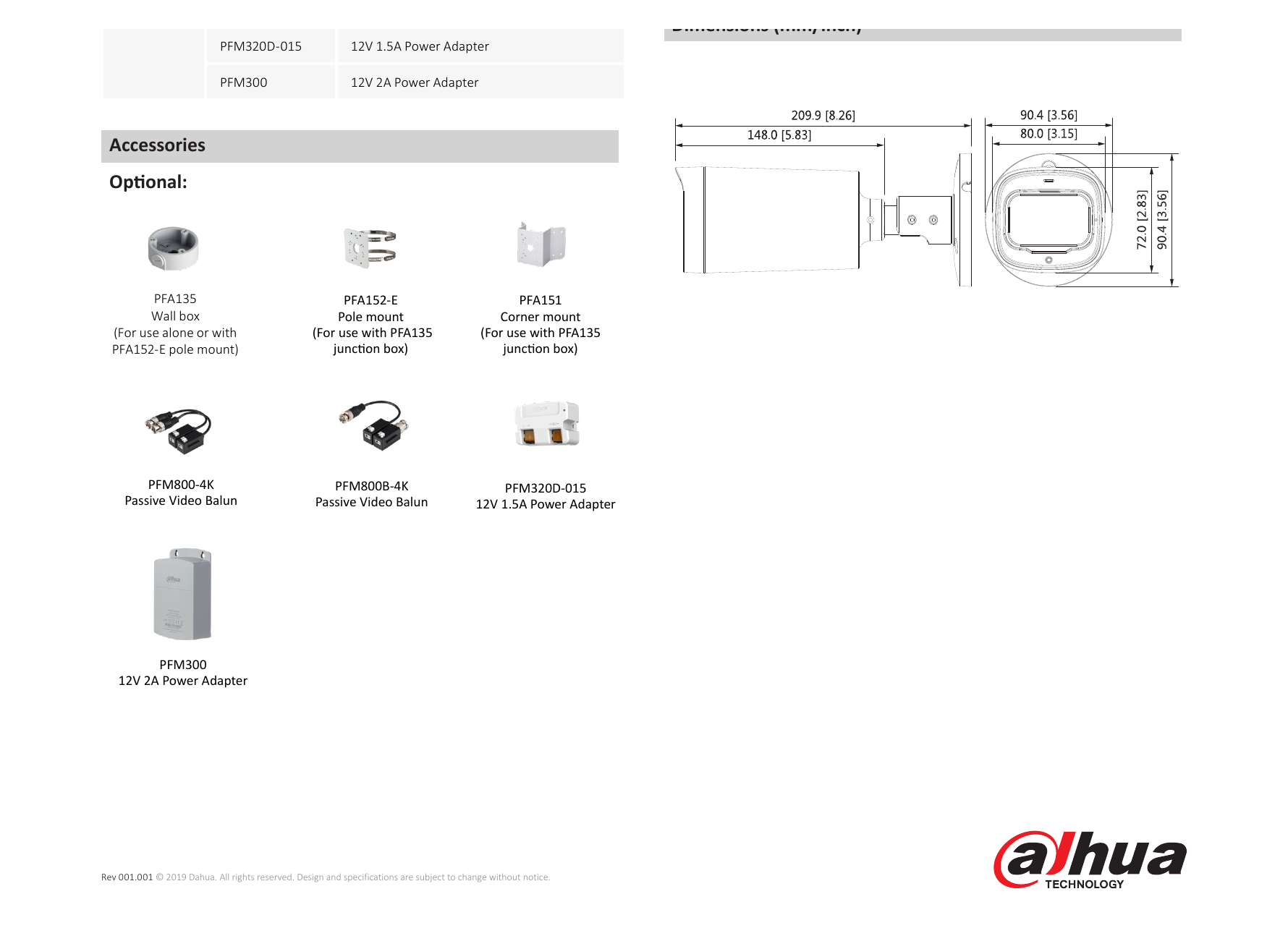

| PFM800B-4K | Passive Video Balun Dimensions (mm/inch) |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter Accessories Optional: |
|---|
| PFA135 | PFA152-E PFA151 |
|---|
| Wall box | Pole mount Corner mount (For use alone or with (For use with PFA135 (For use with PFA135 |
|---|
| PFA152-E pole mount) | junction box) junction box) |
|---|
| Passive Video Balun | Passive Video Balun 12V 1.5A Power Adapter PFM300 12V 2A Power Adapter www.dahuasecurity.com |
|---|
