| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1928(H)×1088(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1.3s~1/30000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 40m (131feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 2 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (6mm, 8mm Optional) Power Supply 12V DC ±25% |
|---|
| Max Aperture | F2.0 Power Consumption Max 5.5W (12V DC, IR on) |
|---|
| Angle of View | H: 90° (59.4°/41.4°) Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -30°C (-22°F) 800mm (1800mm, 3000mm) |
|---|
| Close Focus Distance | Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 31.50'' ( 70.87'', 118.11'') Ingress Protection & Vandal IP67 |
|---|
| DORI Distance | Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

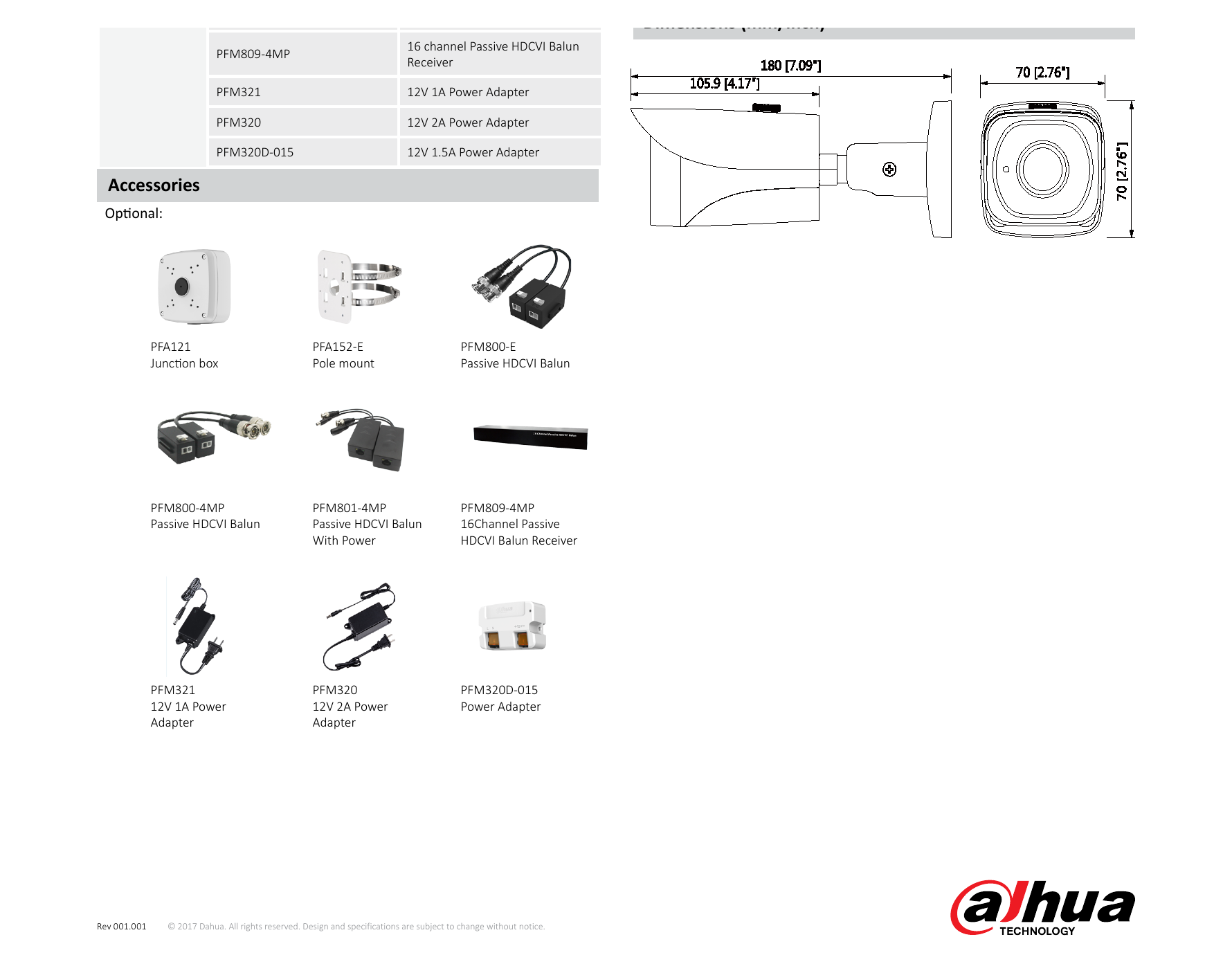

| 尺寸 | 180mm×70mm×70mm (7.09"×2.76"×2.76") |
|---|
| Distance | Net Weight 0.40kg (0.88lb) Definition 3.6mm: 53m(175ft) Gross Weight 0.51kg (1.12lb) 25px/m |
|---|
| Detect | 6mm: 78m(257ft) (8px/ft) 8mm:107m(350ft) 3.6mm: 21m(70ft) 63px/m |
|---|
| Observe | 6mm: 31m(103ft) (19px/ft) 8mm:43m(140ft) 3.6mm: 11m(35ft) 125px/m |
|---|
| Recognize | 6mm: 16m(51ft) (38px/ft) 8mm:21m(70ft) 3.6mm: 5m(17ft) 250ppm |
|---|
| Identify | 6mm: 8m(26ft) (76px/ft) 8mm:11m(35ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & Video Output 1-channel BNC CVBS video output www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA121 | PFB121 + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW2221EP 3.6mm 2MP WDR HDCVI IR Bullet DH-HAC-HFW2221EP 6mm Camera, PAL DH-HAC-HFW2221EP 8mm 2MP Camera DH-HAC-HFW2221EN 3.6mm 2MP WDR HDCVI IR Bullet DH-HAC-HFW2221EN 6mm Camera, NTSC DH-HAC-HFW2221EN 8mm Junction box (For use alone or PFA121 with PFA152-E pole mount) Pole mount (For use with PFA121 PFA152-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun Accessories |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power Dimensions (mm/inch) 16 channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun 16Channel Passive |
|---|
| With Power | HDCVI Balun Receiver |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
