| Camera | Digital Zoom 4× |
|---|
| 影像感測器 | 1/2.8 inch CMOS Mirror Off/On |
|---|
| Effective Pixels | 1920 (H)×1080 (V), 2MP Privacy Masking Off/On (8 area, rectangle) Electronic Shutter Speed |
|---|
| PAL: 1/3s–1/100000s | Certifications NTSC: 1/4s–1/100000s CE (EN55032, EN55024, EN50130-4) |
|---|
| Minimum Illumination | 0.004Lux/F2.0, 30IRE, 0Lux IR on Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Fill Light Kind | IR Port |
|---|
| Fill Light Working Distance | 40 m (131 ft) Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| IR On/Off Control | Auto; manual BNC port |
|---|
| IR LED Number | 2 Power |
|---|
| Pan: 0°–355° | Power Supply 12V ±30% DC |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–180° |
|---|
| Rotation: 0°–355° | Power Consumption Max 4.1W (12V DC, IR on) |
|---|
| 鏡頭類型 | Fixed-focal -40°C to +60°C (-40°F to +140°F); Operating Temperature <95% (non-condensation) |
|---|
| Mount Type | M12 -40°C to +60°C (-40°F to +140°F); Storage Temperature <95% (non-condensation) |
|---|
| 焦距 | 2.8mm; 3.6mm |
|---|
| Protection Grade | IP67 |
|---|
| Max. Aperture | F2.0 Structure 2.8mm: 121° x 102° x 57° (diagonal x horizontal x |
|---|
| vertical) | Casing Metal front face + plastic main body + plastic bracket Angle of View 3.6mm: 103.6° x 86.9° x 46.3° (diagonal x horizontal x vertical) |
|---|
| 尺寸 | 198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00") |
|---|
| 光圈類型 | Fixed iris |
|---|
| 淨重 | 0.29kg (0.64lb) |
|---|
| Close Focus Distance | 500 mm/900 mm |
|---|
| 毛重 | 0.44kg (0.97lb) |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | 38.6 m 15.4 m 7.7 m 3.9 m 2.8mm |
|---|
| Distance | (127 ft) (51 ft) (25 ft) (13 ft) 55.2 m 22.1 m 11.0 m 5.5 m 3.6mm (181 ft) (73ft) (36ft) (18ft) CVI: PAL: 1080P@25fps, 720P@25fps, 720P@50fps; NTSC: 1080P@30fps, 720P@30fps, 720P@60fps AHD: PAL: 1080P@25fps, 720P@25fps; NTSC: 1080P@30fps, 720P@30fps Frame Rate TVI: PAL: 1080P@25fps, 720P@25fps, 720P@50fps; NTSC: 1080P@30fps, 720P@30fps, 720P@60fps CVBS PAL: 960 × 576H; NTSC: 960 × 480H 1080P (1920 |
|---|
| BLC | BLC/HLC/WDR |
|---|
| WDR | 120dB/WDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D & 3D NR |
|---|
| Smart IR | Yes www.dahuasecurity.com |
|---|
| Ordering Information | Wall Mount Pole Mount |
|---|
| Description | PFA134 PFA134+PFA152-E |
|---|
| 類型 | Part Number DH-HAC-HFW2241TLP- 0280B 2MP Starlight HDCVI IR Bullet Camera, PAL DH-HAC-HFW2241TLP- 0360B 2MP Camera DH-HAC-HFW2241TLN- 0280B 2MP Starlight HDCVI IR Bullet Camera, NTSC DH-HAC-HFW2241TLN- 0360B |
|---|
| PFA134 | Water-proof Junction Box Wall Mount |
|---|
| PFA12A | Plastic Junction Box PFA12A |
|---|
| PFA134+PFA152-E | Pole Mount |
|---|
| PFM820 | UTC Accessories |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| PFM321D | DC12V1A Power Adapter |
|---|

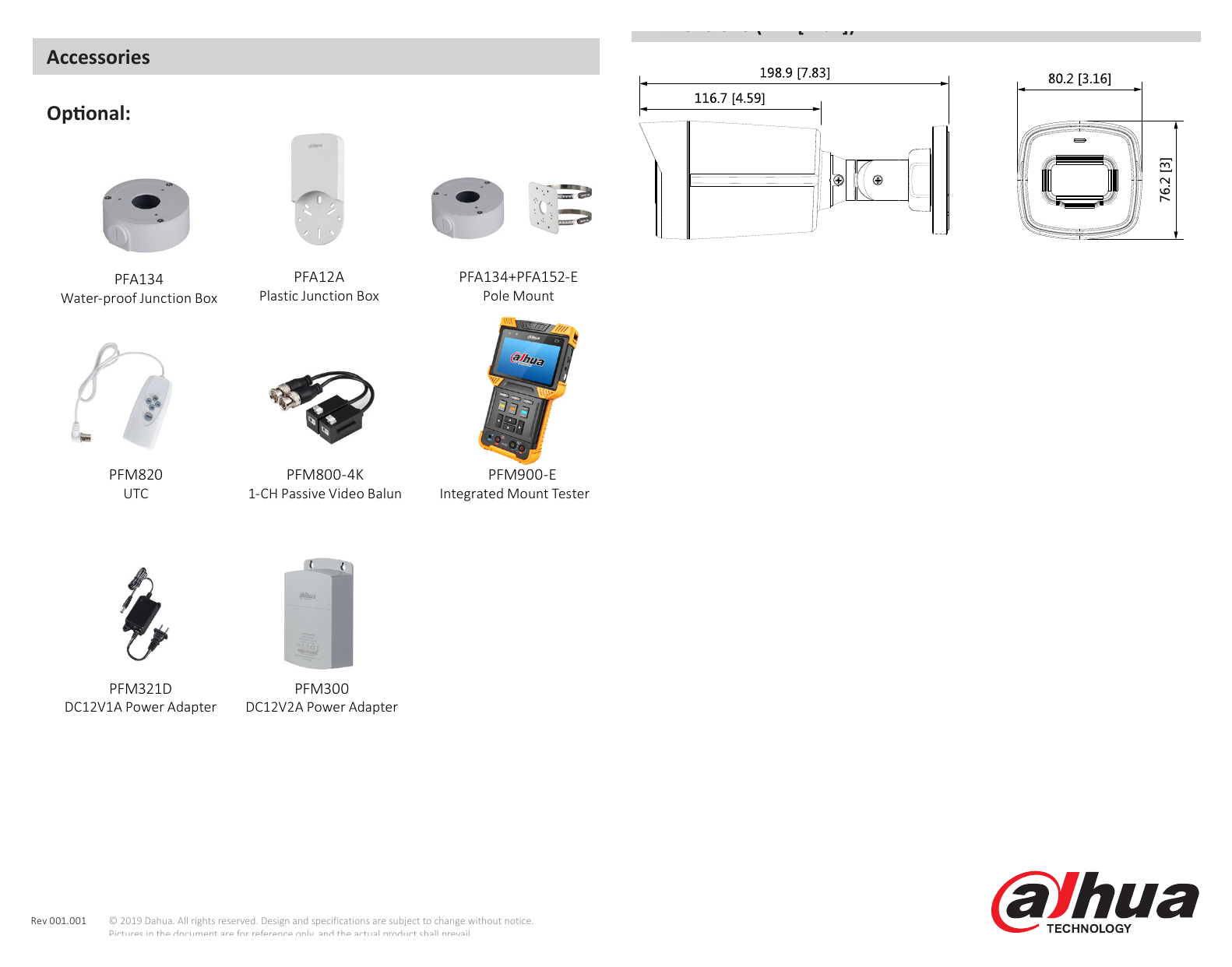

| PFM300 | DC12V2A Power Adapter Dimensions (mm[inch]) Accessories Optional: |
|---|
| Water-proof Junction Box | Plastic Junction Box Pole Mount |
|---|
| UTC | 1-CH Passive Video Balun Integrated Mount Tester |
|---|
| DC12V1A Power Adapter | DC12V2A Power Adapter |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
