| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.9" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F2.2, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| Mirror | Horrizontal mirror (default) |
|---|
| IR Distance | Up to 20m (66feet) |
|---|
| IR On/Off Control | Auto / Manual Certifications |
|---|
| IR LEDs | 1 CE (EN55032, EN55024, EN50130-4) |
|---|
| 鏡頭 | Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) EN50155 (EN50121-3-2, IEC61373) |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris |
|---|
| Mount Type | Board-in Interface |
|---|
| 焦距 | 2.1mm Audio Interface Built-in Mic |
|---|
| Max Aperture | F2.2 1-power 2-video ground Aviation Connector Interface |
|---|
| H: 128° | 3-power ground |
|---|
| Angle of View | 4-video V: 75° |
|---|
| Focus Control | N/A Eelectrical 200mm Power Supply 12V DC ±25% Close Focus Distance 7.87'' |
|---|
| 功耗 | Max 2.9W (12V DC, IR on) DORI Distance Environmental Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH Operating Conditions sensor specification and lab test result according to EN 62676-4 which defines the * Start up should be done |
|---|
| 儲存環境 | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| DORI 偵測距離 | Ingress Protection & Vandal |
|---|
| Distance | IP67 |
|---|
| Definition | Resistance 25px/m Construction |
|---|
| Detect | 2.1mm: 32m(106ft) (8px/ft) |
|---|
| Casing | Aluminium 63px/m |
|---|

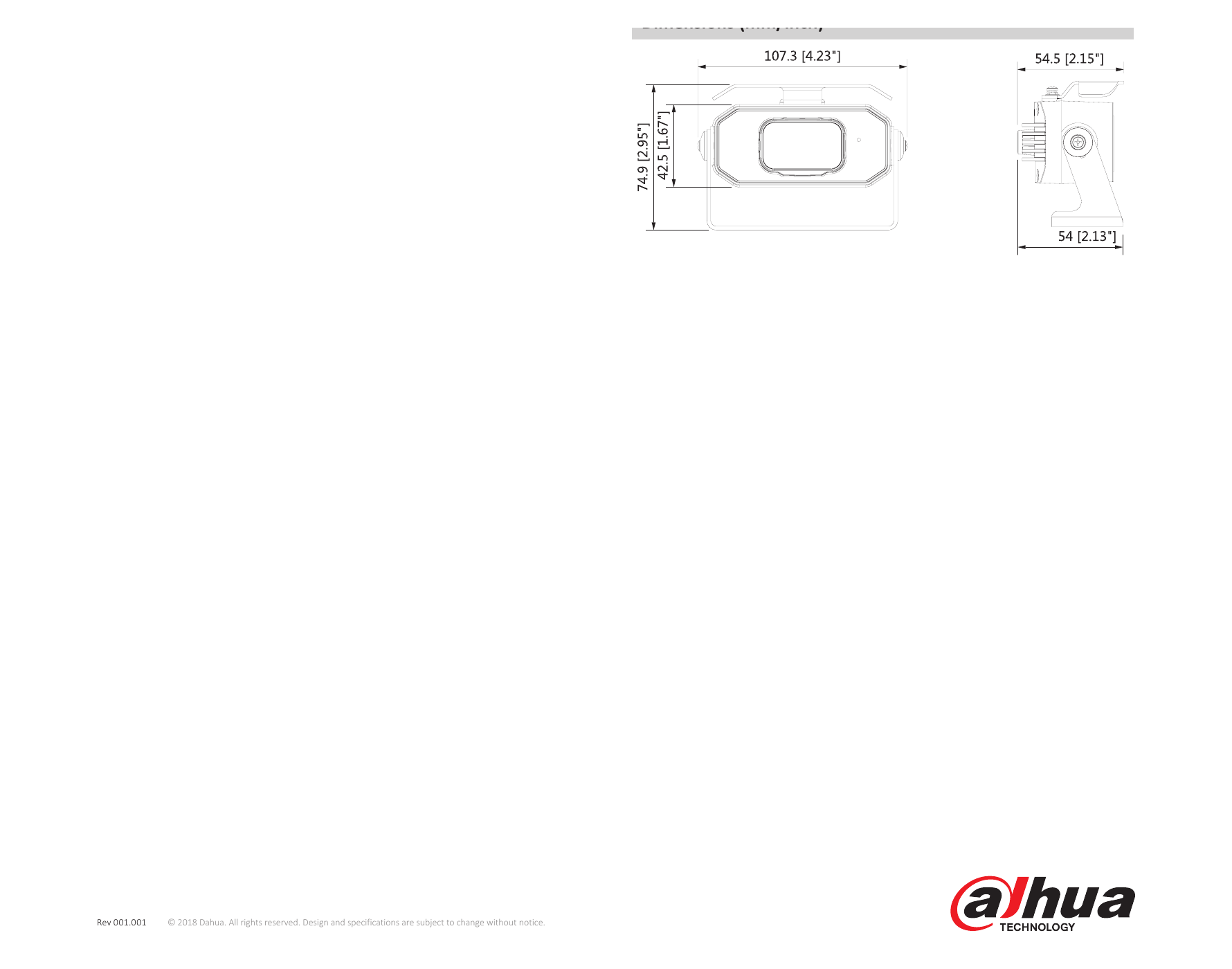

| Observe | 2.1mm: 13m(43ft) (19px/ft) Dimensions 107.3mm×74.9×54.5mm (4.23"×2.95"×2.15") 125px/m Net Weight 0.31kg (0.68lb) |
|---|
| Recognize | 2.1mm: 7m(21ft) (38px/ft) |
|---|
| 毛重 | 0.42kg (0.93lb) 250ppm |
|---|
| Identify | 2.1mm: 3m(10ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 180° Rotation: N/A |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output Video Output (Aviation connector) www.dahuasecurity.com |
|---|
| Ordering Information | Ceiling Mount Plane Mount |
|---|

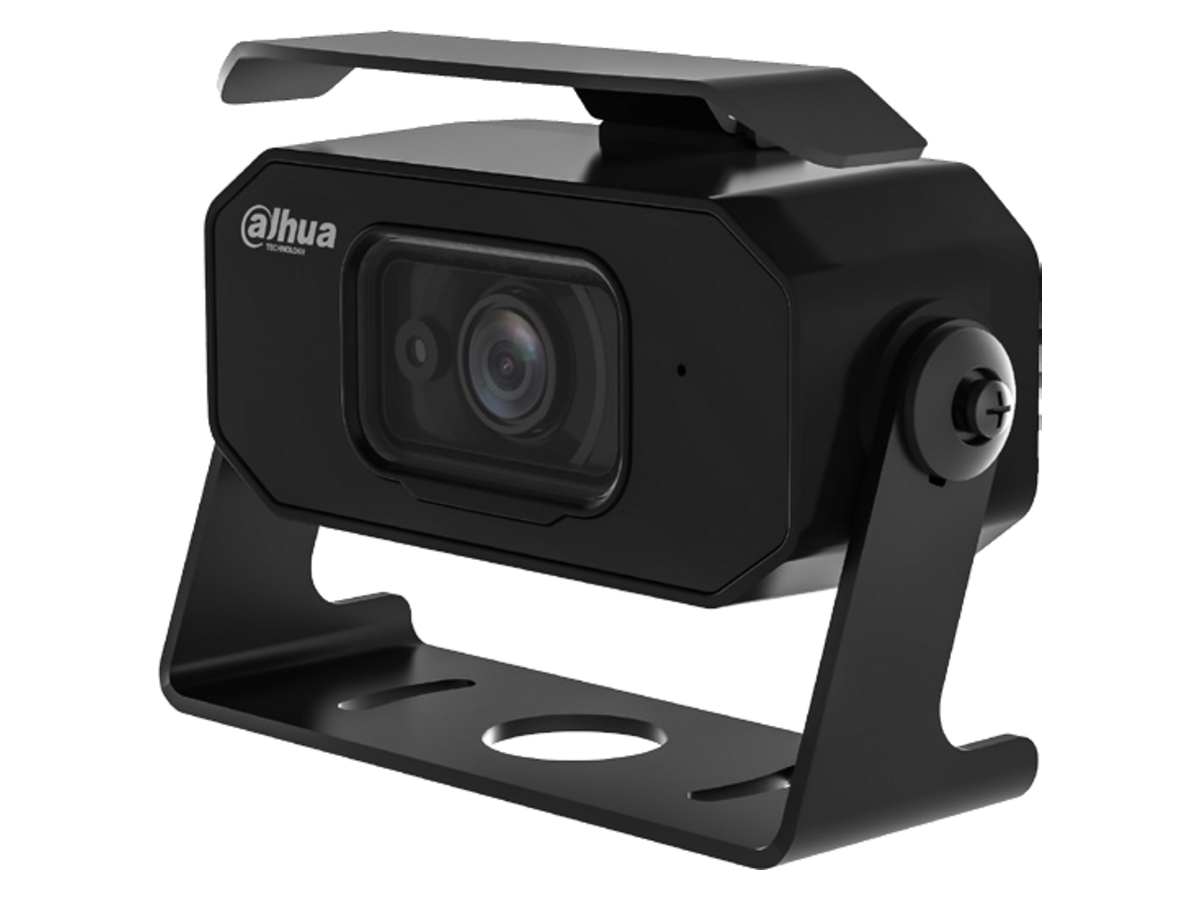

| 類型 | Part Number Description 2MP Mobile HDCVI IR Cube DH-HAC-HMW3200P 2.1mm Camera, PAL 2MP Camera 2MP Mobile HDCVI IR Cube DH-HAC-HMW3200N 2.1mm Camera, NTSC Aviation Connector Dimensions (mm/inch) |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
