| Camera | time setting. Support 5 face databases; register one by one or in batches; support face recognition similarity |
|---|
| 影像感測器 | 1/1.8" CMOS settings and face comparison on the basis of 100,000 face databases. |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) There are two modes: General mode and PPE Detection. General mode: Supports enabling face detection and |
|---|
| ROM | 4 GB human detection at the same time, and alarms can be triggered. |
|---|
| RAM | 2 GB |
|---|
| Face and Body Detection | PPE Detection: Supports PPE detection, can detect attributes including face mask, safety helmet,glasses, and |
|---|
| Scanning System | Progressive safety vest, top color and bottom color,and determine whether PPE requirements are met. |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Alarms can be triggered according to the alarm settings. 0.005 lux@F1.6 (Color, 30 IRE) Tripwire people counting and people counting in area; |
|---|
| 最低照度 | 0.0005 lux@F1.6 (B/W, 30 IRE) generating and exporting report (day/month/year); 0 lux (Illuminator on) People Counting queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area |
|---|
| S/N Ratio | >56 dB and queue management. |
|---|
| Illumination Distance | 120 m (393.70 ft) Motor vehicle, non-motor vehicle, face, human detection; track; snapshot; snapshot optimization; |
|---|
| Illuminator On/Off Control | Auto; Manual; Zoomprio optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, |
|---|
| Illuminator Number | 4 (IR LED) vehicle color, vehicle logo, seatbelt, smoking, calling,etc. |
|---|
| Video Metadata | Non-motor vehicle attributes: type, color, number of people, top type and color ,helmet. |
|---|
| 鏡頭 | Human body attributes: top/bottom type and color, bag, hat, gender, and umbrella. |
|---|
| 鏡頭類型 | Motorized vari-focal Face attributes: gender, age, expressions, glasses, face mask and beard. |
|---|
| 鏡頭接口 | Module interface Work together with Smart NVR to perform refine |
|---|
| 焦距 | 8-32 mm Smart Search intelligent search, event extraction and merging to event videos |
|---|
| Max. Aperture | F1.6 (Constant) Horizontal: 40° (W)–15° (T) |
|---|
| Field of View | Vertical: 22° (W)–9° (T) H.265; H.264; H.264H; MJPEG (Only supported by the |
|---|
| Diagonal: 47° (W)–17° (T) | Video Compression sub stream) |
|---|
| Iris Control | Auto; P-iris Smart Codec Smart H.265+; Smart H.264+ |
|---|
| Close Focus Distance | 1.0 m (3.28 ft) Main Stream: 3840 × 2160 (1–25/30 fps) Sub stream: 704 × 576 (1–25 fps);704 × 480 (1–30 fps) |
|---|
| Video Frame Rate | Third stream: 1920 × 1080 (1–25/30 fps) Fourth stream: 1920 × 1080 (1–25/30 fps) Fifth stream: 704 × 576 (1–25 fps);704 × 480 (1–30 fps) www.dahuasecurity.com |
|---|
| Stream Capability | 5 streams User/Host 20 (Total bandwidth: 80 M) 8M (3840 × 2160);6M (3072 × 2048); 6M (3072 × Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS 1728);5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 |
|---|
| 解像度 | × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p IE: IE9 and later (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × Browser Chrome: Chrome 42 and later 480); CIF (352 × 288/352 × 240) Firefox: Firefox 48.0.2 and later |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| 碼率控制 | CBR/VBR H.264: 32 kbps–16384 kbps |
|---|
| Mobile Client | iOS; Android H.265: 12 kbps–9984 kbps |
|---|
| Day/Night | Auto (ICR)/Color/B/W CE-LVD: EN62368-1; |
|---|
| BLC | Yes CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; Certifications |
|---|
| HLC | Yes FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; UL 50E NEMA Type 4X (optional) |
|---|
| WDR | 120 dB Yes Port |
|---|
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) Auto; natural; street lamp; outdoor; manual; regional custom |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| Gain Control | Auto; Manual |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| Noise Reduction | 3D NR |
|---|
| 警報輸入 | 3 channels in: 5 mA 3 V–5 VDC |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| 警報輸出 | 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC |
|---|
| 感興趣區域 ROI | Yes (4 areas) Power |
|---|
| 防抖 | Electronic Image Stabilization (EIS) |
|---|
| 供電 | 12 VDC/24 VAC/PoE+ (802.3at) |
|---|
| Smart Illumination | Yes Basic power consumption: 5.11 W (12 VDC); 6.82 W (24 VAC); 7.62 W (PoE) |
|---|
| 除霧 | Yes Max. power consumption (Max. stream + intelligent |
|---|
| 功耗 | function + IR LED + focus): 16.8 W (12 VDC); 20.7 W (24 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
|---|
| Image Rotation | VAC); 21.3 W (PoE) |
|---|
| resolution and lower) | Heat power consumption: 3.3 W (12 VDC); 5.5 W (24 VAC); 5.5 W (PoE) |
|---|
| Mirror | Yes |
|---|
| Privacy Masking | 4 areas |
|---|
| Operating Conditions | –40 °C to +65 °C (–40 °F to +149 °F)/Less than 95% RH |
|---|
| 儲存環境 | –40 °C to +65 °C (–40 °F to +149 °F) |
|---|
| 音訊壓縮 | PCM; G.711A; G.711Mu; G.726; G.723 |
|---|
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) |
|---|
| No SD card; SD card full; SD card error; | Structure SD card durability warning; network disconnection; 340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" × IP conflict; illegal access; security exception; motion Product Dimensions 3.66") (L × W × H) detection; video tampering; tripwire; intrusion; fast |
|---|
| Alarm Event | moving; abandoned object; missing object; loitering |
|---|
| 淨重 | 1.54 kg (3.40 lb) detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; video metedata; people counting Gross Weight 2.44 kg (5.38 lb) in area; people counting; queue management |
|---|
| Network Port | RJ-45 (10/100/1000 Base-T) |
|---|
| SDK and API | Yes Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; |
|---|
| Cyber Security | IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| 網絡協議 | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 8MP IR Bullet WizMind Network DH-IPC-HFW7842H-Z4-S2 8MP |
|---|
| PFA154 | Pole Mount |
|---|
| PFM320D | 12 VDC 2A Power Adapter Accessories (Optional) |
|---|
| PFM900-E | Integrated Mount Tester |
|---|

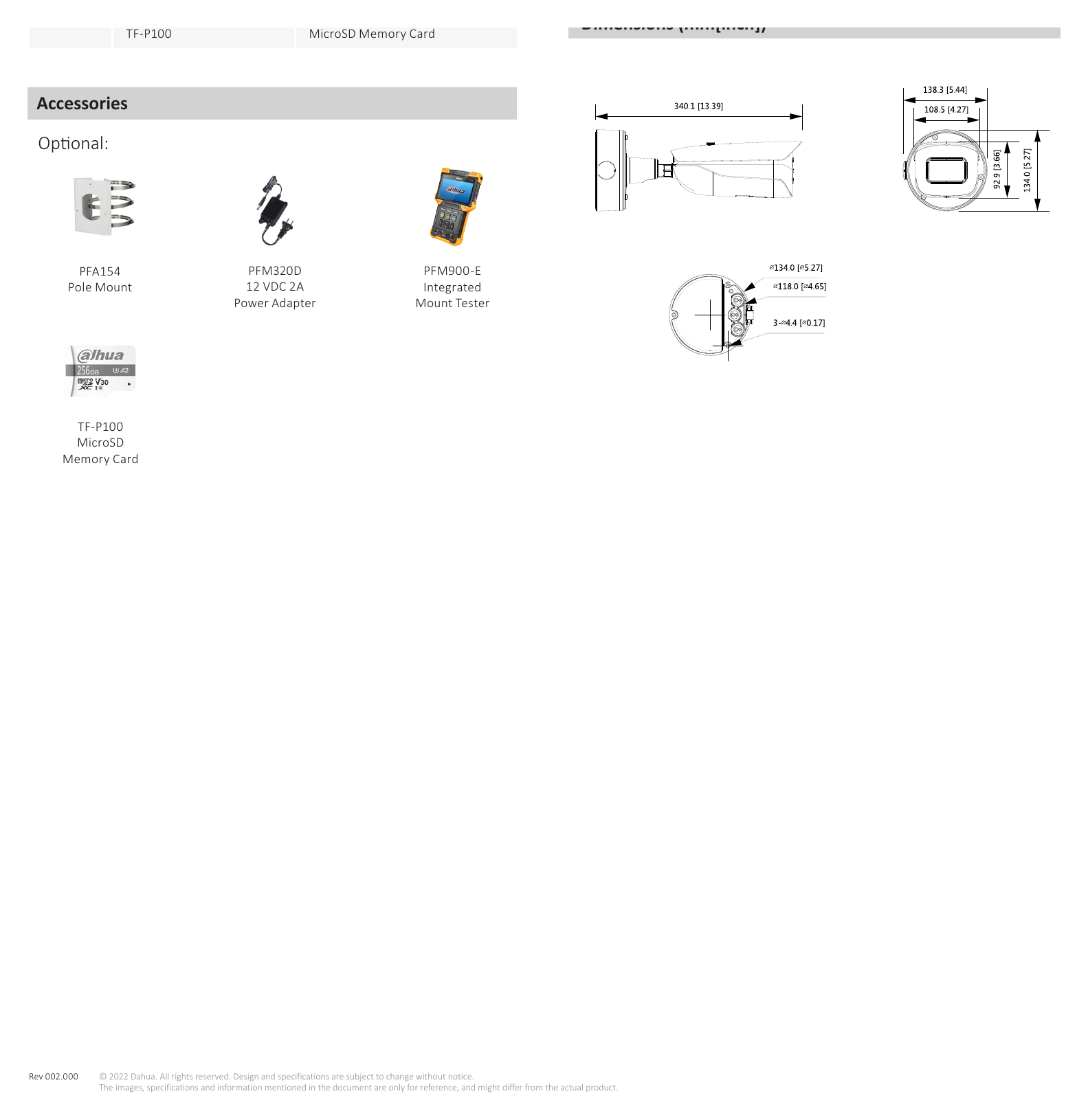

| TF-P100 | MicroSD Memory Card Dimensions (mm[inch]) Accessories Optional: |
|---|
| Pole Mount | 12 VDC 2A Integrated |
|---|
| Power Adapter | Mount Tester TF-P100 MicroSD Memory Card |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
