| System | Interface 2 RJ-45 Ports (10/100/1000Mbps) 2 Ethernet Ports Joint Working or 2 Independent |
|---|
| Main Processor | Intel Quad-core Processor Ethernet Port 1000Mbps Ethernet Ports |
|---|
| 操作系統 | Embedded LINUX PoE N/A |
|---|
| Audio and Video | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Network Function |
|---|
| IP Camera Input | 64/128 Channel Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
|---|
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
|---|
| Optical Fiber Interface | N/A |
|---|
| Display | Max. User Access 128 users 2 HDMI (up to 3840 x 2160 , Different Source), |
|---|
| 接口 | Smart Phone iPhone, iPad, Android 1 VGA 3840 × 2160 , 1920 × 1080 , 1280 × 1024, Interoperability ONVIF 2.4, CGI Conformant Resolution 1280 × 720 , 1024 × 768 1st Screen: 1/4/8/9/16/25/36 Storage Multi-screen Display 2nd Screen: 1/4/8/9/16 |
|---|
| Internal HDD | 8 SATA III Ports, Up to 8 TB capacity for each HDD Camera title, Time, Video loss, Camera lock, Motion OSD |
|---|
| detection, Recording | Single, Raid 0/1/5/10(Enterprise-level HDDs are HDD Mode recommended), Support Global HDD Hot-spare Recording 1 eSATA Port (Please contact technical engineer to eSATA confirm the compatible device) |
|---|
| Compression | H.265/H.264/MJPEG |
|---|
| SAS | N/A 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, Resolution 720P etc. |
|---|
| Record Rate | 384Mbps |
|---|
| Front Cover | Support Hot-swap |
|---|
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
|---|
| USB | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) Manual, Schedule (Regular, MD (Motion Detection), Record Mode Alarm, IVS), Holiday, Stop |
|---|
| RS232 | 1 Port, for PC Communication and Keyboard 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 Record Interval |
|---|
| sec, Post-record: 10 ~ 300 sec | RS485 1 Port, for PTZ Control |
|---|
| Video Detection and Alarm | Electrical Recording, PTZ, Tour, Alarm Out, Video Push, Email, |
|---|
| Trigger Events | Power Supply AC100V ~ 240V, 50 ~ 60 Hz, Redundant FTP, Snapshot, Buzzer and Screen Tips Motion Detection, MD Zones: 396 (22 × 18), Video Power Consumption <20W (Without HDD) Video Detection Loss and Tampering Alarm input 16 Channel, Low Level Effective, Green Terminal Environmental |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa 8 Channel, NO/NC Programmable, Green Terminal Relay Output |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Zoom, Tracking, Recording, Preset, Snapshot, Alarm, Tracking Trigger Event |
|---|
| etc. | Construction |
|---|
| Playback and Backup | Dimensions 2U, 444mm x 475mm x 95mm (17.5" x 18.7" x 3.7") 128 Mbps in Raid 5 Mode; |
|---|
| Playback | 64 Mbps in single HDD Mode Net Weight 9.7kg (21.4 lb) (without HDD) Time /Date, Alarm, MD and Exact Search (accurate |
|---|
| Search Mode | to second) Gross Weight 12.2kg (26.9 lb) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, |
|---|
| 安裝 | Rack-mounted |
|---|
| Playback Function | Full Screen, Repeat, Shuffle, Backup Selection, |
|---|
| Digital Zoom | Certifications |
|---|
| Backup Mode | USB Device/Network/eSATA Device CE EN55022, EN55024, EN50130-4, EN60950-1 |
|---|
| Third-party Support | FCC Part 15 Subpart B, ANSI C63.4-2014 Dahua, Arecont Vision, AXIS, Bosch, Brickcom, UL UL 60950-1 and CAN/CSA C22.2 No.60950-1 Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Third-party Support Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more www.dahuasecurity.com Ordering Information |
|---|

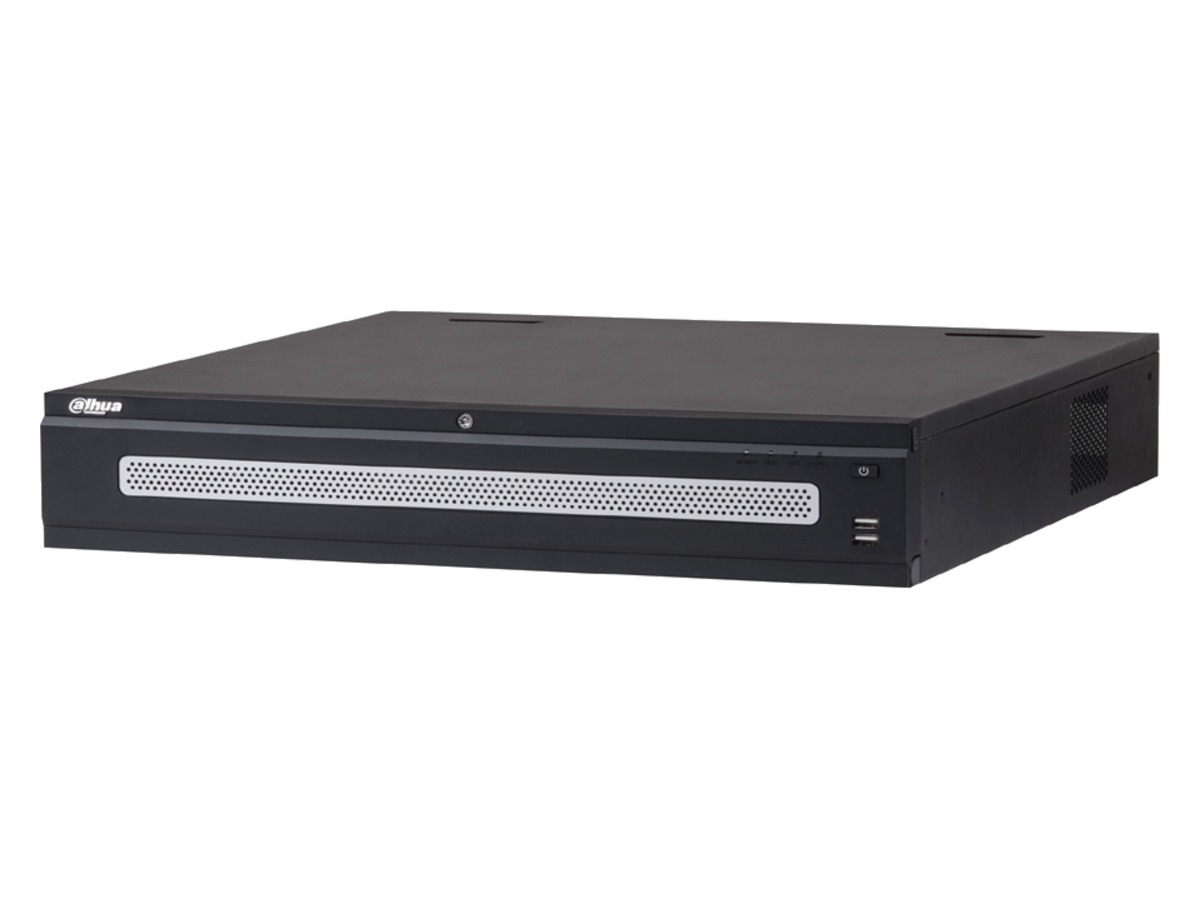

| 類型 | Part Number Description 64 Channel DHI-NVR608R-64- 64 Channel Ultra 4K H.265 Network |
|---|
| NVR | 4KS2 Video Recorder with Redundant Power 128 Channel DHI-NVR608R-128- 128 Channel Ultra 4K H.265 Network |
|---|

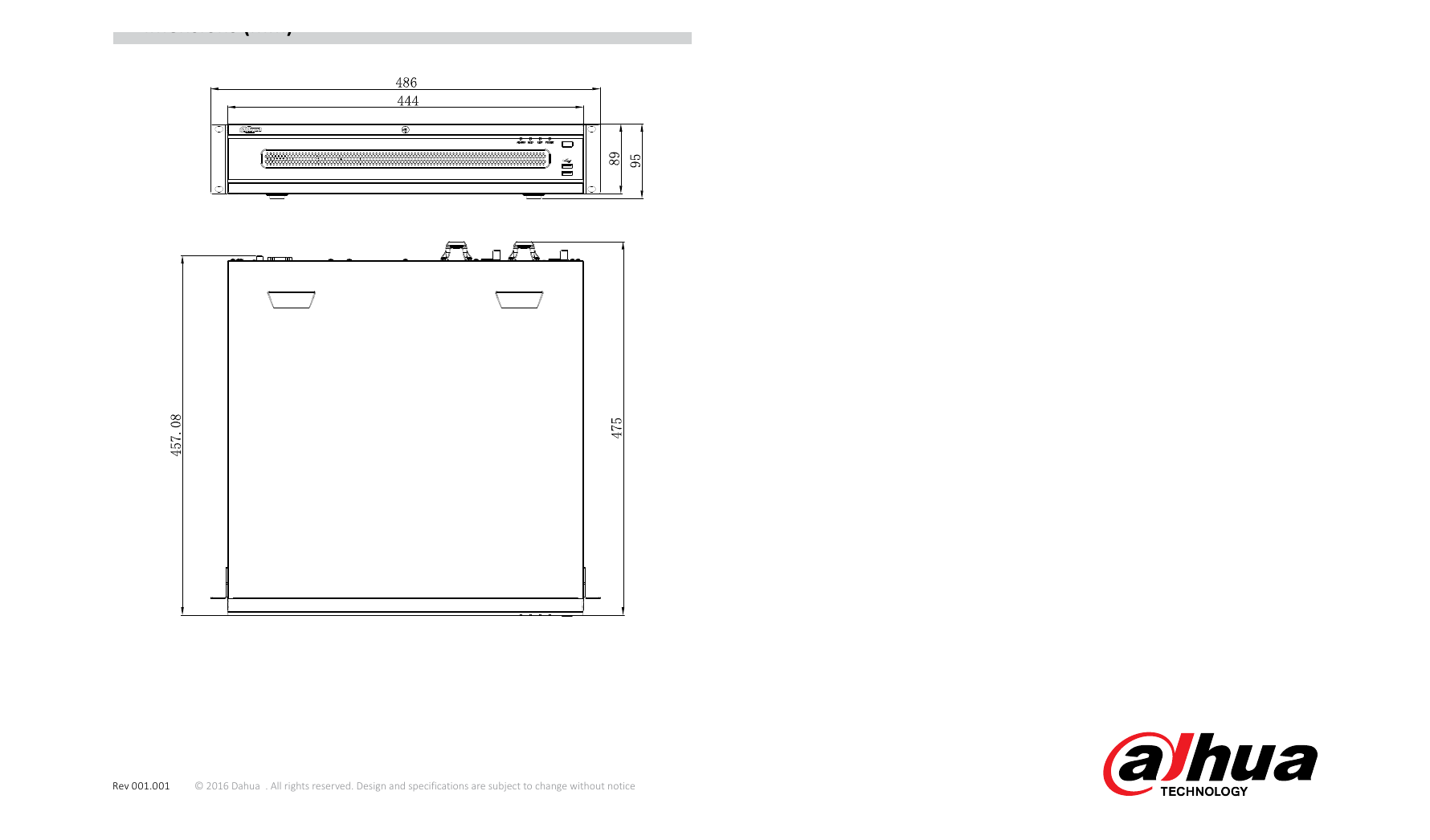

| Accessories | ESS1504C with Technical Support for HDD capacity & compatibility) Accessories ESS1504C Dimensions (mm) |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice www.dahuasecurity.com |
|---|
