| Camera | Noise Reduction 2D |
|---|
| 影像感測器 | 1/2.9" CMOS White Balance Auto / Manual |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Certifications |
|---|
| Scanning System | Progressive CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) Certifications |
|---|
| PAL: 1/25~1/100000s | EN50155 (EN50121-3-2, IEC61373) |
|---|
| Electronic Shutter Speed | IP6K9K NTSC: 1/30~1/100000s |
|---|
| Minimum Illumination | 0.02Lux/F2.0 (Color), 0.002Lux/F2.0 (B/W) Interface |
|---|
| Audio Interface | N/A |
|---|
| S/N Ratio | More than 65dB 1-power |
|---|
| 鏡頭 | Aviation Connector Interface 2-video ground 3-power ground |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris 4-video |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.8mm ( 3.6mm Optional) Power Supply 12V DC ±25% |
|---|
| 功耗 | Max 0.6W (12V DC, IR on) |
|---|
| Max Aperture | F2.0 |
|---|
| Angle of View | H: 109.4° (92°) Environmental |
|---|
| Focus Control | N/A -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 500mm (800mm) |
|---|
| Close Focus Distance | Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH 19.69'' (31.50'') Ingress Protection & Vandal |
|---|
| DORI Distance | Resistance IP67 Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ30mm×68.2mm (Φ1.18"×2.69") Distance |
|---|
| Definition | Net Weight 0.07kg (0.15lb) 25px/m 2.8mm: 40m(131ft) |
|---|
| Detect | Gross Weight 0.11kg (0.24lb) (8px/ft) 3.6mm: 51m(169ft) 63px/m 2.8mm: 16m(52ft) Observe (19px/ft) 3.6mm: 21m(68ft) 125px/m 2.8mm: 8m(28ft) Recognize (38px/ft) 3.6mm: 10m(34ft) 250ppm 2.8mm: 4m(13ft) Identify (76px/ft) 3.6mm: 5m(17ft) Pan / Tilt / Rotation |
|---|
| Pan/Tilt/Rotation | N/A |
|---|
| 解像度 | 1080P (1920×1080) PAL:1920×1080@25fps, 1280×720@25/50fps; Frame Rate NTSC:1920×1080@30fps, 1280×720@30/60fps 1-channel BNC HDCVI high definition video output Video Output (Aviation connector) |
|---|
| Day/Night | Auto (Electronic) / Manual |
|---|
| OSD Menu | Multi-language |
|---|
| BLC Mode | BLC / HLC / DWDR |
|---|
| WDR | DWDR www.dahuasecurity.com Ordering Information Wall Mount |
|---|

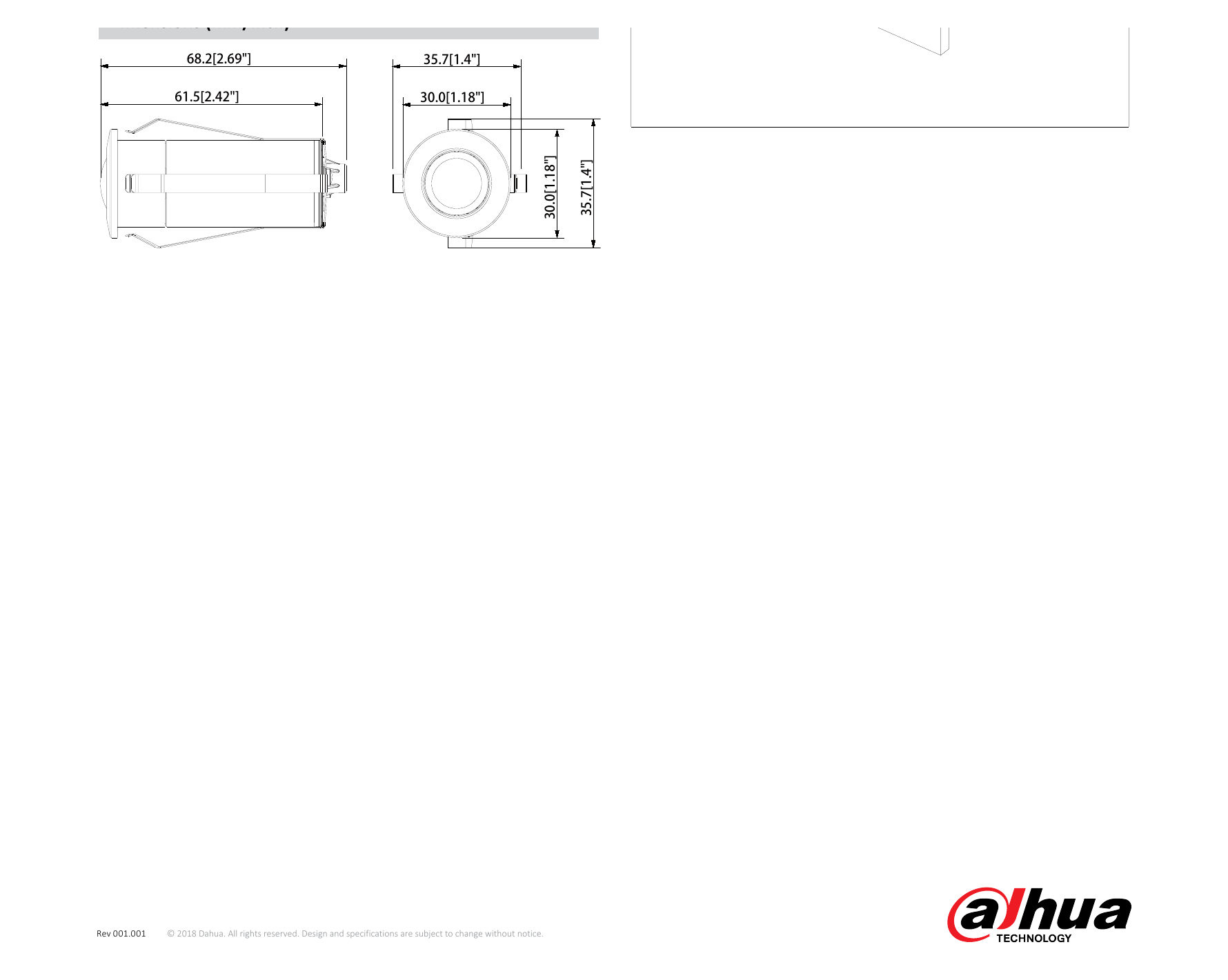

| 類型 | Part Number Description DH-HAC-HUM1220GP-M (2.8mm) 2MP Mobile HDCVI Bullet Camera, PAL DH-HAC-HUM1220GP-M (3.6mm) 2MP Camera DH-HAC-HUM1220GN-M (2.8mm) 2MP Mobile HDCVI Bullet Camera, NTSC DH-HAC-HUM1220GN-M (3.6mm) Aviation Connector Dimensions (mm/inch) 68.2[2.69"] 35.7[1.4"] 61.5[2.42"] 30.0[1.18"] 30.0[1.18"] 35.7[1.4"] |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
