| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/2.8” 2Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 1920(H)x1080(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 256MB/32MB |
|---|
| Region of Interest | Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization N/A |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s (EIS) 0.009Lux/F2.0( Color,1/3s,30IRE) Smart IR Support |
|---|
| Minimum Illumination | 0.07Lux/2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
|---|
| 除霧 | N/A |
|---|
| S/N Ratio | More than 50dB |
|---|
| Digital Zoom | 16x |
|---|
| IR Distance | Distance up to 20m (66ft) |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Mirror | Off / On |
|---|
| IR LEDs | 10 |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 2.8mm (3.6mm, 6mm optional) |
|---|
| Max. Aperture | F2.0 (F2.0, F2.0) Ethernet RJ-45 (10/100Base-T)/M12 D-Coding |
|---|
| Angle of View | H: 110° (87°, 51°), V:58° (48°, 30°) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; |
|---|
| Optical Zoom | N/A UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Focus Control | Fixed |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | N/A |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| 鏡頭 | Detect Observe Recognize Identify 2.8 mm 44m(144ft) 17m(56ft) 9m(30ft) 4m(13ft) Max. User Access 10 Users /20 Users DORI Distance 3.6 mm 55m(180ft) 22m(72ft) 11m(36ft) 6m(20ft) NAS |
|---|
| Edge Storage | Local PC for instant recording 6.0 mm 81m(266ft) 32m(105ft) 16m(52ft) 8m(26ft) Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~60˚; Tilt:0˚~80˚; Rotation:0˚~360˚ Management Software Smart PSS, DSS, Easy4ip |
|---|
| Intelligence | Smart Phone IOS, Android |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Certifications Advanced Intelligent Functions Face Detection CE (EN 60950:2000) UL:UL60950-1 |
|---|
| Video | Certifications FCC: FCC Part 15 Subpart B E-mark(ECE-Regulation No.10) |
|---|
| Streaming Capability | 3 Streams Interface 1080P(1920x1080)/1.3M(1280x960)/ Video Interface N/A |
|---|
| 解像度 | 720P(1280×720)/D1(704×576/704×480)/ |
|---|
| VGA(640×480)/CIF(352×288/352×240) | Audio Interface Built-in Mic |
|---|
| Main Stream: 1080P (1~50/60fps) | RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1(1~50/60fps) |
|---|
| 警報 | N/A Third Stream: 1080P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| H.264: 24~9472Kbps | Power Supply DC12V, PoE (802.3af)(Class 0) Bit Rate H.265: 14~5632Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W Power Consumption <4.5W |
|---|
| BLC Mode | BLC / HLC / WDR(120dB) www.dahuasecurity.com Environmental |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Accessories |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal PFA139 PFB204W PFA152 |
|---|
| Junction Box | Wall Mount Pole Mount |
|---|

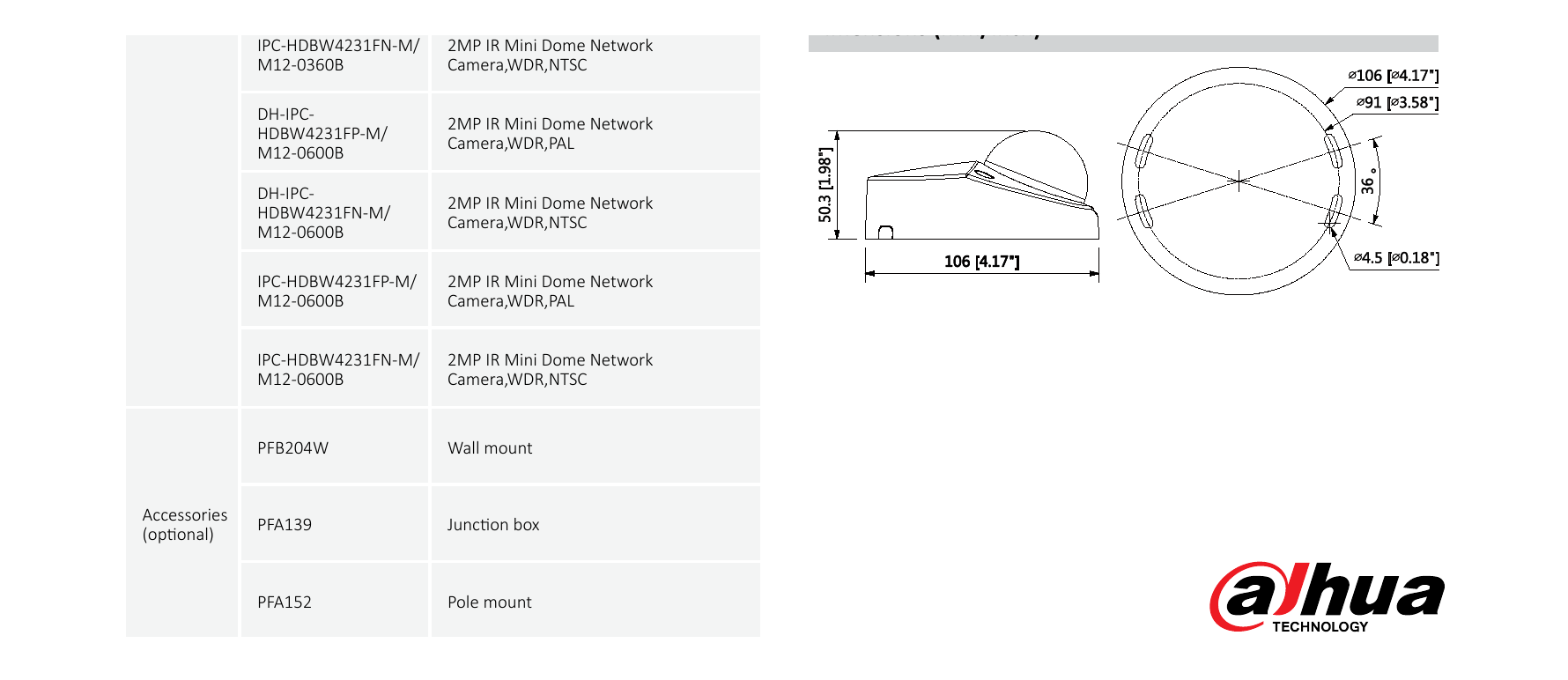

| 尺寸 | Φ106mm×50.3mm (4.17”×1.98”) |
|---|
| 淨重 | 0.4kg (0.88lb) 9 |
|---|
| Juncon box | Pole Mount |
|---|
| 毛重 | 0.44kg (0.97lb) PFA139 PFB204W + PFA152 Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- 2MP IR Mini Dome Network HDBW4231FP-M/ Camera,WDR,PAL M12-0360B DH-IPC- 2MP IR Mini Dome Network HDBW4231FN-M/ Camera,WDR,NTSC M12-0360B Wall Mount |
|---|
| IPC-HDBW4231FP-M/ | 2MP IR Mini Dome Network PFB204W |
|---|
| M12-0360B | Camera,WDR,PAL |
|---|
| IPC-HDBW4231FN-M/ | 2MP IR Mini Dome Network |
|---|
| M12-0600B | Camera,WDR,PAL |
|---|
| PFB204W | Wall mount Accessories |
|---|
| PFA139 | Junction box (optional) |
|---|
| PFA152 | Pole mount www.dahuasecurity.com |
|---|
