| Camera | BLC Mode BLC / HLC / WDR(120dB) |
|---|
| 影像感測器 | 1/2.8” 2Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 1920(H) x 1080(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 256MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.006Lux/F1.4 ( Color,1/3s,30IRE) Electronic Image Stabilization N/A |
|---|
| Minimum Illumination | 0.05Lux/F1.4 ( Color,1/30s,30IRE) (EIS) 0Lux/F1.4 (IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | N/A |
|---|
| IR Distance | Distance up to 50m (164ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 2 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.7mm~12mm |
|---|
| Max. Aperture | F1.4 |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Angle of View | H: 97°~34°, V: 52°~20° HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
|---|
| Optical Zoom | 4x FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Motorized IGMP; SNMP |
|---|
| Close Focus Distance | 0.3m Interoperability ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify Streaming Method Unicast / Multicast |
|---|
| W | 48m(157ft) 19m(62ft) 10m(33ft) 5m(16ft) Max. User Access 10 Users /20 Users Distance |
|---|
| T | 133m(436ft) 53m(174ft) 27m(89ft) 13m(46ft) NAS |
|---|
| Edge Storage | Local PC for instant recording Mirco SD card 128GB Pan/Tilt/Rotation |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~355˚ |
|---|
| Management Software | Smart PSS, DSS, Easy4ip Intelligence |
|---|
| Smart Phone | IOS, Android |
|---|
| IVS (optional) | Tripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent Functions Face Detection Certifications CE (EN 60950:2000) |
|---|
| Video | Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams |
|---|
| Video Interface | N/A 1080P(1920x1080)/1.3M(1280x960)/ |
|---|
| 解像度 | 720P(1280×720)/D1(704×576/704×480)/ Audio Interface 1/1 channel In/Out VGA(640×480)/CIF(352×288/352×240) |
|---|
| Main Stream: 1080P(1~50/60fps) | RS485 N/A 1 channel In: 5mA 5VDC |
|---|
| Frame Rate | Sub Stream: D1(1~50/60fps) Alarm 1 channel Out: 300mA 12VDC |
|---|
| Third Stream: 1080P(1~25/30fps) | Electrical |
|---|
| 碼率控制 | CBR/VBR Power Supply DC12V, PoE(802.3af)(Class 0) H.264: 24~9472Kbps |
|---|
| Bit Rate | Power Consumption <8.5W H.265: 14~5632Kbps www.dahuasecurity.com Environmental |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Accessories |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| PFA152 | PFB203W PFA137 PFB200C |
|---|
| Pole Mount | Wall Mount Junction Box In-ceiling Mount |
|---|

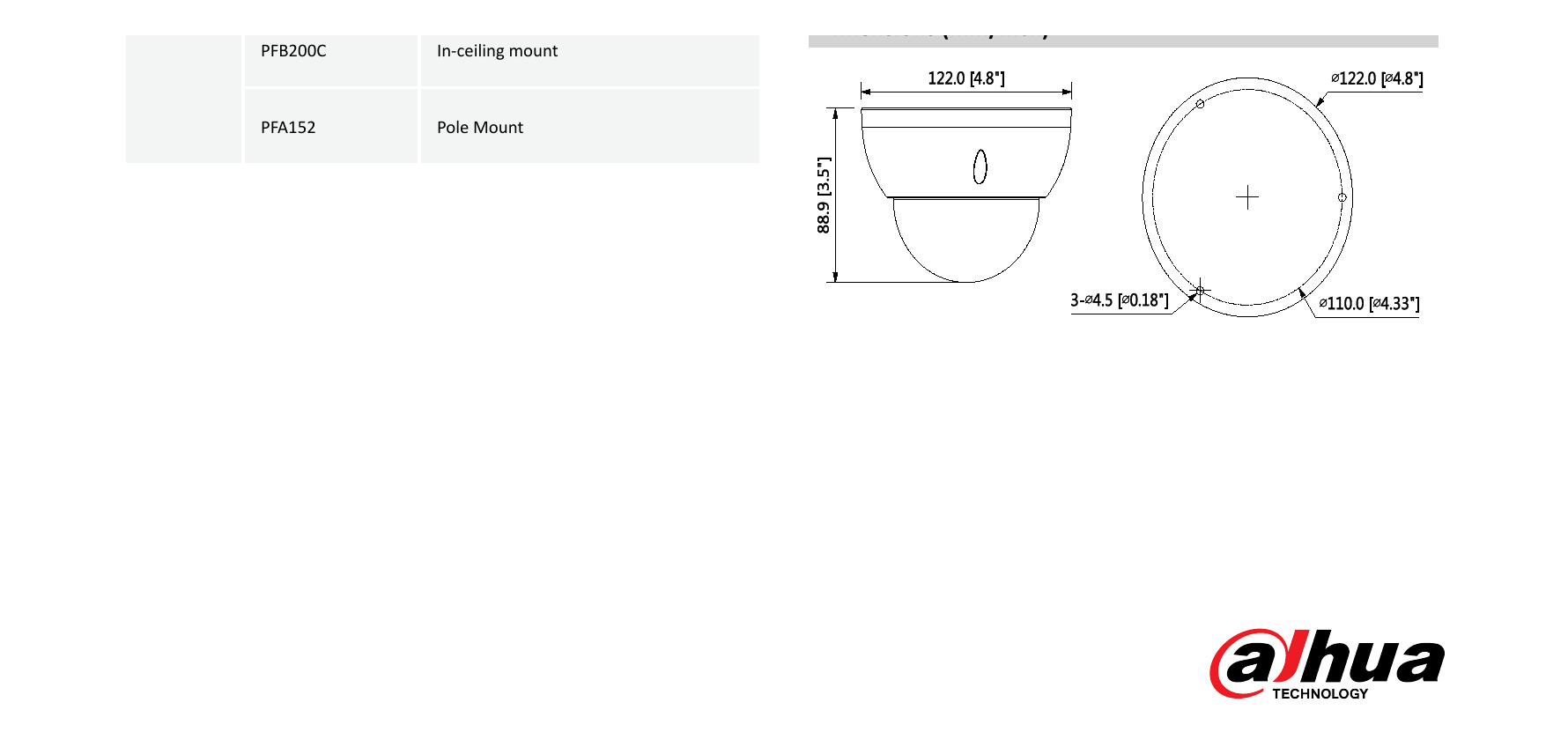

| 尺寸 | Φ122mm×88.9mm (4.8”×3.5”) |
|---|
| 淨重 | 0.5kg (1.1lb) |
|---|
| 毛重 | 0.58kg (1.29lb) |
|---|
| Ordering Information | Juncon Mount Inceiling Mount |
|---|
| PFA137 | PFB200C |
|---|

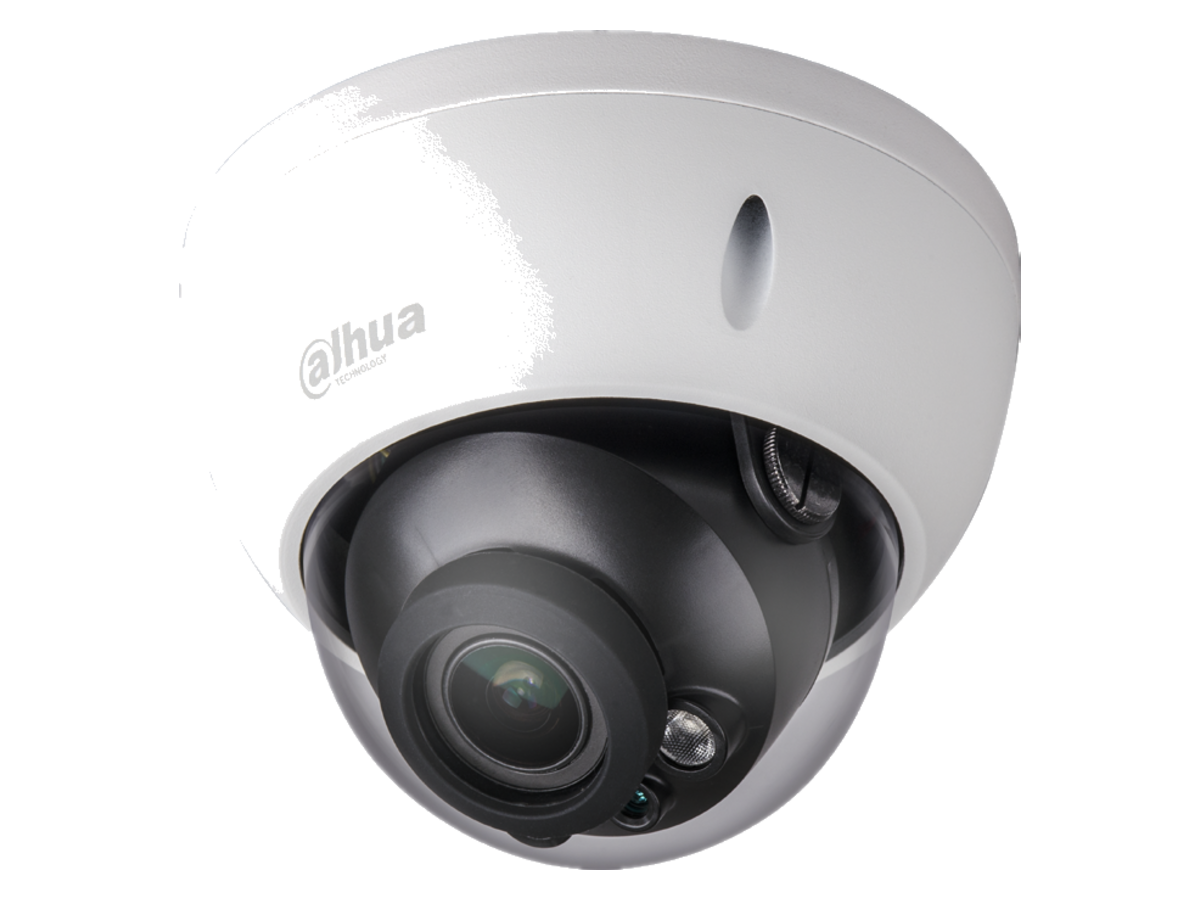

| 類型 | Part Number Description DH-IPC- 2MP IR Dome Network Camera,WDR, PAL HDBW5231RP-Z DH-IPC- 2MP IR Dome Network Camera WDR,NTSC HDBW5231RN-Z 2MP camera |
|---|
| IPC-HDBW5231RP-Z | 2MP IR Dome Network Camera,WDR, PAL Wall Mount Pole Mount |
|---|
| PFB203W | PFB203W + PFA152 |
|---|
| IPC-HDBW5231RN-Z | 2MP IR Dome Network Camera WDR,NTSC |
|---|
| PFB200C | In-ceiling mount |
|---|
