| Camera | daily reports.Support queue management, and |
|---|
| People Counting | displaying and outputting monthly/daily reports. |
|---|
| 影像感測器 | 1/1.8” 4Megapixel progressive CMOS Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) functions |
|---|
| ROM | 16 GB Support human body, human face, motor vehicle |
|---|
| Video Metadata | and non-motor vehicle image capture and attributes |
|---|
| RAM | 2 GB extraction. |
|---|
| Scanning System | Progressive Work together with Smart NVR to perform refine |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s Intelligent Search intelligent search, event extraction and merging to event videos. 0.001 Lux@F1.2 (Color, 30IRE) |
|---|
| 最低照度 | 0.0002 Lux@F1.2 (B/W, 30IRE) 0 Lux (Illuminator on) H.265, H.264, H.264H, H.264B, MJPEG(only supported |
|---|
| S/N Ratio | > 56 dB Video Compression by sub stream) |
|---|
| Illumination Distance | 40 m (131.23 ft) |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ |
|---|
| Illuminator On/Off Control | Auto Main Stream: 2688 × 1520 (1–50/60 fps) Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) |
|---|
| Illuminator Number | 3 (IR LED) |
|---|
| Video Frame Rate | Third stream: 1920 × 1080 (1–25/30 fps) |
|---|
| Pan: 0°–355° | Fourth stream: 1920 × 1080 (1–25/30 fps) |
|---|
| Tilt: 0°–80° | Fifth stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) Rotation: 0°–355° |
|---|
| Stream Capability | 5 streams 4M (2688 × 1520), 3M (2304 × 1296), 1080p (1920 × |
|---|
| 鏡頭類型 | Motorized vari-focal 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 Resolution × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 |
|---|
| Mount Type | Module interface × 240) |
|---|
| 焦距 | 2.7 mm-12 mm Bit Rate Control CBR/VBR |
|---|
| Max. Aperture | F1.2 H.264: 32 Kbps–10240 Kbps Video Bit Rate H.265: 12 Kbps–10240 Kbps Horizontal: 114°(W)–47°(T) |
|---|
| Field of View | Vertical: 59°(W)–27°(T) |
|---|
| Day/Night | Auto (ICR)/Color/B/W Diagonal: 141° (W–55°(T) |
|---|
| 光圈類型 | Auto;Precise iris control BLC Yes |
|---|
| W: 1 m (3.28ft) | HLC Yes T: 2.5 m (8.20ft) |
|---|
| 鏡頭 | Detect Observe Recognize Identify WDR 140 dB 60.1 m 24 m 12 m 6m Scene Self-adaptation (SSA) Yes |
|---|
| DORI 偵測距離 | W (187.19 ft) (78.74 ft) (39.37 ft) (19.69 ft) Auto/natural/street lamp/outdoor/manual/regional 128.6 m 51.4 m 25.7 m 12.8 m White Balance |
|---|
| T | custom (421.92 ft) (168.64 ft) (84.32 ft) (41.99 ft) |
|---|
| Gain Control | Auto/Manual |
|---|
| IVS | Abandoned object, moving object Noise Reduction 3D NR |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) Tripwire, intrusion, fast moving (the three functions Region of Interest (RoI) Yes (4 areas) support the classification and accurate detection |
|---|
| IVS (Perimeter Protection) | Electronic Image Stabilization of vehicle and human); parking detection, loitering Yes |
|---|
| detection, and people gathering. | (EIS) Face recognition, track, priority, snapshot, face Smart Illumination Yes enhancement, face exposure Face attribute extract, 6 attributes and 8 expressions: |
|---|
| 除霧 | Yes Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), 0°/90°/180°/270° (Support 90°/270° with 1080p |
|---|
| mask, beard | Image Rotation resolution or below.) Face matting setting: face, single inch photo Two snapshot strategies: priority snapshot, recognition Mirror Yes Face angle filter Priority time setting |
|---|
| Privacy Masking | 4 areas Management of 5 group face libraries Single person register and person register in batch |
|---|
| Face recognition and similarity setting | Audio Max supports face contrast in face library with 200,000 faces Audio Compression G.711a; G.711Mu; G726;G.723 Support Duration Optimal,Non-living Filtering www.dahuasecurity.com |
|---|
| 警報 | Structure No SD card; SD card full; SD card error; network Casing Metal + Plastic disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast Dimensions 129.1 mm × Φ157.9 mm (5.08" × Φ6.22") (L × W × H) moving; abandoned object; missing object; loitering |
|---|
| Alarm Event | detection; people gathering; parking detection; scene |
|---|
| 淨重 | 1500 g(3.31 lb) changing; audio detection; defocus detection; external alarm; Face Recognition; people counting in area; stay alarm; people counting; people counting exception Gross Weight 1600 g (3.53 lb) detection; safety exception, Queue Management Ordering Information |
|---|
| Network | RJ-45 (10/100/1000 Base-T) |
|---|
| 類型 | Part Number Description |
|---|
| SDK and API | Yes DH-IPC- 4MP IR Dome WizMind Network Camera,PAL Video encryption; firmware encryption; configuration HDBW9442HP-ZFR-MN encryption; Digest; WSSE; account lockout; security |
|---|
| Cyber Security | logs; IP/MAC filtering; generation and importing of DH-IPC- X.509 certification; syslog; HTTPS; 802.1x; trusted 4MP IR Dome WizMind Network Camera,NTSC |
|---|
| boot; trusted execution; trusted upgrade | 4MP Camera HDBW9442HN-ZFR-MN IPC- IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; 4MP IR Dome WizMind Network Camera,PAL RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; HDBW9442HP-ZFR-MN |
|---|
| Protocol | QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; |
|---|
| PPPoE; 802.1x; SNMP; Bonjour | IPC- 4MP IR Dome WizMind Network Camera,NTSC ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; HDBW7442HN-ZFR-MN |
|---|
| Genetec; P2P;RTMP | PFA773 Sun Shade |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M.) |
|---|
| PFB211W | Wall Mount |
|---|
| Storage | FTP; Micro SD card (256 G); NAS; SFTP Accessories (Optional) PFA152-E Pole Mount IE: IE9 and later |
|---|
| Browser | Chrome: Chrome 42 and later PFA101 Mount Adapter Firefox: Firefox 48.0.2 and later |
|---|
| PFB300C | Ceiling Mount |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Phone | IOS, Android Accessories Optional: CE-LVD: EN62368-1,EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional) |
|---|
| PFA773 | PFB211W PFA152-E |
|---|
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) Audio Interface: 1/1 channel In/Out |
|---|
| PFA101 | PFB300C |
|---|
| 警報輸入 | 3 channel In: 5mA 5V DC |
|---|
| 警報輸出 | 2 channel Out: 1000mA 30V DC/500mA 50V AC |
|---|
| 供電 | 12V DC/24V AC/PoE+ (802.3at); ePoE Basic power consumption: 5.4W (12V DC); 5W(24V AC); 4.9W (PoE) Max. power consumption (Max. stream + intelligent |
|---|
| 功耗 | function + IR LED + focus): 16.7W (12V DC);15.7W(24V AC); 15.6W (PoE) Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE) |
|---|
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
|---|

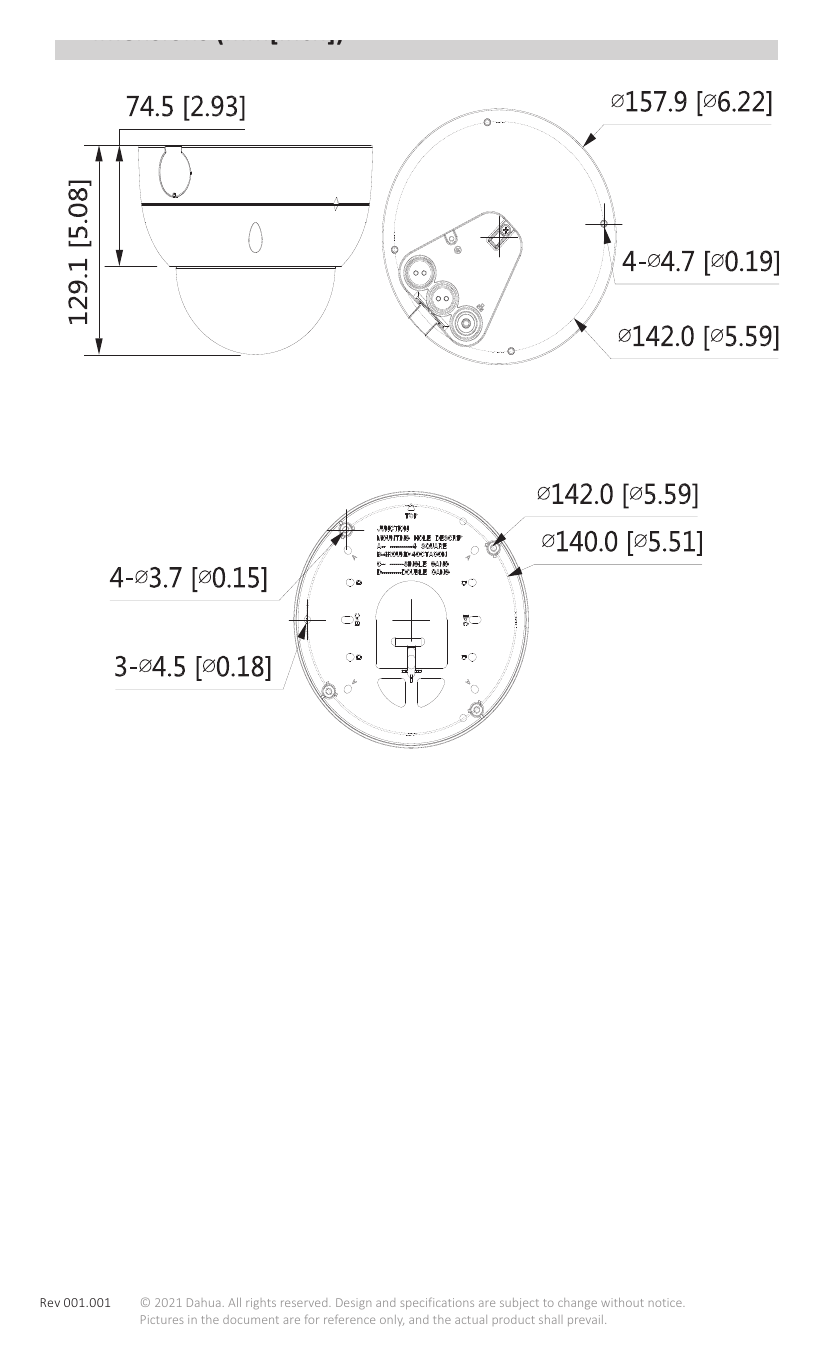

| 儲存環境 | –40°C to +60°C –40°F to +140°F) IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
