DAHUA DH-IPC-HFW2231T-ZASVFAS CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HFW2231T-ZASVFAS DH-IPC-HFW2231T-ZAS/VFAS
Brand: Dahua
SKU: DH-IPC-HFW2231T-ZASVFAS

產品簡介

Dahua DH-IPC-HFW2231T-ZASVFAS 為DH-IPC-HFW2231T-ZAS/VFAS，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HFW2231T-ZASVFAS 香港價格連安裝報價。

Camera：Day/Night Auto(ICR) / Color / B/W
影像感測器：1/2.8” 2Megapixel progressive CMOS BLC Mode BLC / HLC / WDR(
Effective Pixels：1920(H) x1080(V)
White Balance：Auto/Natural/Street Lamp/Outdoor/Manual
RAM/ROM：256MB/32MB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DH-IPC-HFW2231T-ZASVFAS Dahua DH-IPC-HFW2231T-ZAS/VFAS 產品圖片

詳細規格

Camera	Day/Night Auto(ICR) / Color / B/W
影像感測器	1/2.8” 2Megapixel progressive CMOS BLC Mode BLC / HLC / WDR(120dB)
Effective Pixels	1920(H) x1080(V)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
RAM/ROM	256MB/32MB
Gain Control	Auto/Manual
Scanning System	Progressive
Noise Reduction	3D DNR
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Motion Detection	Off / On (4 Zone, Rectangle) 0.006Lux/F1.4 0.005Lux/F1.2( Color,1/3s,30IRE)
Minimum Illumination	Region of Interest Off / On (4 Zone) 0.05Lux/F1.4 0.04Lux/F1.2( Color,1/30s,30IRE) 0Lux/F1.4(IR on) Electronic Image N/A
S/N Ratio	More than50dB Stabilization(EIS)
IR Distance	Distance up to 60m(197ft) Smart IR Support
IR On/Off Control	Auto/ Manual Digital Zoom 16x
IR LEDs	4 Flip 0°/90°/180°/270°
鏡頭	Mirror Off / On
鏡頭類型	Electronic Privacy Masking Off / On (4 Area, Rectangle)
Mount Type	Board-in Audio
焦距	2.7mm~13.5mm Compression G.711a/ G.711Mu/ AAC/ G.726
Max. Aperture	F1.4 Network
Angle of View	H:106°~29°, V:57°~17° Ethernet RJ-45 (10/100Base-T) HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
Focus Control	Motorized(-ZAS), Manual(-VFAS) FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
Close Focus Distance	0.3m TLS; SNMP
DORI Distance	W 46m(150ft) 18m(59ft) 9m(30ft) 5m(16ft) Streaming Method Unicast / Multicast
T	153m(502ft) 61m(200ft) 31m(102ft) 15m(49ft) Max. User Access 10 Users / 20 Users NAS
PTZ	Edge Storage Local PC for instant recording Micro SD Card 128GB
Pan/Tilt Range	Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Web Viewer	IE, Chrome, Firefox, Safari Intelligent Video Analysis
Management Software	Smart PSS, DSS, DMSS Motion detection, Video tampering , Scene changing
Event Trigger	(Sobatage), Network disconnection , IP address conflict, Smart Phone IOS, Android Illegal Access,Storage anomaly Certifications
IVS	Tripwire, Intrusion CE (EN 60950:2000)
Video	Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B
Compression	H.265/H.264H/MJPEG(Sub Stream)
Smart Codec	Support H.265+/H.264+
Video Interface	N/A
Streaming Capability	2 Streams Audio Interface 1/1 channel In/Out 1080P(1920×1080)/1.3M(1280×960)/ RS485 N/A
解像度	720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)	1 channel In: 5mA 5VDC Alarm
Main Stream: 1080P (1 ~ 25/30fps)	1 channel Out: 300mA 12VDC Frame Rate
Sub Stream: D1(1 ~ 25/30fps)	Electrical
碼率控制	CBR/VBR Power Supply DC12V,PoE+ (IEEE 802.3at)(Class 4)
功耗	<14W(-ZAS), <12W(-VFAS) www.dahuasecurity.com
Environmental	Accessories
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional:
儲存環境	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
防護等級	IP67
Vandal Resistance	IK10(Optional)
PFA130-E	PFA152-E
Construction	Junction Box Pole Mount
Casing	Metal

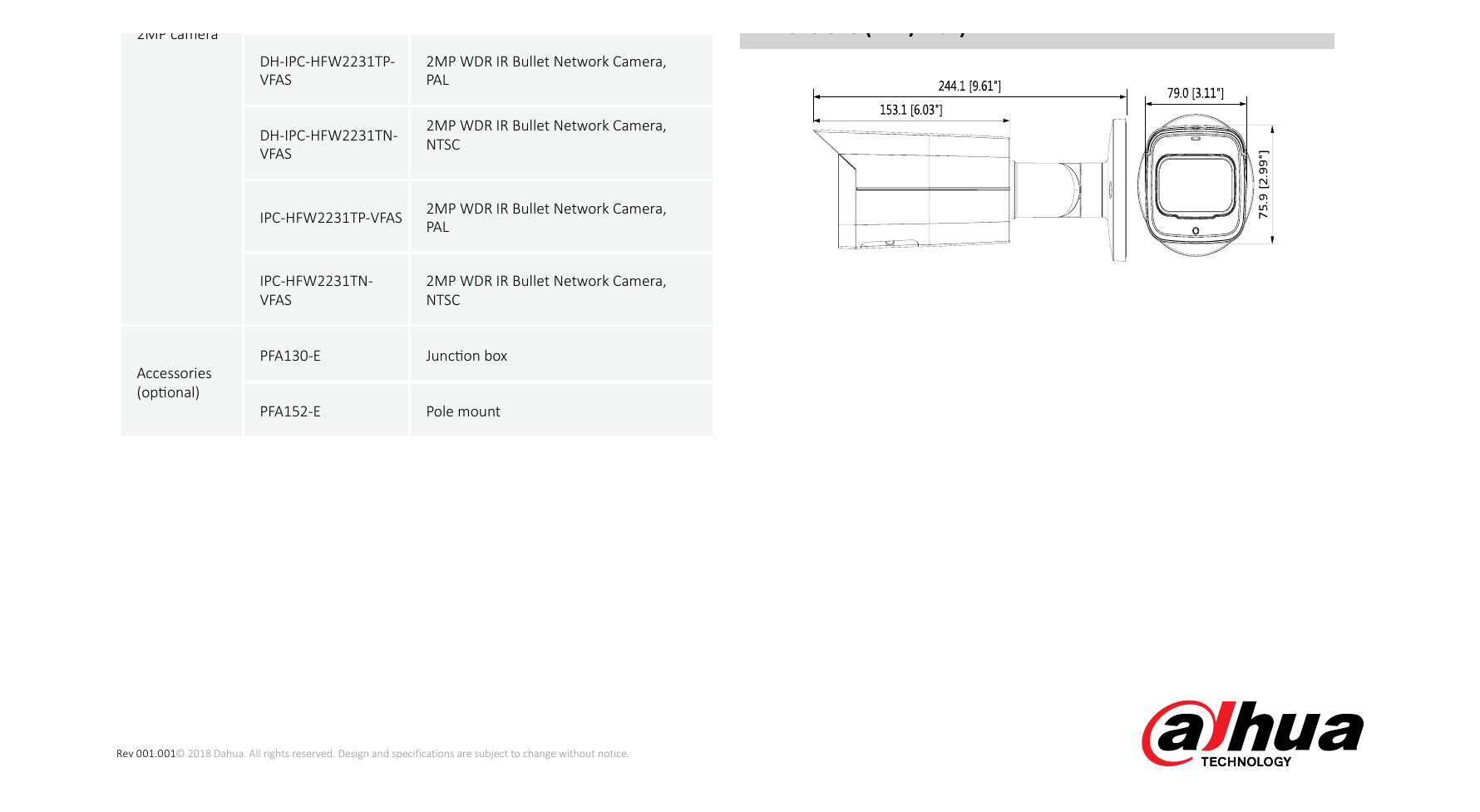

尺寸	244.1mm×79mm×75.9mm (9.61”×3.11”×2.99”)
淨重	0.815kg (1.80lb) Juncon Mount Pole Mount
毛重	1.08kg (2.38lb) Ordering Information
類型	Part Number Description
DH-IPC-HFW2231TP-	2MP WDR IR Bullet Network Camera,
ZAS	PAL
DH-IPC-HFW2231TN-	2MP WDR IR Bullet Network Camera,
IPC-HFW2231TN-ZAS	NTSC 2MP camera Dimensions (mm/inch)
VFAS	PAL 2MP WDR IR Bullet Network Camera, DH-IPC-HFW2231TN- NTSC VFAS 2MP WDR IR Bullet Network Camera, IPC-HFW2231TP-VFAS PAL
IPC-HFW2231TN-	2MP WDR IR Bullet Network Camera,
PFA152-E	Pole mount www.dahuasecurity.com
