| Basic | VLAN Function Port-based VLAN |
|---|
| 交換容量 | 40 Gbps IEEE 802.3x Flow Control Yes |
|---|
| 包轉發率 | 29.76 Mpps DHCP Function DHCP Client Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE) Equipment Management Web management |
|---|
| Description of Function Slots | Port 17-20: 4 × SFP 1000 Mbps (uplink) |
|---|
| PoE Power | Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W General |
|---|
| Layer | Layer 2 Gross Weight 2.1 kg (4.62 lb) |
|---|
| Management Type | Yes 311.5 mm × 251.5 mm × 128.5 mm (12.26" × 9.90" × Packaging Dimensions 5.06") (L × W × H) |
|---|
| 工作溫度 | –30 °C to +65 °C (-22 °F to +149 °F) |
|---|
| Casing Material | Sheet metal |
|---|
| 工作濕度 | 5%–95% (RH), non-condensing |
|---|
| 安裝 | Desktop mount; DIN-Rail mount |
|---|
| 功耗 | Idling: ≤5 W ; Full load: 212 W |
|---|
| 供電 | External power supply: 53 VDC, 3.77 A Transmission Performance: |
|---|
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m |
|---|
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV Cable(m) Load Capacity(W) Bandwidth(Mbps) |
|---|

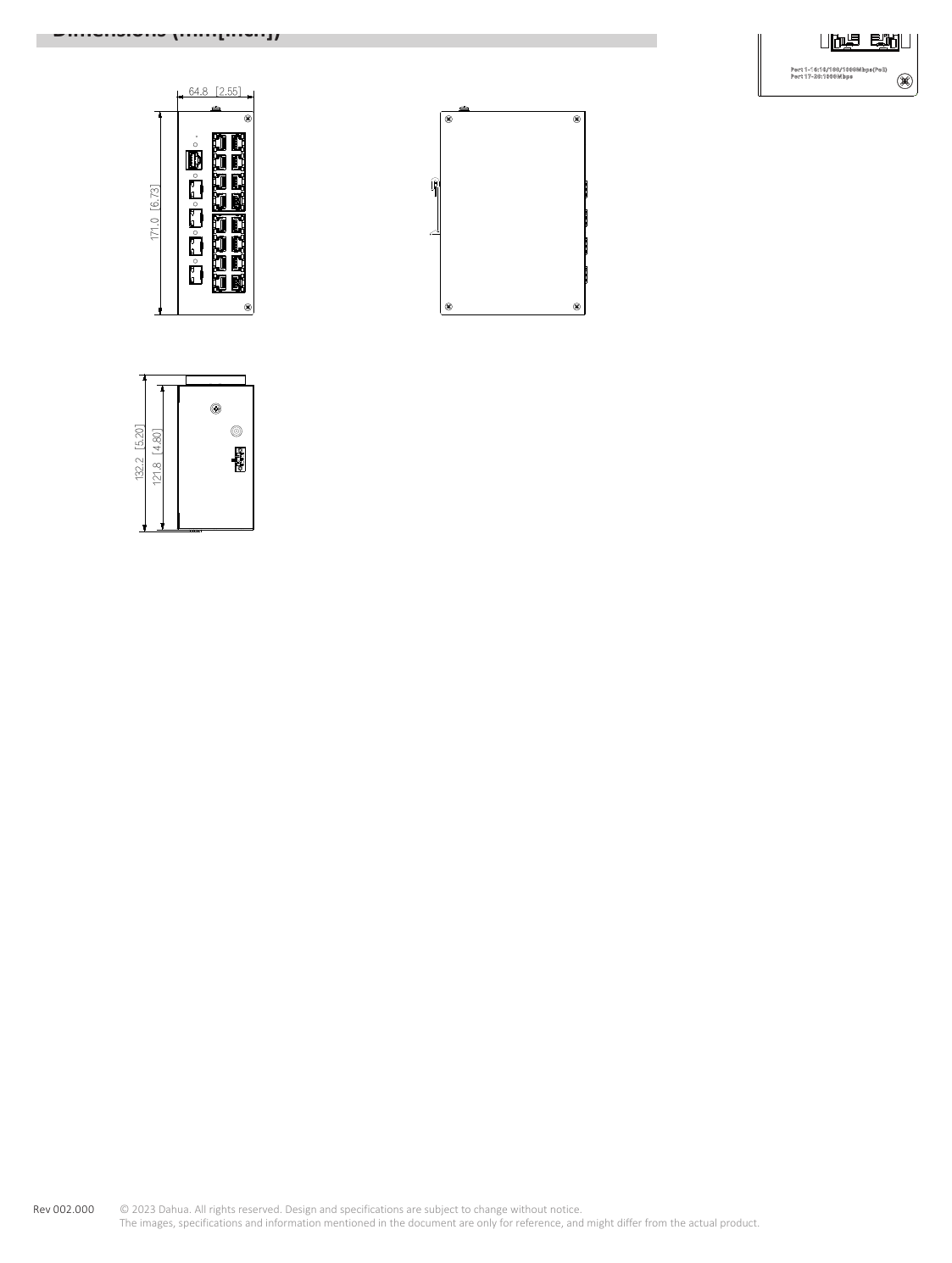

| 淨重 | 0.99 kg (2.18 lb) IEEE802.3bt 90 W 171 mm × 123.4 mm × 64.8 mm (6.73" × 4.86" × 2.55") |
|---|
| Product Dimensions | (L × W × H) 100 71.3 1000 150 62 10 |
|---|
| Included Power Adapter | Yes 200 51 10 |
|---|
| PoE | Yes 250 40 10 |
|---|
| Ethernet Port | 16 Hi-PoE 60 W |
|---|
| Ethernet Port Speed | 10/100/1000 Mbps 100 53 1000 |
|---|
| Optical Port Uplink Speed | 1 Gbps 150 50 10 |
|---|
| Reset Button | 1 200 47 10 |
|---|
| 儲存溫度 | –40 °C to +70 °C (–40 °F to +158 °F) 250 37 10 |
|---|
| Storage Humidity | 5%–95% (RH), non-condensing IEEE802.3at 30 W 100 25.5 1000 Performance |
|---|
| Packet Buffer Size | 4 Mbit 150 25.5 10 |
|---|
| Jumbo Frame | 15K Byte 200 25.5 10 |
|---|
| MAC Table Size | 8K 250 25.5 10 Note: Data from this table was collected by Dahua test lab and is for reference only . |
|---|
| VLAN Number | 32 The actual transmission distance may vary due to power consumption of connected devices or the cable type and status. |
|---|
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab Feature |
|---|
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt PoE Power Consumption Yes Management |
|---|
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
|---|
| Long Distance PoE | Yes Transmission www.dahuasecurity.com |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
