| Radar | Third stream: 50 Hz: 25 fps (1920 × 1080); 25 fps (1280 × 960); |
|---|
| Max. Target Number | 64 25 fps (1280 × 720) 60 Hz: 30 fps (1920 × 1080); 30 fps (1280 × 960); |
|---|
| Distance | 60 m (196.85 ft) 30 fps (1280 × 720) |
|---|
| Horizontal: 120° | Video Bit Rate H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps Angle Pitch angle: 26° |
|---|
| Distance Accuracy | ±0.5 m (1.64 ft) Day/Night Color/B/W |
|---|
| Angle Accuracy | ±1° BLC Yes |
|---|
| Max. Detection Speed | 43.2 km/h, continuous trace HLC Yes |
|---|
| Min. Detection Speed | 0.72 km/h, continuous trace WDR 102 dB |
|---|
| Modulation Method | FMCW White Balance Auto/manual/natural/street lamp/outdoor |
|---|
| Scan Frequency | 20 Hz Gain Control Auto/manual |
|---|
| Working Frequency | 60 GHz–61 GHz Noise Reduction 2D NR/3D NR |
|---|
| Supported Target Type | Human; vehicle Default Bit Rate with Default 6144 Kbps (2560 × 1440) Resolution |
|---|
| Transmission Power | < 20 dBm (100mW) |
|---|
| 除霧 | Yes |
|---|
| Camera | Image Stabilization Yes |
|---|
| 影像感測器 | 1/1.8" CMOS |
|---|
| LDC | Yes |
|---|
| Pixel | 4MP Alarm |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) Network disconnection; IP conflict; illegal access; Alarm Event intrusion; tripwire |
|---|
| Electronic Shutter Speed | 1/3 s–1/100000 s |
|---|
| 警報輸入 | 3 0.0036 Lux @F1.6 (Color); 0.0036 Lux @F1.6 (B/W); Min. Illumination 0 Lux (IR on) |
|---|
| 警報輸出 | 2, support alarm linkage |
|---|
| S/N Ratio | > 56 dB |
|---|
| Alarm Linkage | Snapshot/SD card recording/email |
|---|
| Illumination Distance | 35 m (114.83 ft) (0°, visible human body shape) |
|---|
| Illuminator Number | 4 |
|---|
| Network Port | 1 (RJ-45; support 10 M/100 M network data) IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; |
|---|
| 鏡頭類型 | Fixed-focal ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; Network Protocol DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; |
|---|
| 鏡頭接口 | M16 802.1x |
|---|
| 焦距 | 2.8 mm (equivalent focal distance of 1/2.7") Interoperability ONVIF (Profile S); CGI; Imou |
|---|
| Max. Aperture | F1.6 Storage NAS; FTP; Micro SD card (128 G) |
|---|
| Field of View | Horizontal: 104°; Vertical: 55°; Diagonal: 121° IE 7 and later |
|---|
| Browser | Chrome 45 and earlier |
|---|
| Iris Control | Fixed Firefox 46 and earlier |
|---|
| Close Focus Distance | 0.2 m User/Host 20 (total bandwidth: 64 M) |
|---|
| Video | SDK and API Yes |
|---|
| 視頻壓縮 | H.265; H.264; H.264H; H.264B Management Software DSS |
|---|
| Smart Codec | H.264/H.265 Function |
|---|
| 主碼流 | Image Setting Brightness; Contrast; Sharpness; Saturation; Gamma 50 Hz: 25 fps (2560 × 1440); 25 fps (2048 × 1536); 25 fps (1920 × 1080); 25 fps (1280 × 960); 25 fps OSD Overlay Time; channel; location; custom (1280 × 720) |
|---|
| Video Frame Rate | Manual record; scheduled record; alarm record; 60 Hz: 30 fps (2560 × 1440); 30 fps (2048 × 1536); Record Mode 30 fps (1920 × 1080); 30 fps (1280 × 960); 30 fps Record priority: Manual > external > schedule (1280 × 720) |
|---|
| Default | Support one-click restoring www.dahuasecurity.com |
|---|
| User Management | Up to 20 Bracket PFA154 Username and password; MAC address; HTTPS; IEEE Power Adapter Optional Security 802.1x ; network access control |
|---|
| Region Management | Pre-warning zone; alarm zone; shield zone Certifications CE: EN 50385; EN 55032; EN 55024; EN 55035; EN |
|---|
| Target Filtering | Yes, human/vehicle |
|---|
| Certifications | 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 62368-1 Yes, 0–40 km/h |
|---|
| Speed Filtering | (Objects whose speeds are not within the target speed range will not trigger alarms) Recognition Sensitivity Yes, human, vehicle recognition sensitivity configurable Ordering Information Yes, target track displayed on live view, including Type Model Description Radar Structuring distance, angle, speed and type |
|---|
| Visual Radar | DH-PFR5QI-E60 4MP IR 60 m visual radar |
|---|
| Radar OSD Detection Overlay | Yes, 8 positions |
|---|
| Accessory | PFA154 Pole mount bracket |
|---|
| Device Attitude | Yes, display pitch angle and roll angle Yes, draw on live view to define actual radar Protection Zone Mapping |
|---|
| protection zone | Accessory |
|---|
| Auto Calibration | Yes, automatically calibrate radar and image |
|---|
| Manual Calibration | Yes, manually calibrate radar and image Power |
|---|
| Operating Voltage | 12V DC (±30%); PoE (802.3at) PFA154 Pole mount bracket |
|---|
| 供電 | 12V DC/POE |
|---|
| Basic power consumption: 10W; Max. power | Pole Mount |
|---|
| 功耗 | Wall Mount consumption: 22W |
|---|
| Port | Terminal block Port |
|---|
| SD Card | Yes Yes. Network indicator (yellow); operation indicator Indicator Light (red and green); power indicator (green) |
|---|
| 音訊輸入 | 1 × 3.5 mm port |
|---|
| 音訊輸出 | 1 × 3.5 mm port |
|---|
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|

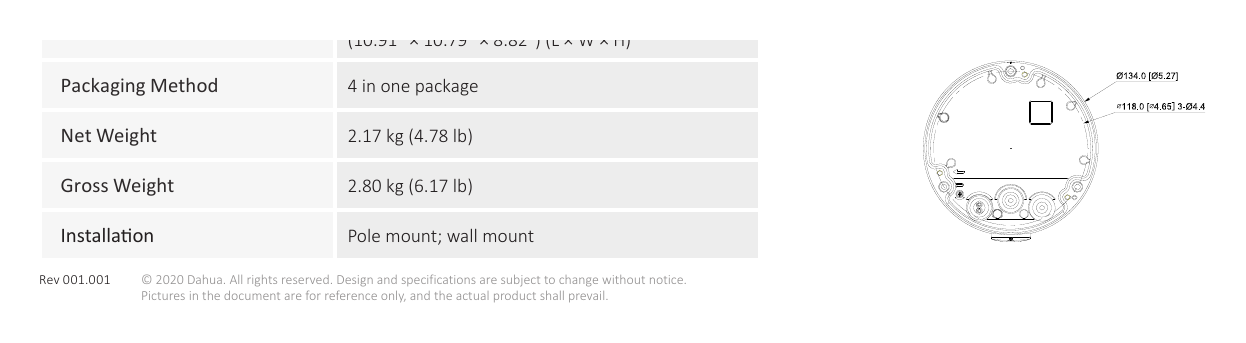

| 工作溫度 | –40°C to +70°C (–40°F to +158°F) Dimensions (mm [inch]) |
|---|
| 工作濕度 | ≤ 95% |
|---|
| 防護等級 | IP66 Structure |
|---|
| Casing | Metal + plastic 160.0 mm × 194.4 mm × 160.0 mm Product Dimensions (6.30" × 7.65" × 6.30") (L × W × H) 277.0 mm × 274.0 mm × 224.0 mm Packaging Dimensions (10.91" × 10.79" × 8.82") (L × W × H) |
|---|
| Packaging Method | 4 in one package |
|---|
| 淨重 | 2.17 kg (4.78 lb) |
|---|
| 毛重 | 2.80 kg (6.17 lb) |
|---|
| 安裝 | Pole mount; wall mount |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
