| Camera | 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × Resolution 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × |
|---|
| 影像感測器 | 1/2.7” 8Megapixel progressive CMOS 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) |
|---|
| ROM | 128 MB Bit Rate Control CBR/VBR |
|---|
| RAM | 256 MB H.264: 32 kbps–8192 kbps Video Bit Rate H.265: 12 kbps–8192 kbps |
|---|
| Scanning System | Progressive |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
|---|
| BLC | Yes |
|---|
| 最低照度 | 0.008 Lux@F1.5 |
|---|
| HLC | Yes |
|---|
| S/N Ratio | >56 dB |
|---|
| WDR | 120 dB |
|---|
| Illumination Distance | 60 m (196.85 ft) Auto/natural/street lamp/outdoor/manual/regional White Balance |
|---|
| Illuminator On/Off Control | Auto/Manual custom |
|---|
| Gain Control | Auto/Manual |
|---|
| Illuminator Number | 4 (IR LED) |
|---|
| Noise Reduction | 3D NR Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Motion Detection OFF/ON (4 areas, rectangular) Rotation: 0°–360° |
|---|
| Region of Interest(RoI) | Yes (4 areas) |
|---|
| Smart Illumination | Yes |
|---|
| 鏡頭類型 | Motorized vari-focal 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 |
|---|
| Mount Type | φ14 Image Rotation resolution and lower.) |
|---|
| 焦距 | 2.7 mm–13.5 mm Mirror Yes |
|---|
| Max. Aperture | F1.5 Privacy Masking 4 areas Horizontal: 113°–31° |
|---|
| Field of View | Vertical: 58°–17° Audio Compression G.711a; G.711Mu; G.726 Diagonal: 138°–36° Alarm |
|---|
| 光圈類型 | Fixed No SD card; SD card full; SD card error; network |
|---|
| Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) disconnection; IP conflict; motion detection; video Alarm Event tampering; tripwire; intrusion; illegal access; voltage |
|---|
| 鏡頭 | Detect Observe Recognize Identify detection; audio detection; safety exception; local alarm 85.3 m 34.1 m 17 m 8.5 m Network |
|---|
| DORI Distance | (279.9 ft) (111.9 ft) (55.8 ft) (27.9 ft) |
|---|
| Network | RJ-45 (10/100 Base-T) 280 m 112 m 56 m 28 m (918.6 ft) (367.5 ft) (183.7 ft) (91.9 ft) |
|---|
| SDK and API | Yes |
|---|
| 智能事件 | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; |
|---|
| IVS | Tripwire; intrusion Cyber Security IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted |
|---|
| Video | execution; trusted upgrade H.265; H.264; H.264B; MJPEG (only supported by the IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; |
|---|
| 視頻壓縮 | Protocol RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; sub stream) NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Interoperability Genetec Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) |
|---|
| 用戶管理 | 20 Video Frame Rate Sub stream: 704 × 576 (1 fps–25 fps) Storage FTP; SFTP; Micro SD Card (support max. 256 GB); NAS 704 × 480 (1 fps–30 fps) |
|---|
| Browser | Chrome |
|---|
| Stream Capability | 2 streams Firefox www.dahuasecurity.com |
|---|
| Management Software | Smart PSS; DSS; DMSS Accessories |
|---|
| Mobile Phone | IOS; Android Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU |
|---|
| FCC: 47 CFR FCC Part 15, Subpart B | PFA130-E PFA152-E PFM321D UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Junction Box Pole Mount DC12V1A Power Adapter Port |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| LR1002-1ET/1EC | PFM900-E PFM114 |
|---|
| Single-port Long | Integrated Mount TLC SD Card |
|---|
| 警報輸入 | 1 channel In: 5mA 5V DC |
|---|
| Reach Ethernet over | �ester Coax Extender |
|---|
| 警報輸出 | 1 channel Out: 300mA 12V DC Power |
|---|
| Pole Mount | Junction Mount |
|---|
| 供電 | 12V DC/PoE (802.3af) PFA130-E+PFA152-E PFA130-E |
|---|
| 功耗 | < 9.9W |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH |
|---|
| 儲存溫度 | –40°C to +60°C (–40°F to +140°F) |
|---|
| 防護等級 | IP67 |
|---|

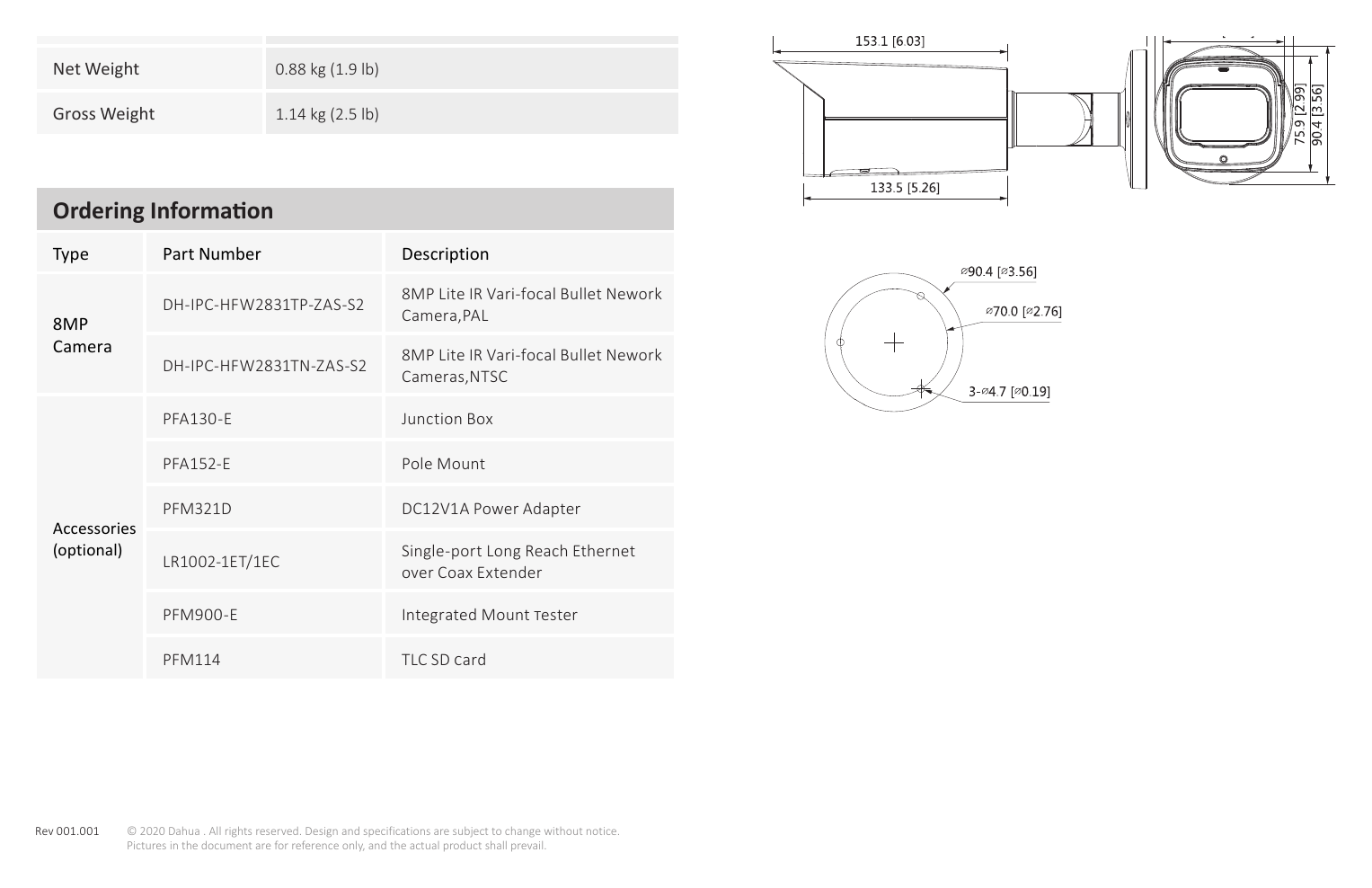

| Structure | Dimensions (mm[inch]) |
|---|
| Casing | Metal |
|---|
| 尺寸 | 244.1 mm × Φ90.4 mm (9.61" × Φ3.26") |
|---|
| 淨重 | 0.88 kg (1.9 lb) |
|---|
| 毛重 | 1.14 kg (2.5 lb) Ordering Information |
|---|
| 類型 | Part Number Description 8MP Lite IR Vari-focal Bullet Nework DH-IPC-HFW2831TP-ZAS-S2 Camera,PAL 8MP |
|---|
| PFA130-E | Junction Box |
|---|
| PFA152-E | Pole Mount |
|---|
| PFM321D | DC12V1A Power Adapter Accessories (optional) Single-port Long Reach Ethernet LR1002-1ET/1EC over Coax Extender |
|---|
| PFM900-E | Integrated Mount �ester |
|---|
| PFM114 | TLC SD �ard |
|---|
| Rev 001.001 | © 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
