DAHUA DH-IPC-HFW4230M-4G-AS-I2 CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HFW4230M-4G-AS-I2 DH-IPC-HFW4230M-4G-AS-I2
Brand: Dahua
SKU: DH-IPC-HFW4230M-4G-AS-I2

產品簡介

Dahua DH-IPC-HFW4230M-4G-AS-I2 為DH-IPC-HFW4230M-4G-AS-I2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HFW4230M-4G-AS-I2 香港價格連安裝報價。

碼率控制：CBR/VBR
Bit Rate：H.264: 32~10240Kbps H.265: 12~6400Kbps
影像感測器：1/2.9” 2Megapixel progressive scan CMOS
Day/Night：Auto ICR
Effective Pixels )：1920(H) x 1080(V)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DH-IPC-HFW4230M-4G-AS-I2 Dahua DH-IPC-HFW4230M-4G-AS-I2 產品圖片

詳細規格

碼率控制	CBR/VBR
Bit Rate	H.264: 32~10240Kbps H.265: 12~6400Kbps
影像感測器	1/2.9” 2Megapixel progressive scan CMOS
Day/Night	Auto ICR
Effective Pixels )	1920(H) x 1080(V)
BLC Mode	BLC / HLC / DWDR
RAM/ROM	256MB/32MB
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Scanning System	Progressive
Gain Control	Auto 0.04Lux/F2.0( Color,1/3s,30IRE)
Minimum Illumination	0.22Lux/F2.0( Color,1/30s,30IRE) Noise Reduction 3D DNR 0Lux/F2.0(IR on)
Motion Detection	Off / On (4 Zone, Rectangle)
S/N Ratio	More than 56dB
Region of Interest	Off / On (4 Zone)
IR Distance	Distance up tp 40m (131.2ft) Electronic Image Stabilization N/A (EIS)
IR On/Off Control	Auto/ Manual
Smart IR	Support
IR LEDs	2
除霧	N/A
Digital Zoom	N/A
鏡頭類型	Fixed
Flip	0°/90°/180°/270°
Mount Type	M12
Mirror	Off / On
焦距	3.6mm (6mm optional)
Privacy Masking	Off / On (4 Area, Rectangle)
Max. Aperture	F2.0
Angle of View	H: 82.5° (51.5°), V: 44° (29.5°) Compression G.711a/ G.711Mu/ AAC/ G.726
Optical Zoom	N/A Network
Focus Control	Fixed Ethernet RJ-45 (10/100Base-T) 0.9m(2m) Mobile Communication 4G Close Focus Distance 29.5ft(6.56ft) Model 1:
鏡頭	Detect Observe Recognize TDD-LTE:Band38/39/40/41 FDD-LTE:Band1/3/5/8
DORI 偵測距離	53m(174ft) 21m(69ft) 10m(33ft) WCDMA:Band1/8 3.6mm
Distance	TD-SCDMA:Band34/39 80m(262ft) 32m(105ft) 16m(52ft) Operating band EVDO/CDMA1X:BC0 6mm GSM:Band3/8 Model 2: Pan/Tilt/Rotation FDD-LTE:Band1/2/3/4/5/7/8/20 UMTS:Band1/2/5/8
Pan/Tilt/Rotation Range	N/A GSM:850/900/1800/1900
Intelligence	HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
Protocol	FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;
Motion detection, Video tampering , Scene	NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS
Event Trigger	changing, Network disconnection , IP address
conflict, Illegal Access,Storage anomaly	Interoperability ONVIF Profile S&G, API
IVS	Tripwire, Intrusion
Streaming Method	Unicast / Multicast
Max. User Access	10 Users /20 Users
Compression	H.265/H.264H/MJPEG(Sub Stream) NAS
Edge Storage	Local PC for instant recording
Smart Codec	Support H.265/H.264 Mirco SD card 256GB
Web Viewer	IE, Chrome, Firefox, Safari
Streaming Capability	2 Streams
Management Software	Smart PSS, DSS, DMSS Motion detection, Video tampering , Scene
解像度	changing, Network disconnection , IP address
Smart Phone	IOS, Android conflict, Illegal Access,Storage anomaly www.dahuasecurity.com
Certifications	Ordering Information CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive Type Part Number Description Certifications 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B	DH-IPCHFW4320MP-4G-AS- 2MP 4G IR Bullet Network Camera, PAL I2-0360B
接口	DH-IPCHFW4320MN-4G-AS- 2MP 4G IR Bullet Network Camera, NTSC I2-0360B
Audio Interface	1/1 channel In/Out IPC-HFW4320MP-4G-AS-I2- 2MP 4G IR Bullet Network Camera, PAL 2 channel In: 500mA 5VDC 0360B Alarm 2 channel Out: 300mA 12VDC IPC-HFW4320MN-4G-AS-I2- 2MP 4G IR Bullet Network Camera, NTSC 0360B
Electrical	2MP camera DH-IPCHFW4320MP-4G-AS- 2MP 4G IR Bullet Network Camera, PAL I2-0600B
供電	DC12V±30% DH-IPCHFW4320MN-4G-AS- 2MP 4G IR Bullet Network Camera, NTSC I2-0600B 3.6W, 9.5W(IR on);
功耗	6W(4G on, IR off) IPC-HFW4320MP-4G-AS-I2- 2MP 4G IR Bullet Network Camera, PAL 0600B
Environmental	IPC-HFW4320MN-4G-AS-I2- 2MP 4G IR Bullet Network Camera, NTSC 0600B -30° C ~ +60° C (-22° F ~ +140° F) /
Operating Conditions	Less than 95% RH PFB121W Wall mount bracket Accessories
-30° C ~ +60° C (-22° F ~ +140° F) /	(optional)
儲存環境	Less than 95% RH PFB110W Ceiling mount bracket
防護等級	IP67 Accessories
Vandal Resistance	N/A Optional: Construction
Casing	Metal+Plastic
尺寸	194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)
PFB110W	PFB121W
Ceiling mount	Wall mount
淨重	0.7kg (1.54lb)
毛重	0.8kg (1.76lb) Electrical
Rev 001.001	© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

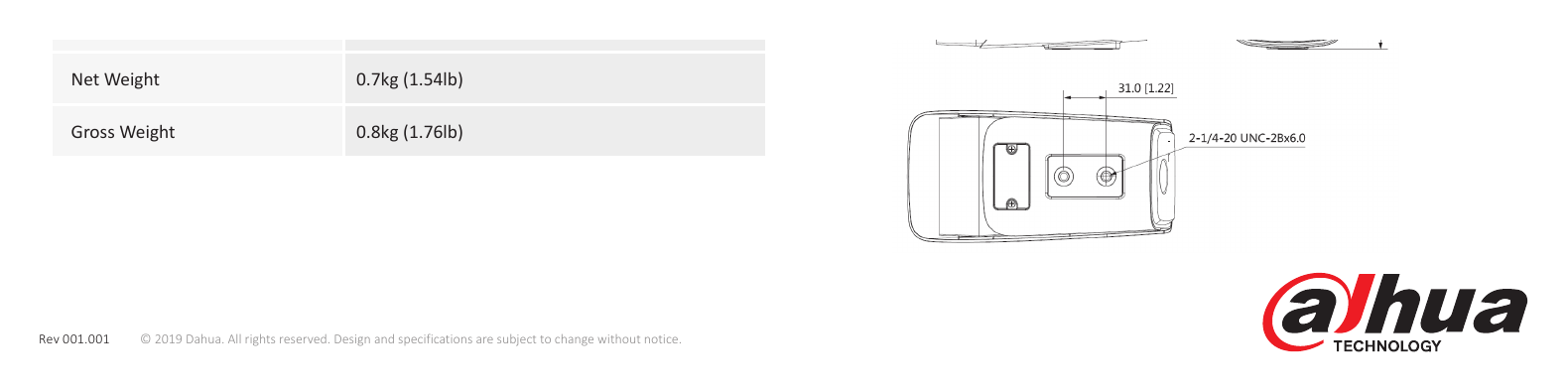

外形尺寸

194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DH-IPC-HFW4230M-4G-AS-I2 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DH-IPC-HFW4230M-4G-AS-I2 Dahua DH-IPC-HFW4230M-4G-AS-I2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

常見問題

DH-IPC-HFW4230M-4G-AS-I2 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DH-IPC-HFW4230M-4G-AS-I2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

DH-IPC-HFW4230M-4G-AS-I2 定 PSDW82442M-A270-D440-S3 邊個好？

兩者主要規格分別：Scanning System方面，DH-IPC-HFW4230M-4G-AS-I2 係 Progressive，PSDW82442M-A270-D440-S3 係 Progressive Scan 5；Gain Control方面，DH-IPC-HFW4230M-4G-AS-I2 係 Auto 0.04Lux/F2.0( Color,1/3s,30IRE)，PSDW82442M-A270-D440-S3 係 Manual;Auto；S/N Ratio方面，DH-IPC-HFW4230M-4G-AS-I2 係 More than 56dB，PSDW82442M-A270-D440-S3 係 >56 dB。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PSDW82442M-A270-D440-S3 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
