DAHUA DH-IPC-HFW4431D-AS CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HFW4431D-AS DH-IPC-HFW4431D-AS
Brand: Dahua
SKU: DH-IPC-HFW4431D-AS

產品簡介

Dahua DH-IPC-HFW4431D-AS 為DH-IPC-HFW4431D-AS，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HFW4431D-AS 香港價格連安裝報價。

Camera：Gain Control Auto/Manual
影像感測器：1/3” 4Megapixel progressive scan CMOS Noise Reduction 3D DNR
Effective Pixels：2688(H)x1520(V) Motion Detetion Off / On (4 Zone, Rectangle)
RAM/ROM：512MB/32MB
Region of Interest：Off / On (4 Zone)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DH-IPC-HFW4431D-AS Dahua DH-IPC-HFW4431D-AS 產品圖片

詳細規格

Camera	Gain Control Auto/Manual
影像感測器	1/3” 4Megapixel progressive scan CMOS Noise Reduction 3D DNR
Effective Pixels	2688(H)x1520(V) Motion Detetion Off / On (4 Zone, Rectangle)
RAM/ROM	512MB/32MB
Region of Interest	Off / On (4 Zone)
Scanning System	Progressive Electronic Image Stabilization N/A
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s (EIS) 0.08Lux/F2.0( Color,1/3s,30IRE) Smart IR Support
Minimum Illumination	0.3Lux/2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) Defog N/A
S/N Ratio	More than 50dB Digital Zoom 16x
IR Distance	Distance up tp 80m (262ft) Flip 0°/90°/180°/270°
IR On/Off Control	Auto/ Manual Mirror Off / On
IR LEDs	2 Privacy Masking Off / On (4 Area, Rectangle)
鏡頭	Audio
鏡頭類型	Fixed
Compression	G.711a/ G.711Mu/ AAC/ G.726
Mount Type	Board-in
焦距	3.6mm (6mm optional)
Ethernet	RJ-45 (10/100Base-T)
Max. Aperture	F2.0 (F2.0) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
Angle of View	H: 87° (55°), V: 48° (31°) FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
Optical Zoom	N/A IGMP; SNMP
Focus Control	Fixed Interoperability ONVIF, PSIA, CGI
Close Focus Distance	N/A Streaming Method Unicast / Multicast
DORI Distance	3.6 mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft) NAS 6.0 mm 117m(384ft) 47m(154ft) 23m(75ft) 12m(39ft) Edge Storage Local PC for instant recording Mirco SD card 128GB
Pan/Tilt/Rotation	Web Viewer IE, Chrome, Firefox, Safari
Pan/Tilt/Rotation Range	Pan:0˚~360˚; Tilt:0˚~87˚; Rotation:0˚~360˚
Management Software	Smart PSS, DSS, Easy4ip
Intelligence	Smart Phone IOS, Android
IVS	Tripwire, Intrusion, Object Abandoned/Missing Certifications Advanced Intelligent Functions Face Detection CE (EN 60950:2000)
Video	Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B
Streaming Capability	3 Streams
Video Interface	N/A 4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/
解像度	Audio Interface 1/1 channel In/Out 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
RS485	N/A Main Stream: 4M(1~25/30fps) 1 channel In: 5mA 5VDC Alarm
Frame Rate	Sub Stream: D1(1~25/30fps) 1 channel Out: 300mA 12VDC
Third Stream: 720P(1~25/30fps)	Electrical
碼率控制	CBR/VBR
供電	DC12V, PoE (802.3af)(Class 0) H.264: 24~10240Kbps Bit Rate
H.265: 14~6144Kbps	Power Consumption <7.5W
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB) www.dahuasecurity.com
Environmental	Accessories
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional:
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
防護等級	IP67
Vandal Resistance	N/A
Construction	PFA150 PFA135
Pole Mount	Junction Box
Casing	Metal

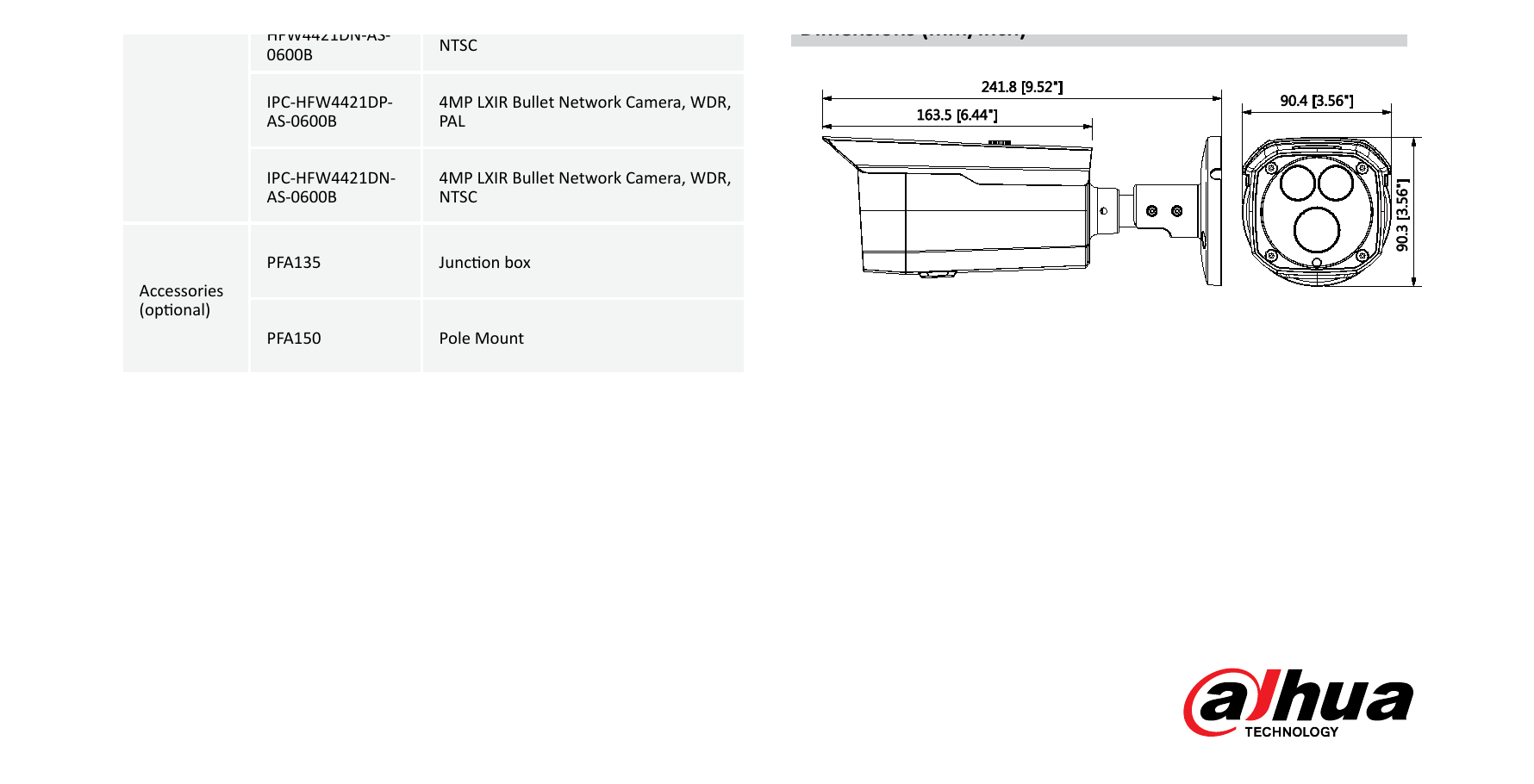

尺寸	241.8mm×90.4mm×90.3mm (9.52”×3.56”×3.56”)
淨重	0.61Kg (1.35lb)
毛重	0.8kg (1.77lb)
Juncon Mount	Pole Mount
PFA135	PFB135 + PFA150 Ordering Information
類型	Part Number Description DH-IPC- 4MP LXIR Bullet Network Camera, WDR, HFW4421DP-AS- PAL 0360B DH-IPC- 4MP LXIR Bullet Network Camera, WDR, HFW4421DN-AS- NTSC 0360B
IPC-HFW4421DP-	4MP LXIR Bullet Network Camera, WDR,
AS-0600B	PAL
IPC-HFW4421DN-	4MP LXIR Bullet Network Camera, WDR,
PFA150	Pole Mount www.dahuasecurity.com
