| Camera | BLC Mode BLC / HLC / WDR(120dB) |
|---|
| 影像感測器 | 1/3” 4Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 2688(H) x 1520(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 512MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.03Lux/F1.4 (Color,1/3s,30IRE) Electronic Image Stabilization |
|---|
| Minimum Illumination | 0.3Lux/F1.4 (Color,1/30s,30IRE) N/A (EIS) 0Lux/F1.4(IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | N/A |
|---|
| IR Distance | Distance up to 50m (164ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 4 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 2.7mm~12mm Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H: 100°~35°, V:54°~20° Ethernet RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | 4x HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; |
|---|
| Protocol | DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Focus Control | Motorized |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | 0.3m |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | Max. User Access 10 Users /20 Users |
|---|
| W | 68(223ft) 27m(89ft) 14m(46ft) 7m(23ft) Distance NAS |
|---|
| T | 192m(630ft) 77m(253ft) 39m(128ft) 19m(62ft) Edge Storage Local PC for instant recording Mirco SD card 128GB Pan/Tilt/Rotation |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
|---|
| Management Software | Smart PSS, DSS, Easy4ip Intelligence |
|---|
| Smart Phone | IOS, Android |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Certifications Advanced Intelligent Functions Face Detection CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Video | FCC: FCC Part 15 Subpart B |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| Streaming Capability | 3 Streams |
|---|
| Video Interface | 1 Port(For adjustment only) 4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ Audio Interface 1/1 channel In/Out Resolution 720P(1280×720)/D1(704×576/704×480)/ |
|---|
| VGA(640×480)/CIF(352×288/352×240) | RS485 N/A |
|---|
| Main Stream: 4M(1~25/30fps) | 2 channel In: 5mA 5VDC Alarm 1 channel Out: 300mA 12VDC |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) |
|---|
| Third Stream: 720P(1~25/30fps) | Electrical |
|---|
| 碼率控制 | CBR/VBR Power Supply DC12V, PoE (802.3af)(Class 0) |
|---|
| 功耗 | <11.5W |
|---|
| Bit Rate | H.264: 24~10240Kbps H.265: 14~9984Kbps www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| PFA121 | PFA152 |
|---|
| Casing | Metal Junction box Pole Mount |
|---|

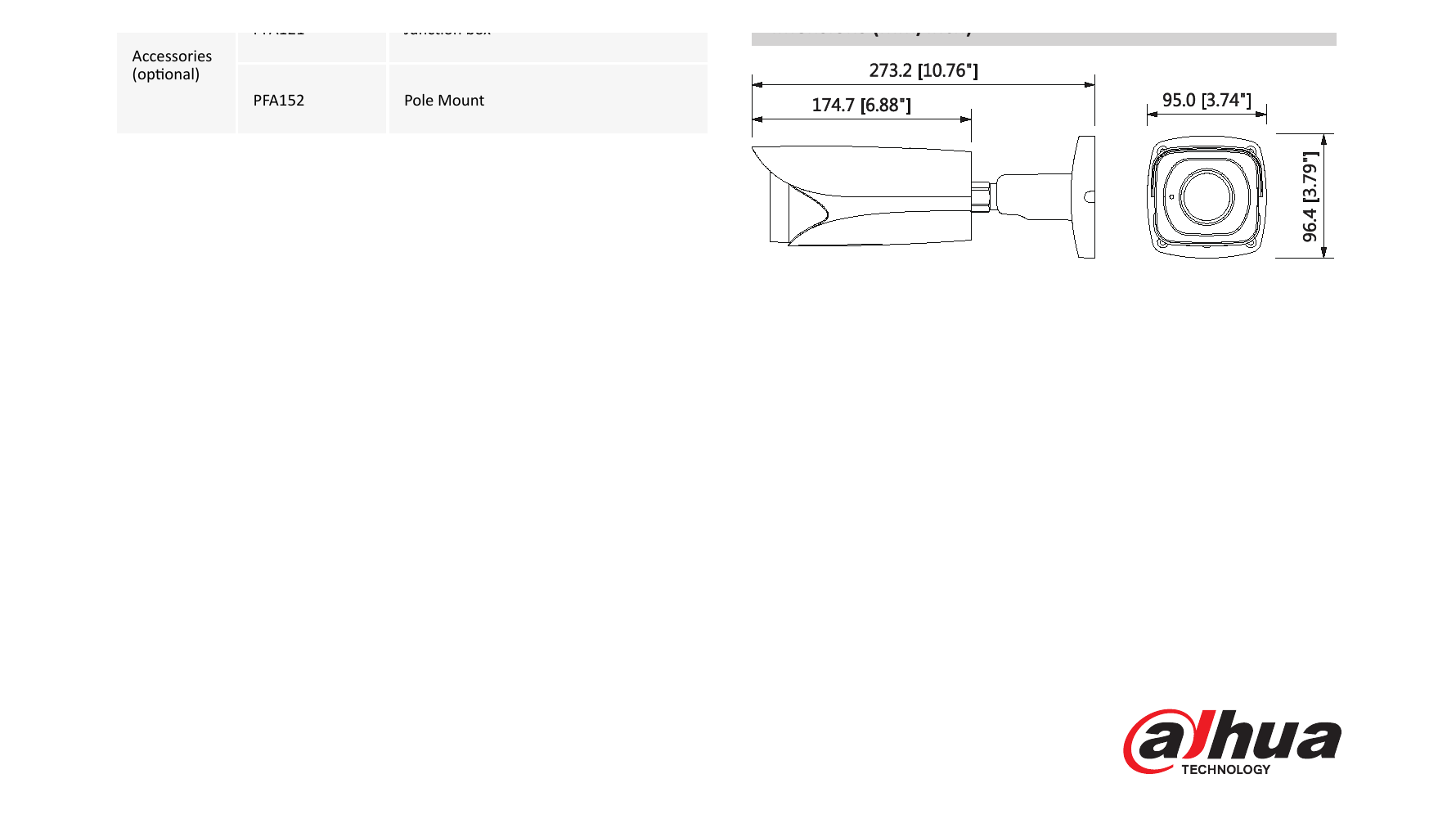

| 尺寸 | 273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”) |
|---|
| Juncon Mount | Pole Mount |
|---|
| 淨重 | 1.07Kg (2.36lb) |
|---|
| 毛重 | 1.4Kg (3.09lb) Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC- | 4MP WDR IR Bullet Network |
|---|
| HFW5431EP-Z | Camera,WDR,PAL |
|---|
| HFW5431EN-Z | Camera,WDR,NTSC 4MP camera 4MP WDR IR Bullet Network IPC-HFW5431EP-Z Camera,WDR,PAL 4MP WDR IR Bullet Network IPC-HFW5431EN-Z Camera,WDR,NTSC |
|---|
| PFA152 | Pole Mount www.dahuasecurity.com |
|---|
