| Camera | BLC Mode BLC / HLC / WDR(140dB)/ SSA |
|---|
| 影像感測器 | 1/2.8”3Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 2048(H)x1536(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.005Lux/F1.4 (Color,1/3s,30IRE) Electronic Image Stabilization |
|---|
| Minimum Illumination | 0.03Lux/F1.4 (Color,1/30s,30IRE) Support 0Lux/F1.4(IR on) (EIS) |
|---|
| S/N Ratio | More than 50dB Smart IR Support |
|---|
| IR Distance | Distance up to 50m(164ft) Defog Support |
|---|
| IR On/Off Control | Auto/ Manual Digital Zoom 16x |
|---|
| IR LEDs | 4 Flip 0°/90°/180°/270° |
|---|
| Mirror | Off / On |
|---|
| 鏡頭類型 | Motorized /Auto Iris(HALL) |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in Audio |
|---|
| 焦距 | 2.7~13.5mm motorized Compression G.711a/G.711Mu/AAC/ G.726 |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H: 101°~31°, V:54°~17° Ethernet RJ-45 (100/1000Base-T) |
|---|
| Optical Zoom | 5x HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Protocol | DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; |
|---|
| Focus Control | Motorized Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Close Focus Distance | 0.3m(0.98ft) Interoperability ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify Streaming Method Unicast / Multicast |
|---|
| Distance | W 54m(177ft) 22m(72ft) 11m(36ft) 5m(16ft) |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| T | 166m(545ft) 66m(217ft) 33m(108ft) 17m(56ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection, People Counting, Heat Map Certifications CE (EN 60950:2000) |
|---|
| Compression | H.265+/H.265/H.264+/H.264/MJPEG Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams 3M(2048x1536)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ Video Interface 1 Port(For adjustment only) Resolution D1(704×576/704x480)/ VGA(640x480)/ |
|---|
| CIF(352×288/342x240) | Audio Interface 1/1 channel In/Out |
|---|
| Main Stream: 3M(1~50/60fps) | RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 50/60fps) 2 channel In: 5mA 5VDC Alarm 1 channel Out: 1A 30VDC / 0.5A 50VAC Third Stream: 1080P(1~50/60fps) Electrical |
|---|
| 碼率控制 | CBR/VBR DC12V(AC24V/DC24V Optional),PoE+ (802.3at) Power Supply (Class 4) H.264: 24~ 10240Kbps Bit Rate |
|---|
| H.265: 14~ 9216Kbps | Power Consumption <13W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | 273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”) PFA121 PFA152 |
|---|
| 淨重 | 1.12Kg (2.47lb) Juncon box Pole mount |
|---|
| 毛重 | 1.52Kg (3.35lb) |
|---|
| Juncon Mount | Pole Mount |
|---|
| PFA121 | PFB121 + PFA152 Ordering Information |
|---|

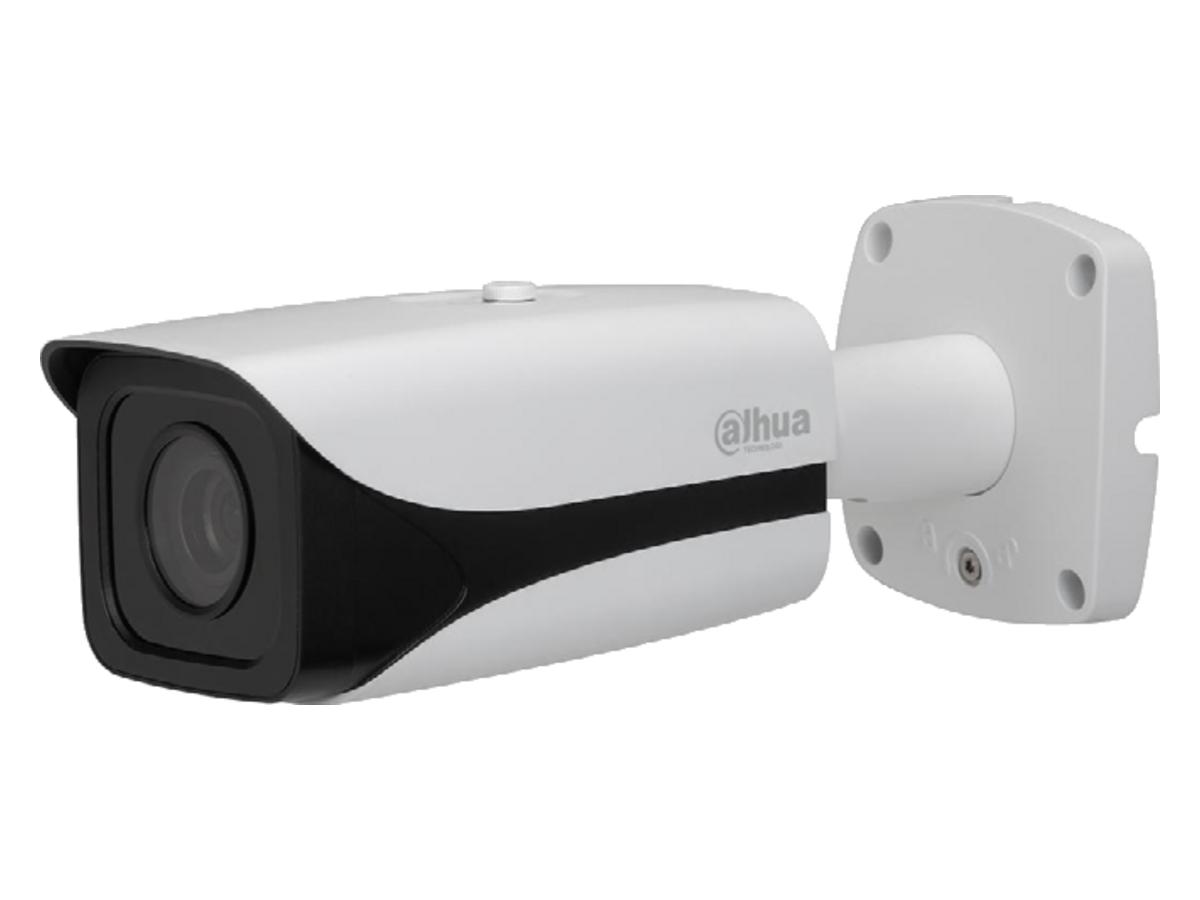

| 類型 | Part Number Description DH-IPC- 3MP WDR IR Bullet Network Camera,PAL HFW8331EP-Z DH-IPC- 3MP WDR IR Bullet Network Camera,NTSC HFW8331EN-Z 3MP camera |
|---|
| IPC-HFW8331EP-Z | 3MP WDR IR Bullet Network Camera,PAL |
|---|
| IPC-HFW8331EN-Z | 3MP WDR IR Bullet Network Camera,NTSC |
|---|
| PFA152 | Pole Mount Dimensions (mm/inch) www.dahuasecurity.com |
|---|
