| Camera | Bit Rate H.264: 24~ 10240Kbps H.265: 14~ 9216Kbps |
|---|
| 影像感測器 | 1/2.8”3Megapixel progressive scan CMOS Day/Night Auto(ICR) / Color / B/W |
|---|
| Effective Pixels | 2048(H)x1536(V) BLC Mode BLC / HLC / WDR(140dB)/ SSA |
|---|
| RAM/ROM | 1024MB/128MB White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Scanning System | Progressive Gain Control Auto/Manual |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Noise Reduction 3D DNR 0.005Lux/F1.4 (Color,1/3s,30IRE) 0.03Lux/F1.4 (Color,1/30s,30IRE) Motion Detection Off / On (4 Zone, Rectangle) Minimum Illumination 0Lux/F1.4(IR on) |
|---|
| Region of Interest | Off / On (4 Zone) |
|---|
| S/N Ratio | More than 50dB Electronic Image Stabilization Support |
|---|
| IR Distance | Distance up to 50m(164ft) (EIS) |
|---|
| IR On/Off Control | Auto/ Manual Smart IR Support |
|---|
| IR LEDs | 4 Defog Support |
|---|
| 鏡頭 | Digital Zoom 16x |
|---|
| 鏡頭類型 | Motorized /Auto Iris(HALL) Flip 0°/90°/180°/270° |
|---|
| Mount Type | Board-in Mirror Off / On |
|---|
| 焦距 | 2.7~13.5mm motorized Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| Max. Aperture | F1.4 Audio |
|---|
| Angle of View | H: 99 ˚~28 ˚ V:67 ˚ ~21 ˚ Compression G.711a/G.711Mu/AAC/ G.726 |
|---|
| Optical Zoom | 5x Network |
|---|
| Focus Control | Motorized Ethernet RJ-45 (100/1000Base-T) |
|---|
| Predictive Focus Algorithm | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; Support (PFA) FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S |
|---|
| Close Focus Distance | 0.3m(0.98ft) NMP;TLS |
|---|
| W | 54m(177ft) 22m(72ft) 11m(36ft) 5m(16ft) Distance |
|---|
| T | 166m(545ft) 66m(217ft) 33m(108ft) 17m(56ft) Streaming Method Unicast / Multicast |
|---|
| Pan/Tilt/Rotation | Max. User Access 10 Users/20 Users |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ NAS |
|---|
| Edge Storage | Local PC for instant recording Mirco SD card 128GB Intelligence Motion detection, Video tampering , Scene changing, Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Event Trigger | Network disconnection , IP address conflict, Illegal |
|---|
| Access,Storage anomaly | Management Software Smart PSS, DSS, DMSS |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection, People Counting, Heat Map Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Compression | H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream) FCC: FCC Part 15 Subpart B |
|---|
| Smart Codec | Support H.265+/H.264+ Interface |
|---|
| Streaming Capability | 3 Streams Video Interface 1 Port(For adjustment only) 3M(2048x1536)/ 1080P(1920×1080)/ Audio Interface 1/1 channel In/Out 1.3M(1280x960)/ 720P(1280x720)/ Resolution |
|---|
| D1(704×576/704x480)/ VGA(640x480)/ | RS485 N/A CIF(352×288/342x240) |
|---|
| Main Stream: 3M(1~50/60fps) | 2 channel In: 5mA 5VDC Alarm 1 channel Out: 1A 30VDC / 0.5A 50VAC |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 50/60fps) Third Stream: 1080P(1~50/60fps) www.dahuasecurity.com |
|---|
| Electrical | Accessories |
|---|
| 供電 | DC12V, PoE+(802.3at)(Class 4) Optional: |
|---|
| 功耗 | <13W Environmental |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 儲存環境 | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| PFA121 | PFA152-E LR1002 |
|---|
| Vandal Resistance | IK10 Junction box Pole Mount ePoE Over Coax Converter Construction |
|---|
| t | Pole Mount |
|---|
| Casing | Metal |
|---|

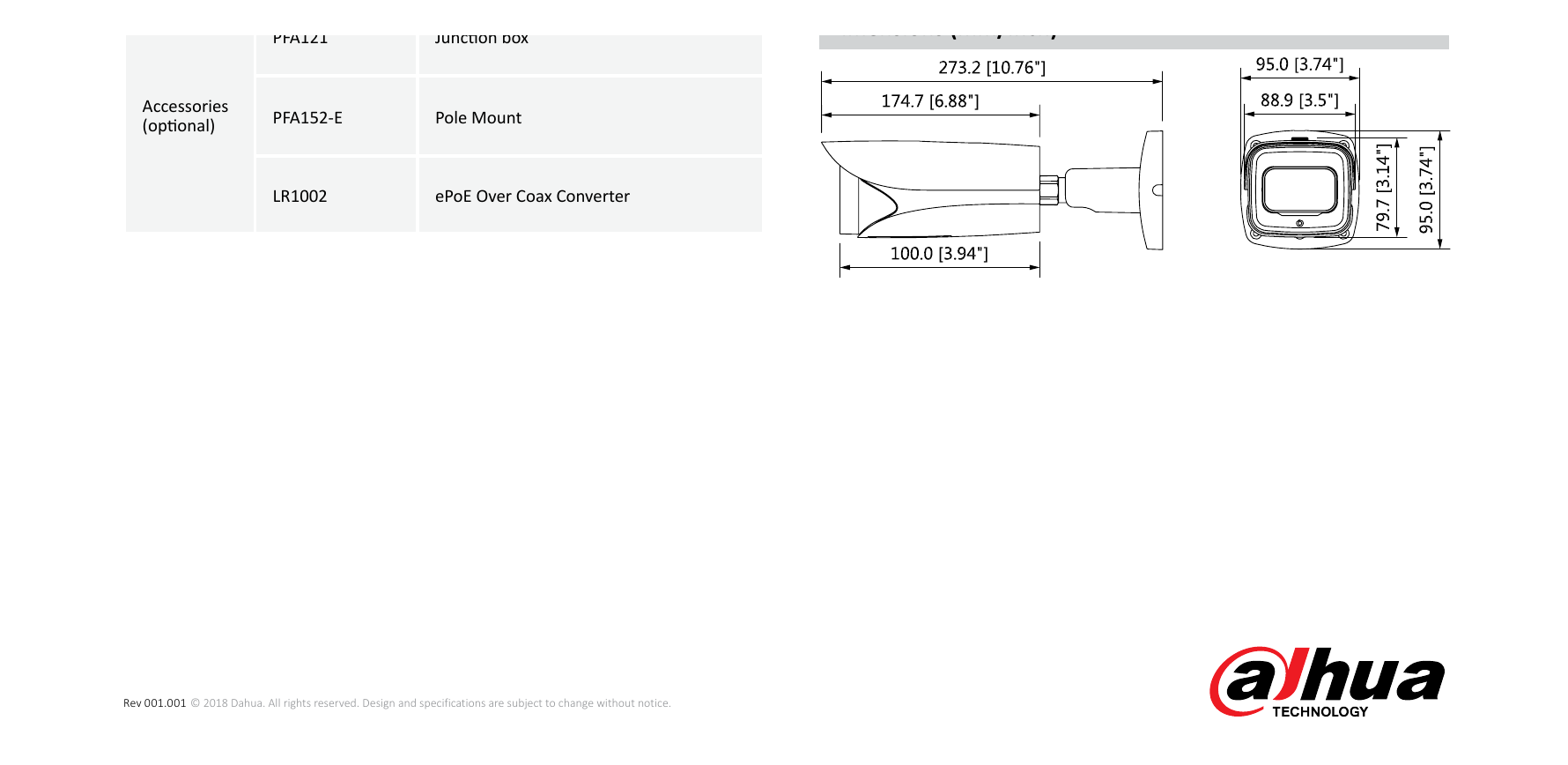

| 尺寸 | 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”) |
|---|
| 淨重 | 1.12Kg (2.47lb) |
|---|
| 毛重 | 1.52Kg (3.35lb) Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- 3MP WDR IR Bullet Network Camera,PAL HFW8331EP-ZE DH-IPC- 3MP WDR IR Bullet Network Camera,NTSC HFW8331EN-ZE 3MP camera IPC-HFW8331EP- 3MP WDR IR Bullet Network Camera,PAL IPC-HFW8331EN- 3MP WDR IR Bullet Network Camera,NTSC |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
