| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | Four 1/2.8” 2Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 4096(H)x1800(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.007Lux/F2.0( Color,1/3s,30IRE) Electronic Image |
|---|
| Minimum Illumination | 0.05Lux/F2.0( Color,1/30s,30IRE) N/A Stabilization(EIS) 0Lux/F2.0(IR on) |
|---|
| S/N Ratio | More than 50dB Smart IR Support |
|---|
| IR Distance | Distance up to 30m(98ft) Defog N/A |
|---|
| IR On/Off Control | Auto/ Manual Digital Zoom 16x |
|---|
| IR LEDs | 6 Flip N/A |
|---|
| Mirror | N/A |
|---|
| 鏡頭類型 | Fixed Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in Audio |
|---|
| 焦距 | 3.0mm Compression G.711a/G.711Mu/AAC/ G.726 |
|---|
| Max. Aperture | F2.0 Network |
|---|
| Angle of View | H: 180˚, V:80˚ Ethernet RJ-45 (100/1000Base-T) HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC |
|---|
| Optical Zoom | N/A |
|---|
| Protocol | P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour ;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Focus Control | Fixed |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | N/A |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Detect | Observe Recognize Identify |
|---|
| DORI Distance | Max. User Access 10 Users/20 Users 41m(135ft) 16m(53ft) 8m(26ft) 4m(13ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:±20˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Heat Map, E-PTZ Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Compression | H.265+/H.265/H.264+/H.264 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams Interface 4096×1800/3840×1680/2880×1264/ Video Interface 1 Port(For adjustment only) Resolution /1920x832/1280x560/1024X452 |
|---|
| Audio Interface | 1/1 channel In/Out Main Stream: 4096x1800 (1~25fps) |
|---|
| RS485 | N/A |
|---|
| Frame Rate | Sub Stream: 1024X452 (1 ~ 25/30fps) 2 channel In: 5mA 5VDC Alarm 2 channel Out: 1A 30VDC / 0.5A 50VAC Third Stream: 1920x832 (1 ~ 25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | AC24V, PoE+(802.3at)(Class 4) H.265: 9Kbps~ 9472Kbps Bit Rate H.264: 24Kbps~ 15616Kbps |
|---|
| 功耗 | <25.5W www.dahuasecurity.com Environmental |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 PFA140 PFB300C PFA120 PFB303W |
|---|
| Power box | Ceiling Mount Wall Mount |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| PFA150 | PFA151 PFB303S |
|---|

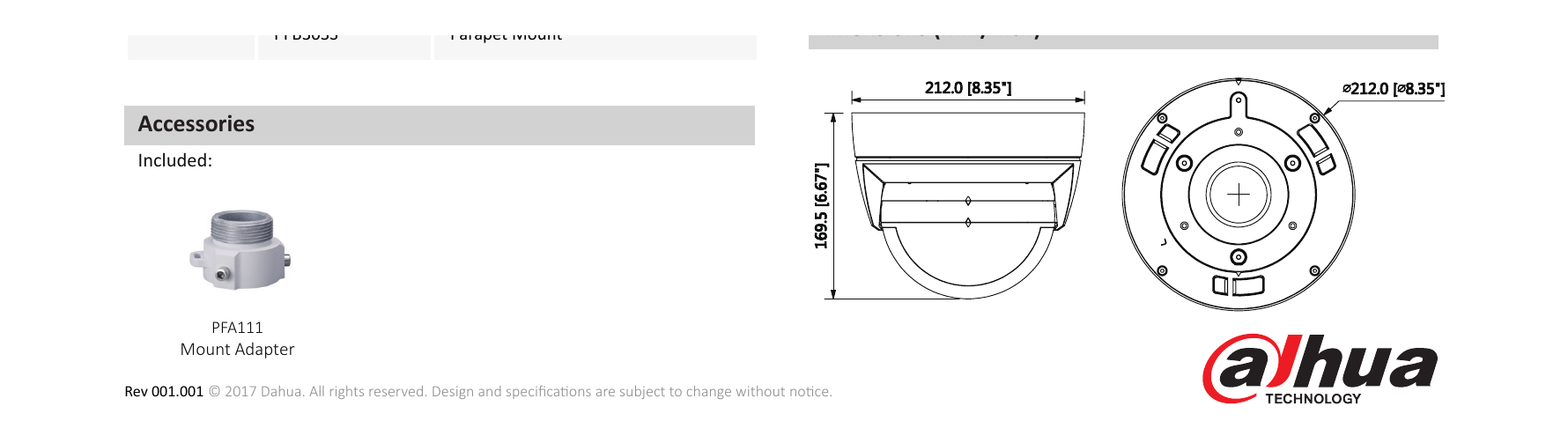

| 尺寸 | Φ212mm×169.5mm(Φ8.35”×6.67”) Pole Mount Corner Mount Parapet Mount |
|---|
| 淨重 | 3.6kg(7.9lb) |
|---|
| 毛重 | 4.6kg(10.1lb) |
|---|
| Ceiling Mount | t |
|---|
| Ordering Information | PF PF A120 |
|---|
| 類型 | Part Number Description |
|---|

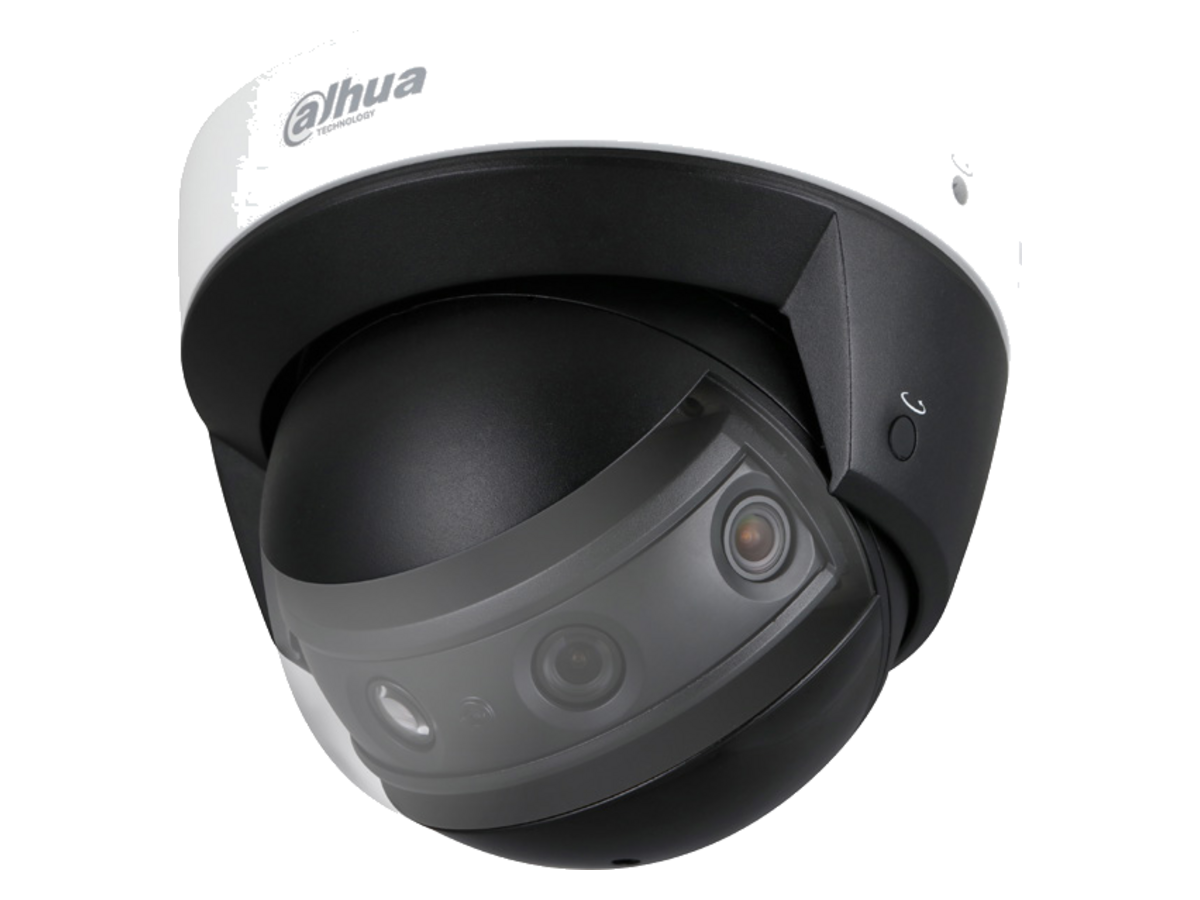

| DH-IPC- | 4x2MP Multi-Sensor Panoramic |
|---|
| PDBW8800P-A180 | Network IR Dome Camera, PAL |
|---|
| PDBW8800N-A180 | Network IR Dome Camera,NTSC 4x2MP |
|---|
| IPC- | 4x2MP Multi-Sensor Panoramic Power Box Mount Pole Mount |
|---|
| PFA111 | Mount Adapter (included) |
|---|
| PFA140 | Power Box |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFB300C | Ceiling Mount PF PFB303W + PFA151 PF |
|---|
| PFA120 | Junction Box Accessories (optional) PFB303W Wall Mount |
|---|
| PFA151 | Corner Mount |
|---|
| PFB303S | Parapet Mount Dimensions (mm/inch) Accessories Included: PFA111 Mount Adapter www.dahuasecurity.com |
|---|
