| Camera | Motion detection, Video tampering, Scene |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| 影像感測器 | 1/1.8" CMOS conflict, Illegal Access, Storage anomaly |
|---|
| Pixel | 2.42MP IVS Object Abandoned/Missing |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Artificial Intelligence |
|---|
| ROM | 8GB Support human body, human face, motor vehicle |
|---|
| Video Metadata | and non-motor vehicle image capture and attributes |
|---|
| RAM | 2GB extraction. |
|---|
| Electronic Shutter Speed | 1/3 s–1/100000 s Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering |
|---|
| Scanning System | Progressive Perimeter Protection false alarms caused by animals, rustling leaves, bright lights, etc. Color: 0.001Lux@F1.4 |
|---|
| 最低照度 | B/W: 0.0001Lux@F1.4 |
|---|
| Auto Tracking | Support 0Lux (IR light on) |
|---|
| Illumination Distance | 450 m (1476.38 ft) Video |
|---|
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR Compression H.265+/H.265/H.264+/H.264/MJPEG (sub stream) |
|---|
| Illuminator Number | 10 Streaming Capability 3 streams 1080P (1920 × 1080); 1.3 M (1280 x 960); 720P (1280 × |
|---|
| Wiper | Smart Wiper Resolution 720); D1 (704 × 576); CIF (352 × 288) |
|---|
| 鏡頭 | Main stream: 1080p/1.3 M/720p (1–50/60fps) |
|---|
| Frame Rate | Sub stream 1: D1/CIF (1–25/30fps) |
|---|
| 焦距 | 5.7 mm–275 mm Sub stream 2: 1080p/1.3 M/720p (1–25/30fps) |
|---|
| 碼率控制 | Variable Bit Rate/Constant Bit Rate |
|---|
| Max. Aperture | F1.4–F4.5 H.264: 32 kbps–8192 kbps |
|---|
| Field of View | H: 64.6°–1.5°; V: 35.6°–1.0°; D: 68.5°–2.0° Bit Rate H.265: 32 kbps–8192 kbps |
|---|
| Optical Zoom | 48x Day/Night Auto (ICR)/Color/B/W |
|---|
| Focus Control | Auto/Semi-Auto/Manual BLC Support |
|---|
| Close Focus Distance | 0.01 m–1.5 m (0.03 ft–4.92 ft) WDR 120 dB |
|---|
| Iris Control | Auto/Manual HLC Support |
|---|
| Detect | Observe Recognize Identify Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/ White Balance Natural light/Street lamp DORI Distance 2730.67 m 1092.27 m 546.13 m 273.07 m |
|---|
| Gain Control | Auto/Manual (8958.89 ft) (3583.56 ft) (1791.76 ft) (895.89 ft) |
|---|
| Noise Reduction | 2D/3D |
|---|
| Motion Detection | Support Pan: 0°–360° (endless) Pan/Tilt Range Tilt: -30°–+90° (auto-flip 180°) |
|---|
| 感興趣區域 ROI | Support Pan: 0.1°/s–200°/s |
|---|
| Manual Control Speed | Image Stabilization Electronic Tilt: 0.1°/s–120°/s |
|---|
| Pan: 240°/s | Defog Optical Preset Speed Tilt: 200°/s |
|---|
| Digital Zoom | 16x |
|---|
| 預置位 | 300 |
|---|
| Flip | 180° |
|---|
| Tour | 8 (up to 32 presets per tour) |
|---|
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
|---|
| Pattern | 5 |
|---|
| Scan | 5 Audio G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2- |
|---|
| Speed Adjustment | Support Compression Layer2 |
|---|
| 斷電記憶 | Support Network |
|---|
| Idle Motion | Preset/Tour/Pattern/Scanning (built-in RJ-45 port, support 10 M/100 M network Ethernet data) DH-SD Pelco-P/D (auto recognition) www.dahuasecurity.com IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; Ordering Information |
|---|
| Protocol | UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP Type Model Description |
|---|

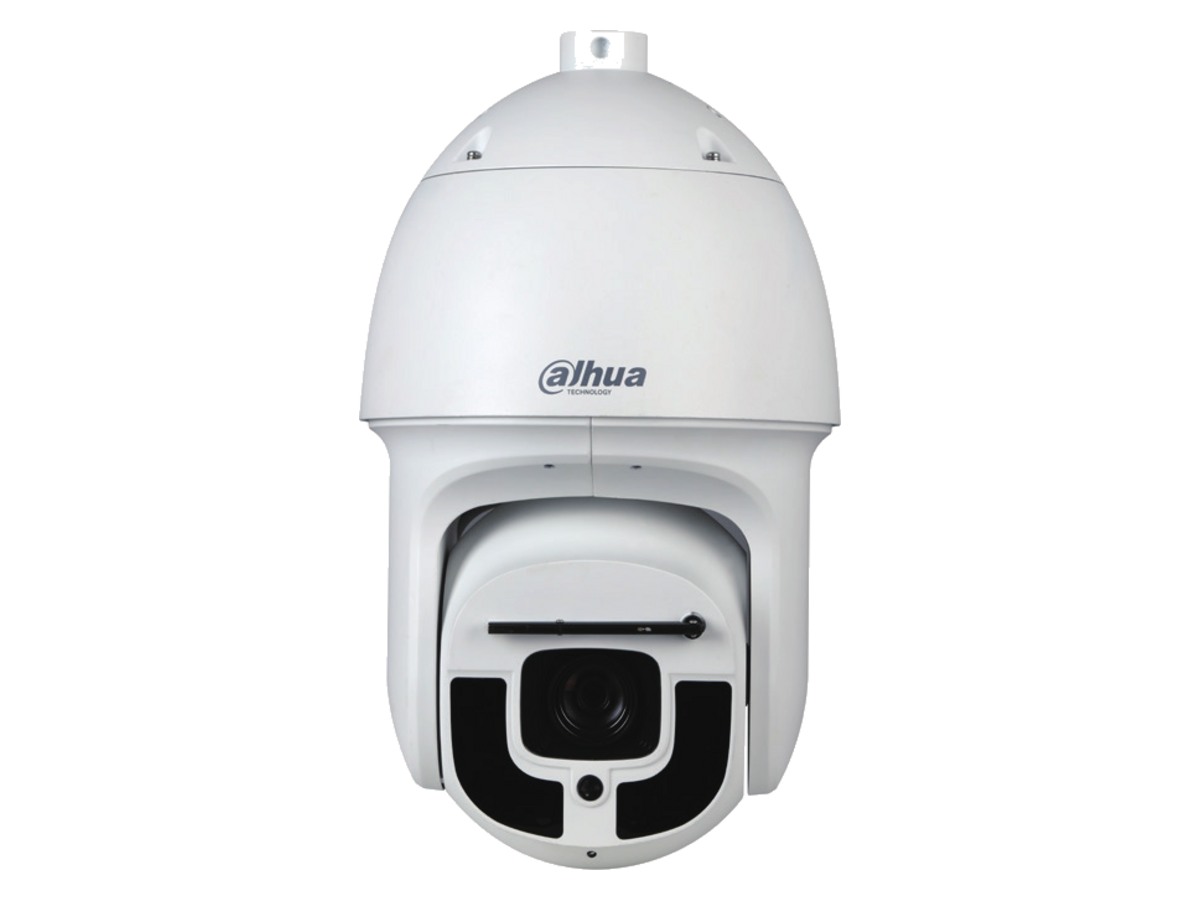

| Interoperability | ONVIF Profile S&G&T; CGI 2MP 48x Starlight+ IR WizMind Network PTZ DH-SD10A248WA-HNF Camera,WDR,PAL |
|---|
| Streaming Method | Unicast/Multicast DH-SD10A248WAN- 2MP 48x Starlight+ IR WizMind Network PTZ 2MP |
|---|
| WizMind | HNF Camera ,WDR,NTSC |
|---|
| 用戶管理 | 20 PTZ 2MP 48x Starlight+ IR WizMind Network PTZ |
|---|
| Storage | FTP; Micro SD card (256 G) 2MP 48x Starlight+ IR WizMind Network PTZ SD10A248WAN-HNF |
|---|
| IE7 and newer versions | Camera ,WDR,NTSC Chrome 45 and newer versions |
|---|
| Browser | PFB710W Wall Mount Bracket Firefox 52 and earlier versions |
|---|
| Safari (no version restrictions) | Accessories DC36V/2.23A Power Adapter |
|---|
| Management Software | Smart PSS, DSS, DMSS Mount Adapter |
|---|
| Mobile Phone | IOS/Android Accessories CE: EN55032/EN55024/EN50130-4 Certifications FCC: Part15 subpartB, ANSI C63.4-2014 Included: Port |
|---|
| Video | 1 port (BNC, 1.0V [p-p], 75Ω) |
|---|
| RS-485 | 1 |
|---|
| PFB710W | DC36V/2.23A Mount Adapter |
|---|
| Wall Mount Bracket | Power Adapter |
|---|
| 音訊輸入 | 1 |
|---|
| 音訊輸出 | 1 Wall Mount |
|---|
| Alarm I/O | 7/2 PFB710W Power DC36V/2.23A Power Supply Hi-PoE 19W Power Consumption 42W (PTZ Pan/Tilt, IR light on, wiper on) |
|---|
| 工作溫度 | -40°C to +70°C (-40°F to +158°F) |
|---|
| 工作濕度 | ≤95% |
|---|

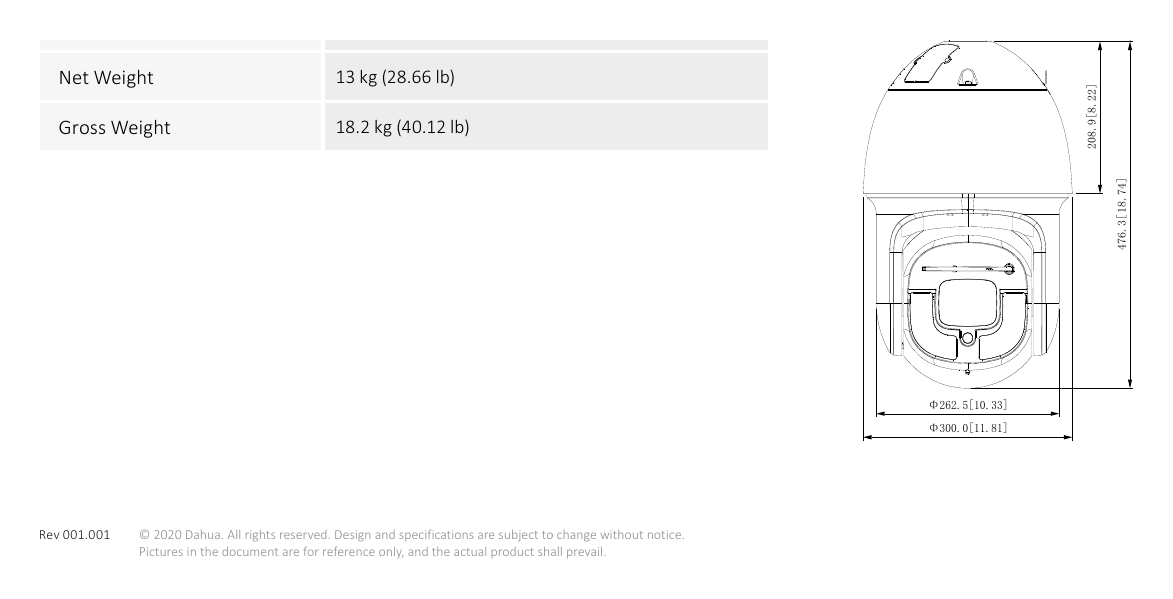

| 防護等級 | IP67; TVS 8000V lightning proof; Surge protection Dimensions (mm[inch]) Structure 51.0[2.01] Φ55.0[2.17] |
|---|
| Casing | Aluminium alloy ADC12 |
|---|
| 尺寸 | Φ300 mm × 527 mm (11.81" × 20.75") |
|---|
| 淨重 | 13 kg (28.66 lb) 208.9[8.22] |
|---|
| 毛重 | 18.2 kg (40.12 lb) 476.3[18.74] Φ262.5[10.33] Φ300.0[11.81] |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
