| Camera | Artificial Intelligence |
|---|
| 影像感測器 | 1/1.8" CMOS Support human, motor vehicle and non-motor Smart Capture vehicle image capture. |
|---|
| Pixel | 4MP Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) Perimeter Protection false alarms caused by animals, rustling leaves, bright lights, etc. |
|---|
| ROM | 4 GB |
|---|
| Auto Tracking | Support |
|---|
| RAM | 1 GB |
|---|
| Face Detection | Support |
|---|
| Electronic Shutter Speed | 1/1 s–1/30000 s |
|---|
| SMD Plus | Support |
|---|
| Scanning System | Progressive Color: 0.001 Lux@F1.4 |
|---|
| 最低照度 | B/W: 0.0001 Lux@F1.4 Compression H.265/H.265+/H.264+/H.264/MJPEG (Sub Stream) 0 Lux (IR on) |
|---|
| Streaming Capability | 3 streams |
|---|
| Illumination Distance | 250 m (820.21 ft) 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × |
|---|
| Illuminator On/Off Control | Auto/Manual/SmartIR Resolution 1080); 1.3M (1280×960); 720P (1280×720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
|---|
| Illuminator Number | 10 Main stream: 4M/3M (1–25/30 fps), 1080P/1.3M/720P (1–25/30 fps) |
|---|
| 鏡頭 | Frame Rate Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080P/1.3M/720P (1–25/30 fps), D1/ |
|---|
| 焦距 | 5.5 mm–220 mm CIF (1–25/30 fps) |
|---|
| Max. Aperture | F1.4–F4.5 Bit Rate Control Variable/Constant H.264: 32 Kbps–8192 Kbps |
|---|
| Field of View | H: 63.9°– 2.0°; V: 36°–1.3°; D: 68.18°–2.62° Bit Rate H.265: 32 Kbps–8192 Kbps |
|---|
| Optical Zoom | 40x |
|---|
| Day/Night | Support |
|---|
| Focus Control | Auto/Semi-Auto/Manual |
|---|
| BLC | Support |
|---|
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
|---|
| WDR | 120 dB |
|---|
| Iris Control | Auto/Manual |
|---|
| HLC | Support |
|---|
| Detect | Observe Recognize Identify Auto/Indoor/Outdoor/Tracking/Manual/Sodium White Balance |
|---|
| DORI Distance | lamp/Natural/Street lamp 3034.5 m 1204.2 m 606.9 m 303.4 m (9955.71 ft) (3950.79 ft) (1991.14 ft) (995.41 ft) Gain Control Auto/Manual |
|---|
| PTZ | Noise Reduction 2D/3D Pan: 0°–360° endless |
|---|
| Pan/Tilt Range | Motion Detection Support Tilt: -30°–+90°, auto flip 180° |
|---|
| Pan: 0.1°–180°/s | Region of Interest (RoI) Support Tilt: 0.1°–75°/s |
|---|
| 防抖 | Electronic |
|---|
| Preset Speed | Pan: 180°/s; Tilt: 75°/s |
|---|
| 除霧 | Electronic |
|---|
| Preset | 300 |
|---|
| Digital Zoom | 16x |
|---|
| Tour | 8 (up to 32 presets per tour) |
|---|
| Flip | 0°/180° |
|---|
| Pattern | 5 |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Scan | 5 |
|---|
| S/N Ratio | ≥ 55 dB |
|---|
| Speed Adjustment | Support |
|---|
| 斷電記憶 | Support G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; |
|---|
| Idle Motion | Preset/Tour/Pattern/Scanning Compression G.729; PCM; MPEG2-Layer2 |
|---|
| DH-SD | Network Pelco-P/D (auto recognition) |
|---|
| Ethernet | RJ-45 (10/100Base-T) IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; Motion detection, video tampering, scene changing, UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; |
|---|
| Event Trigger | network disconnection, IP address conflict, illegal Protocol RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; |
|---|
| access, and storage anomaly. | ARP; RTCP www.dahuasecurity.com |
|---|
| Interoperability | ONVIF Profile S&G&T; CGI Ordering Information |
|---|
| Streaming Method | Unicast/Multicast Type Part Number Description |
|---|
| 用戶管理 | 20 (Total bandwidth 48M) 4MP WizMind 4MP 40x Starlight IR PTZ WizMind DH-SD8A440XA-HNR-F |
|---|
| PTZ Camera | Network Camera, PAL |
|---|
| Storage | FTP; Micro SD card (256G); P2P |
|---|
| PFB306W | Wall Mount Bracket IE7 and later versions |
|---|
| Chrome 42 and earlier versions | DC 36V/2.23A Power Adapter Firefox 52 and earlier versions |
|---|
| Safari | PFA118 Mount Adapter Accessories |
|---|
| Management Software | Smart Player; Smart PSS; DSS; Easy4ip PFB710C Ceiling Mount Bracket |
|---|
| Mobile Phone | IOS; Android; Windows Phone PFA150 Pole Mount Bracket |
|---|
| Certification | PFB301S-E Plane Mount Bracket CE-LVD: EN 62368-1:2014+A11:2017 CE-EMC: EN 55032:2015,Class A/EN IEC 61000- 3-2:2019/EN 61000-3-3:2013+A1:2019/EN 55024:2010+A1:2015/EN 55035:2017/EN 50130- Accessories 4:2011+A1:2014 FCC: 47 CFR FCC Part15, Subpart B, Class A Included: |
|---|
| RS-485 | 1 |
|---|
| 音訊輸入 | 1 (LINE IN; bare wire) |
|---|
| 音訊輸出 | 1 (LINE OUT; bare wire) PFB306W DC 36V/2.23A |
|---|
| Wall Mount Bracket | Power Adapter |
|---|
| 雙向語音 | Support |
|---|
| Alarm I/O | 7/2 Optional: Capture; preset; tour; pattern; record; trigger digital output; audio; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
|---|
| PFA118 | PFB710C PFA150 |
|---|
| Optical Fiber | Support Mount Adapter Ceiling Mount Bracket Pole Mount Bracket DC 36V±25%/2.23A HI-PoE 18W 40W (IR light on) PFB301S-E |
|---|
| Environment | Plane Mount Bracket |
|---|
| 工作溫度 | -40°C to +70°C (-40°F to +158°F) |
|---|
| 工作濕度 | ≤ 95%RH IP67; TVS 8000V lightning protection; surge protection; voltage transient protection |
|---|
| Casing | Metal |
|---|

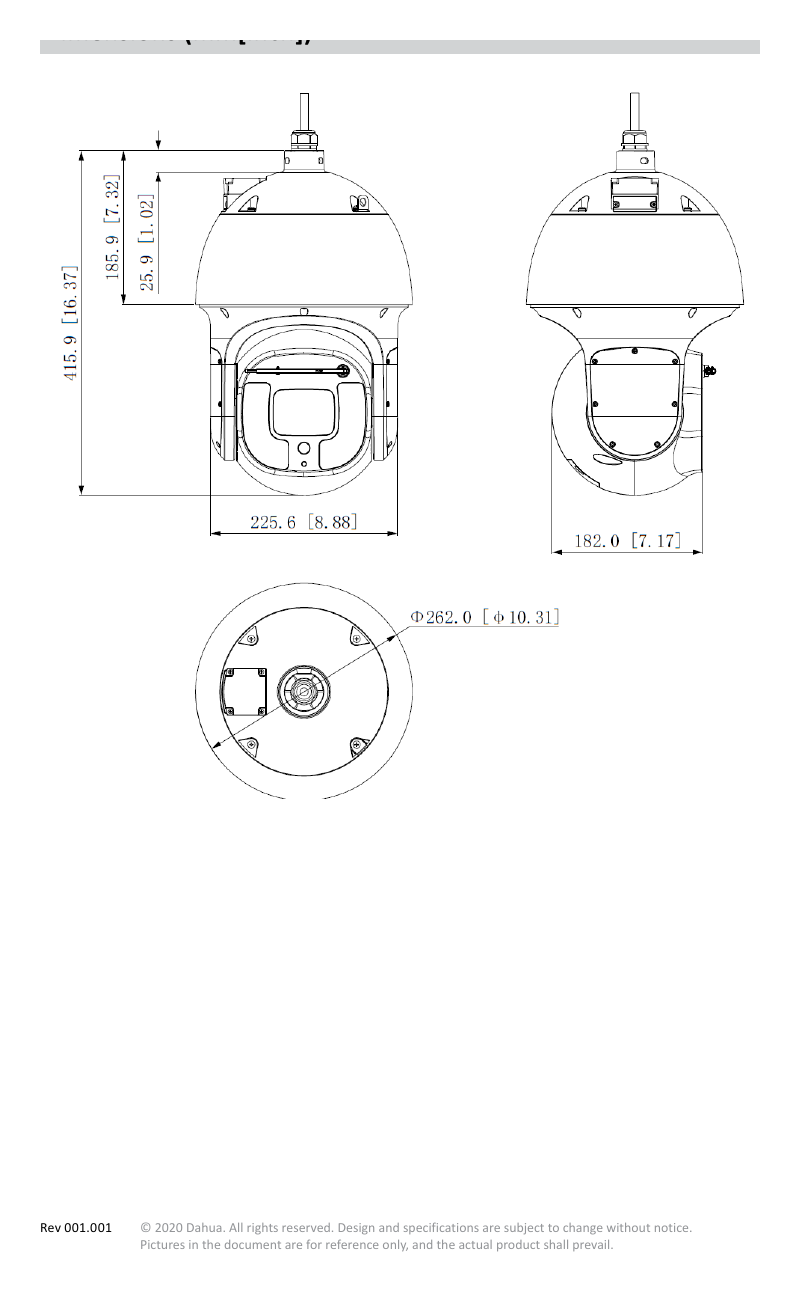

| 尺寸 | Φ262 mm × 415.6 mm (Φ10.31" × 16.36") |
|---|
| 淨重 | 8.5 kg (18.74 lb) |
|---|
| 毛重 | 13.1 kg (28.88 lb) www.dahuasecurity.com |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
